Tractor · 1987Unverified

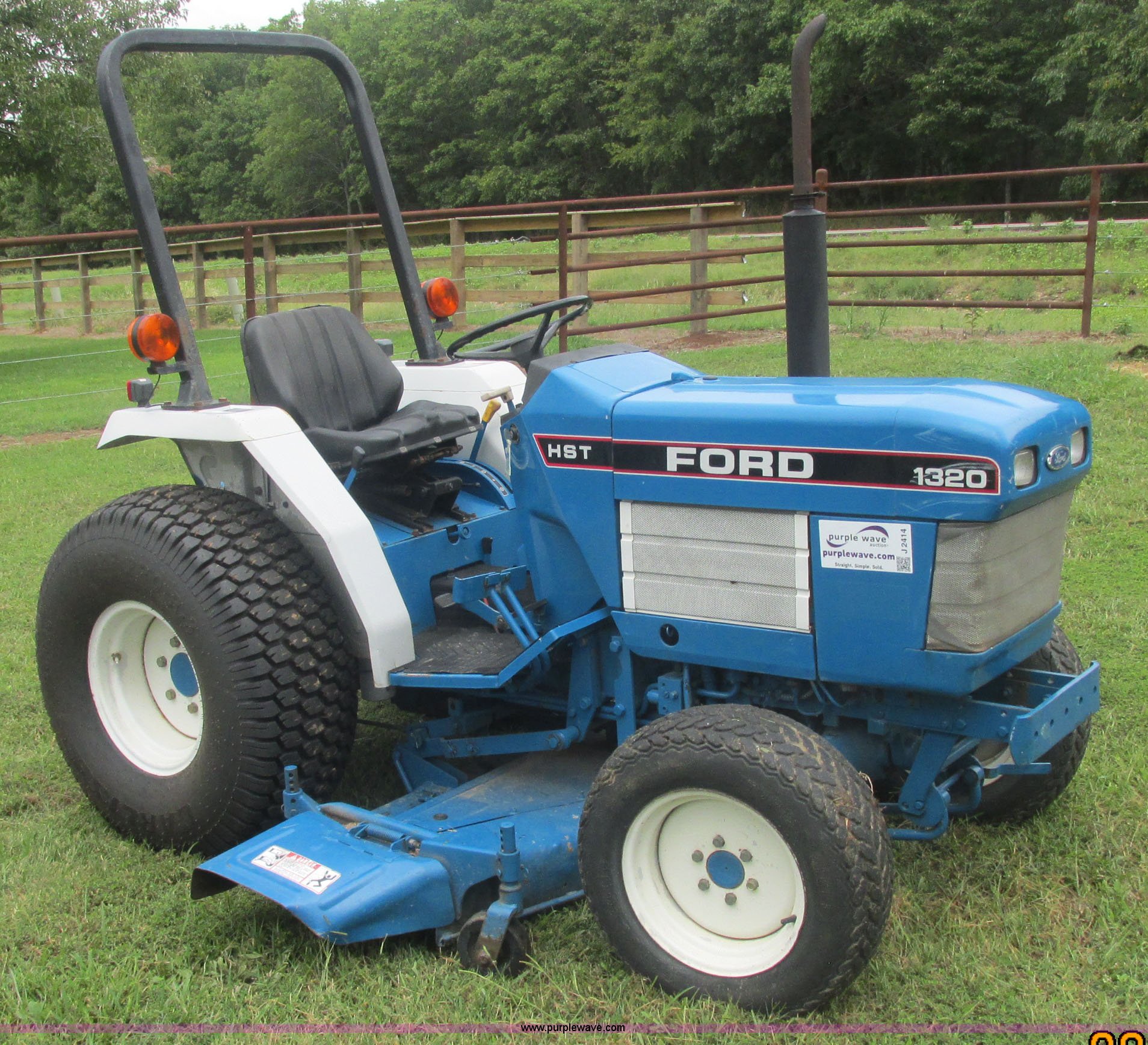

Ford 1320
Ford 1320 — Twenty Compact Series · 20 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
2101 to 2229 pounds
Hover a source tag to verify
Overview
DistributorFordReference
ManufacturerShibauraReference
Compact Utility tractorReference
Built in JapanReference
Original price was $12,200 in 1998Reference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Shibaura 1.3L 3-cyl dieselReference
Engine (gross)14.9 kWReference
Engine (net)14.2 kWReference
Shibaura J823Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke82 x 80 mmReference
Power (net)14.2 kWReference
Power (gross)14.9 kWReference
Rated RPM2500Reference
Firing order1-2-3Reference
StarterelectricReference
Starter volts12Reference
Transmission
9-speed gearReference
hydrostaticReference
TypegearReference
Gears9 forward and 3 reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
Gear PTO (claimed)12.7 kWReference
Hydro PTO (claimed)11.9 kWReference
Hydraulic system26.1 LReference
Typeopen centerReference
Capacity26.1 LReference
Pump flow24.2 lpmReference
Total flow34.8 lpmReference
Steering flow10.6 lpmReference
Rear TypeIReference
Controldraft controlReference
Rear lift (at 24"/610mm)790 kgReference
Rear PTOtransmissionReference
Rear PTOliveReference
Rear PTO Type540Reference
Mid PTOoptionalReference
Mid PTO Type2000Reference
Capacities
Fuel26.9 LReference
Dimensions
Wheelbase160 cmReference
Weight2101 to 2229 poundsReference
Front tire6.50-10Reference
2WD Rear tire12.4-16Reference
Weight181 kgReference
2WD Standard tires (ag)Front: 6.50-10. Rear: 12.4-16Reference
4WD Standard tires (ag)Front: 6-12. Rear: 12.4-16Reference
Lawn/turf front23x8.50-12Reference
Lawn/turf front25x8.50-14Reference
Lawn/turf rear13.6x16Reference
Length285 cmReference
Width149 cmReference
Height (ROPS)209 cmReference
2WD Shipping weight953 kgReference
4WD Shipping weight1011 kgReference
Ground clearance24 cmReference
2WD Front tread99 to 134 cmReference
4WD Front tread117 cmReference
2WD Rear tread99 to 134 cmReference
4WD Rear tread112 to 117 cmReference
Ford 1320 attachments
60" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference
1320 Serial Number Location
On tractor transmission housing, left side.Reference
1320 Serial Numbers
1987UE21001Reference
1988UE22001Reference
1989UE23391Reference
1990UE24517Reference
1991UE25495Reference
1992UE26189Reference
1993UE26960Reference
1994UE24771Reference
1995UE28084Reference
1996UE28490Reference
1997UE28925Reference
1998UE29318Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
60" mid-mount mower deckReference
SnowblowerReference
BladeReference
Front-end loaderReference
BackhoeReference
60" Mower deck
Typemid-mount Ford 914Reference
Type3-bladeReference
Cutting width152 cmReference
DriveshaftReference
Overall width177 cmReference
Cut height3 to 10 cmReference
Ford 757B Backhoe
Backhoe typeFord 757B BackhoeReference
Transport height180 cmReference
2-Foot flat digging depth215 cmReference
8-Foot flat digging depth165 cmReference
Loading height184 cmReference
Bucket Rotation180°Reference
Bucket force873 kgReference
Dipperstick force426 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
