Tractor · 1992Unverified

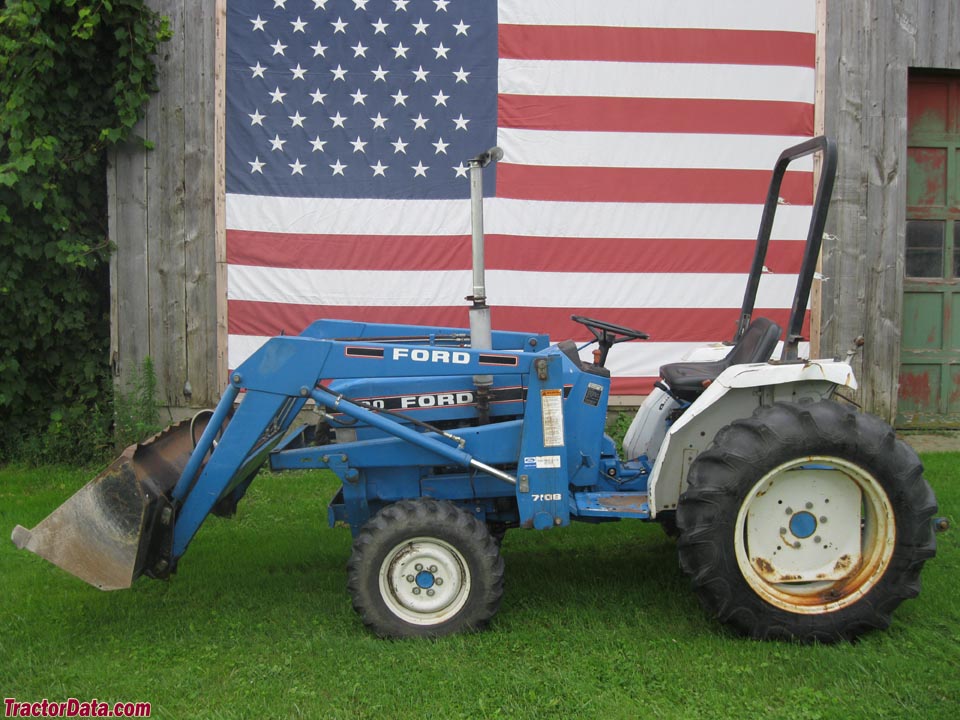

Ford 1620
Ford 1620 — Twenty Compact Series · 27 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
27 hp
Weight
2233 to 2352 pounds
Hover a source tag to verify
Overview
DistributorFordReference
ManufacturerShibauraReference
Compact Utility tractorReference
Built in JapanReference
Original price was $17,000 in 1997Reference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Shibaura 1.3L 3-cyl dieselReference
Fuel tank26.9 LReference
Engine (gross)20.4 kWReference
Engine (net)19.4 kWReference
Shibaura J843Reference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.3 LReference
Bore/Stroke84 x 80 mmReference
Power (net)19.4 kWReference
Power (gross)20.4 kWReference
Compression22:1Reference
Rated RPM2600Reference
Idle RPM850-2800Reference
Firing order1-2-3Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverseReference
PTO & Hydraulics
PTO (claimed)16.4 kWReference
Typeopen centerReference
Pressure146.9 barReference
Pump flow26.9 lpmReference
Total flow37.9 lpmReference
Steering flow11.0 lpmReference
Rear TypeIReference
Controldraft controlReference
Rear lift (at ends)877 kgReference
Rear lift (at 24"/610mm)742 kgReference
Rear PTOliveReference
Clutchdry discReference
Rear PTO Type540 (1.375)Reference
Mid PTO Type2000Reference
Dimensions
Wheelbase160 cmReference
Weight2233 to 2352 poundsReference
Front tire5.00-15Reference
2WD Rear tire9.5-24Reference
2WD Standard tires (ag)Front: 5.00-15. Rear: 9.5-24Reference
4WD Standard tires (ag)Front: 6-14. Rear: 9.5-24Reference
Length285 cmReference
Width122 cmReference
Height (ROPS)214 cmReference
2WD Shipping weight1012 kgReference
4WD Shipping weight1066 kgReference
2WD Ground clearance29 cmReference
4WD Ground clearance28 cmReference
2WD Front tread99 to 127 cmReference
4WD Front tread107 cmReference
2WD Rear tread99 to 134 cmReference
4WD Rear tread104 to 119 cmReference
Ford 1620 attachments
60" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference
1620 Serial Numbers
Location:Serial number plate on the left side of the transmission case.Reference
1992UJ20136Reference
1993UJ20911Reference
1994UJ21591Reference
1995UJ22718Reference
1996UJ23587Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps35Reference
Battery volts12Reference
Battery AH70Reference
Attachment overview
60" mid-mount mower deckReference
SnowblowerReference
BladeReference
Front-end loaderReference
BackhoeReference
60" Mower deck
Typemid-mount Ford 914Reference
Cutting width152 cmReference
Ford 757B Backhoe
Backhoe typeFord 757B BackhoeReference
Transport height180 cmReference
2-Foot flat digging depth215 cmReference
8-Foot flat digging depth165 cmReference
Loading height184 cmReference
Bucket Rotation180°Reference
Bucket force873 kgReference
Dipperstick force426 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
