Tractor · 1983Unverified

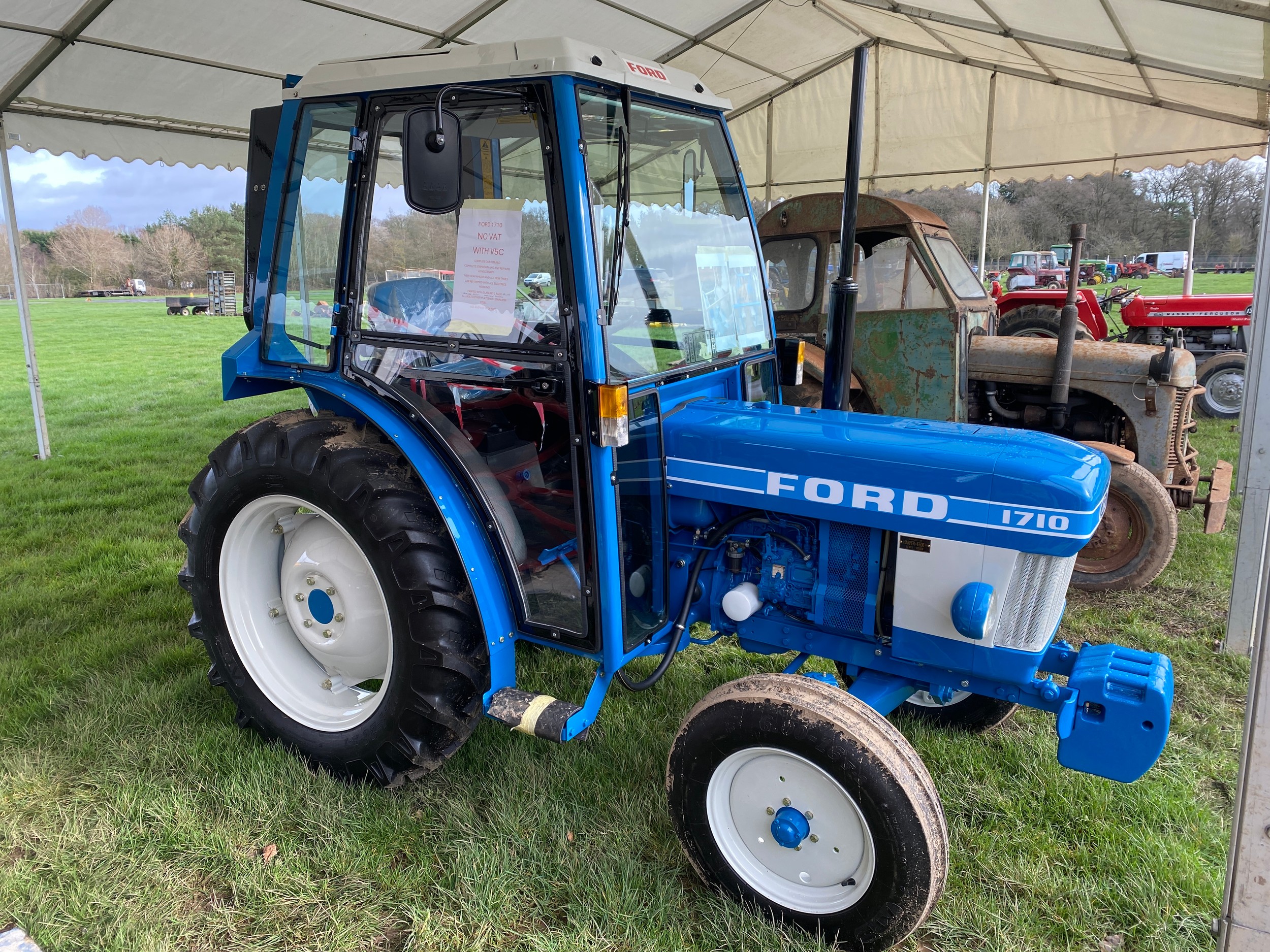

Ford 1710
Ford 1710 — Ten Compact Series · 26 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
26 hp
Max power
14.9 kW
Weight
2425 to 2690 pounds
Hover a source tag to verify
Overview
DistributorFordReference
ManufacturerShibauraReference
Compact Utility tractorReference
Built in JapanReference
Original price was $8,859 in 1986Reference
Two- or four-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
2WD SteeringmanualReference
Differential mechanical drum brakesReference
Two-post fixed ROPS.Reference
Variants
1710 Offsetcultivating tractorReference
Engine
Shibaura 1.4L 3-cyl dieselReference
Engine (net)19.4 kWReference
Drawbar (tested)15.3 kWReference
Shibaura H843Reference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.4 LReference
Bore/Stroke84 x 84 mmReference
Power (net)19.4 kWReference
Fuel use7.1 l/hourReference
Air cleanerdryReference
Pre-heatingglow plugsReference
Compression23:1Reference
Rated RPM2700Reference
Idle RPM750-2875Reference
Torque75.5 NmReference
Torque RPM1500Reference
Firing order1-2-3Reference
Starter volts12Reference
Oil capacity5.3 LReference
Coolant capacity4.0 LReference
Power at rated engine speed17.8 kWReference
Max power14.9 kWReference
Power at rated engine speed17.7 kWReference
Max power15.3 kWReference
Transmission
12-speed unsynchronized gearReference
12-speed partially synchronizedReference
Typeunsynchronized gearReference
Gears12 forward and 4 reverseReference
Clutch216mm dry discReference
Oil capacity18.0 LReference
Three gears, plus reverse, in four ranges.Reference
Typepartially synchronizedReference
PTO & Hydraulics
PTO (claimed)17.5 kWReference
PTO (tested)17.8 kWReference
Hydraulic system18.0 LReference
Typeopen centerReference
Capacity18.0 LReference
Pressure146.9 barReference
Total flow29.5 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)714 kgReference
Rear PTOtransmissionReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2420Reference
Power at rated PTO speed16.5 kWReference
Power at rated PTO speed16.7 kWReference
Dimensions
4WD ((Optional with two-wheel drive.)) SteeringpowerReference
Wheelbase160 cmReference
Weight2425 to 2690 poundsReference
Front tire5.00-15Reference
2WD Rear tire11.2-24Reference
2WD Standard tires (ag)Front: 5.00-15. Rear: 11.2-24Reference
4WD Standard tires (ag)Front: 6.00-16. Rear: 11.2-24Reference
2WD Lawn/turf front23x8.50-12Reference
4WD Lawn/turf front27x8.50-15Reference
Lawn/turf rear13.6x16Reference
Length298 cmReference
Width138 cmReference
Ground clearance35 cmReference
2WD Front tread110 to 146 cmReference
4WD Front tread115 cmReference
Rear tread109 to 149 cmReference
2WD1120 kgReference
4WD1220 kgReference
Operating1099 kgReference
Ballasted1592 kgReference
2WD Steering wheel145 cmReference
4WD Steering wheel147 cmReference
Capacities
Fuel29.1 LReference
Ford 1710 attachments
60" mid-mount mower deckReference
snowblowerReference
front-end loaderReference
backhoeReference
1710 Serial Number Location
Serial number plate on the left side of the Ford 1710, near the clutch pedal.Reference
1710 Serial Numbers
1983UL00001Reference
1984UL03489Reference
1985UL07985Reference
1986UL13798Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps35Reference
Charging volts12Reference
Battery volts12Reference
Battery AH72Reference
Attachment overview
60" mid-mount mower deckReference
SnowblowerReference
Ford 770A loaderReference
Ford 770B loaderReference
BackhoeReference
In addition to the mid-mount mowing deck, the Ford 1710 was matched for the 930A rear finish mower in 59 or 72 inch widths. It could also use the 939 and 940 60-inch rotary cutters, and the 917 flail mowers (62 or 74 inch). In addition to a loader and backhoe, the model 706 10-cubic-foot rear scoop was available. Up to 72-inch front blades and 84-inch rear blades could be fitted on the 1710, and a 72-inch landscape rake. Rear tillers were available in 48 and 54-inch widths. Ford listed two-bottom plows, 82-inch disc harrows, and 72-inch cultivators as matched equipment.Reference
60" Mower deck
Typemid-mount Ford 915Reference
Type3-bladeReference
Cutting width152 cmReference
Ford 757A Backhoe
Backhoe typeFord 757A BackhoeReference
Bucket width20 cmReference
Bucket width33 cmReference
Bucket width40 cmReference
Digging depth194 cmReference
2-Foot flat digging depth189 cmReference
8-Foot flat digging depth102 cmReference
Reach from pivot271 cmReference
Loading height177 cmReference
Dipperstick force326 kgReference
Ford 758A Backhoe
Backhoe typeFord 758A BackhoeReference
Bucket width20 cmReference
Bucket width33 cmReference
Bucket width40 cmReference
Digging depth243 cmReference
2-Foot flat digging depth238 cmReference
8-Foot flat digging depth142 cmReference
Reach from pivot356 cmReference
Loading height212 cmReference
Dipperstick force329 kgReference
Ford 1710 Height
ROPS215 cmReference
2WD Exhaust186 cmReference
4WD Exhaust189 cmReference
Test results
NTTL 1502: diesel 12/4 gear 2WDReference
NTTL 1503: diesel 12/4 synchro 2WDReference
Diesel 12/4 gear 2WDOctober 17 - 31, 1983Link: Nebraska Tractor Test 1502 fileReference
PTO performanceReference
Fuel use7.2 l/hourReference
Fuel use6.4 l/hourReference
Drawbar performanceReference
Fuel use6.8 l/hourReference
Gear 3-3 used for power test.Reference
Max pull1224 kgReference
Gear 2-3 used for pull test.Reference
Diesel 12/4 synchro 2WDOctober 17 - 31, 1983Link: Nebraska Tractor Test 1503 fileReference
Max pull1215 kgReference
Speeds
11.2-24Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
