Tractor · 1992Unverified

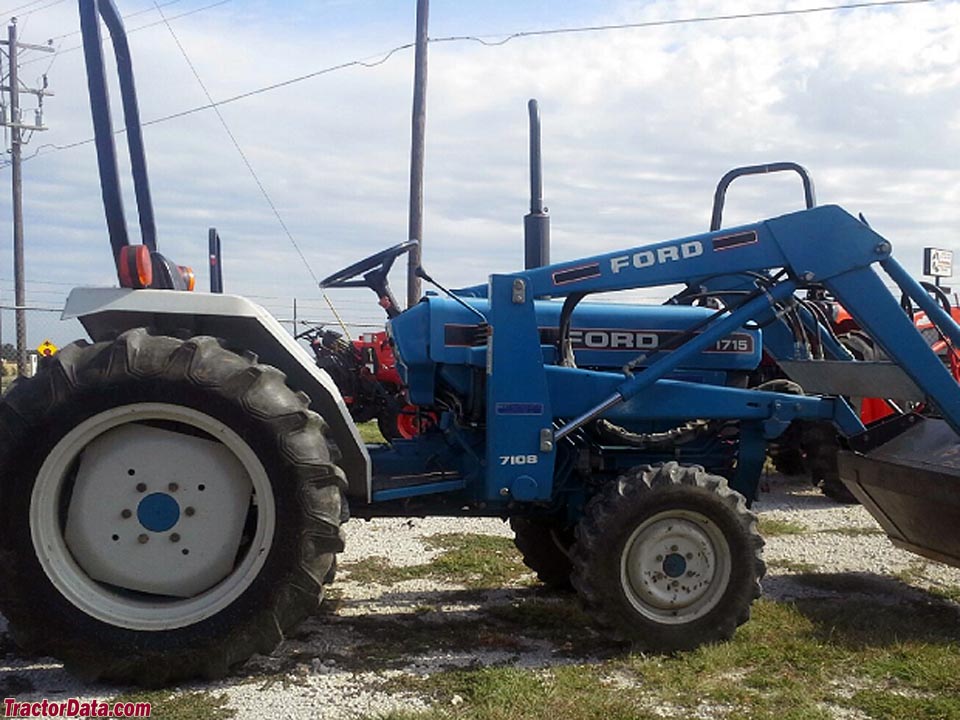

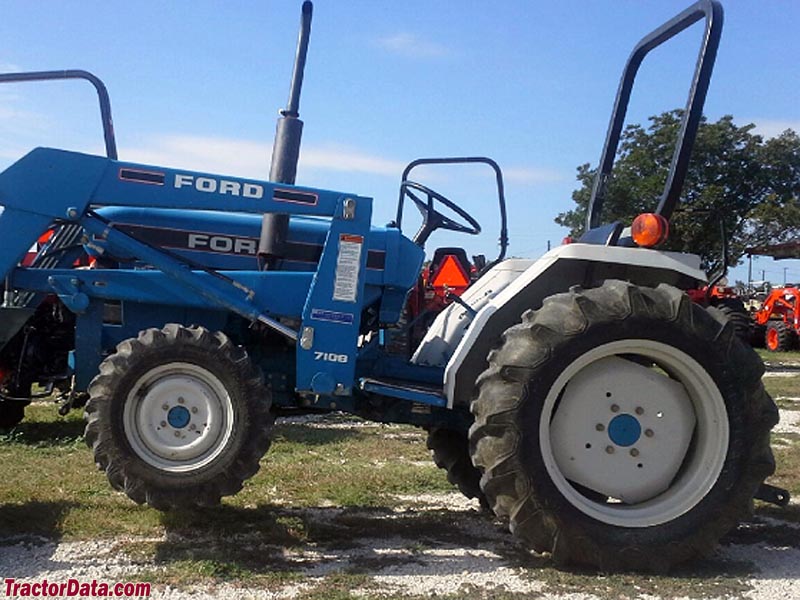

Ford 1715

Name: Ford 1715
Brand: Ford

Ford 1715 — Fifteen Compact Series · 27 hp. Reference specifications; pending source verification.

The Ford 1715 is a compact tractor with a rated output of 27 hp, featuring a 3-cylinder diesel liquid-cooled engine. It was manufactured from 1992 to 1997. The tractor is equipped with a 9-speed gearbox and four-wheel drive. Its listed weight ranges from 1929 to 2116 pounds, making it suitable for jobs covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

27 hp

Weight

1929 to 2116 pounds

Catalogue coverage

Variants represented

Richest spec table

87 rows

Recorded power

27 hp

Recorded weight

874 kg

Transmissions

9-speed gear

Production years

1992-1997

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorFordReference

ManufacturerShibauraReference

Compact Utility tractorReference

Built in JapanReference

Original price was $11,500 in 1997Reference

Two- or four-wheel driveReference

Hydro SteeringpowerReference

Wet disc brakesReference

Two-post fixed ROPS.Reference

Engine

Shibaura 1.3L 3-cyl dieselReference

Fuel tank26.5 LReference

Engine (gross)20.4 kWReference

Engine (net)19.4 kWReference

ShibauraReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.3 LReference

Bore/Stroke84 x 80 mmReference

Power (net)19.4 kWReference

Power (gross)20.4 kWReference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Transmission

9-speed gearReference

Gear SteeringmanualReference

TypegearReference

Gears9 forward and 3 reverseReference

Three gears, plus reverse, in three ranges.Reference

PTO & Hydraulics

PTO (claimed)17.2 kWReference

Typeopen centerReference

Pump flow23.1 lpmReference

Steering flow11.0 lpmReference

Rear TypeIReference

Rear lift (at ends)872 kgReference

Rear lift (at 24"/610mm)742 kgReference

Rear PTOtransmissionReference

Rear PTO Type540Reference

Mid PTOoptionalReference

Mid PTO Type2000Reference

Dimensions

Wheelbase160 cmReference

Weight1929 to 2116 poundsReference

Front tire4.00x15Reference

2WD Rear tire9.5x24Reference

2WD Standard tires (ag)Front: 4.00x15. Rear: 9.5x24Reference

4WD Standard tires (ag)Front: 6x14. Rear: 9.5x24Reference

Length285 cmReference

Width130 cmReference

Height (ROPS)214 cmReference

2WD Shipping weight874 kgReference

4WD Shipping weight959 kgReference

2WD Ground clearance29 cmReference

4WD Ground clearance28 cmReference

2WD Front tread102 to 107 cmReference

4WD Front tread107 cmReference

2WD Rear tread107 to 122 cmReference

4WD Rear tread104 to 119 cmReference

Ford 1715 attachments

60" mid-mount mower deckReference

72" mid-mount mower deckReference

snowblowerReference

bladeReference

front-end loaderReference

backhoeReference

1715 Serial Numbers

Location:Transmission, left sideReference

1992UK20001Reference

1993UK20307Reference

1994UK22179Reference

1995UK25017Reference

1996UK27586Reference

1997UK29295Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Battery volts12Reference

Attachment overview

60" mid-mount mower deckReference

72" mid-mount mower deckReference

SnowblowerReference

BladeReference

Front-end loaderReference

BackhoeReference

Ford 757B Backhoe

Backhoe typeFord 757B BackhoeReference

Transport height180 cmReference

2-Foot flat digging depth215 cmReference

8-Foot flat digging depth165 cmReference

Loading height184 cmReference

Bucket Rotation180°Reference

Bucket force873 kgReference

Dipperstick force426 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
