Tractor · 1983Unverified
Ford 1910
Ford 1910 — Ten Compact Series · 29 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
29 hp
Max power
18.5 kW
Weight
2980 to 3246 pounds
Hover a source tag to verify
Overview
DistributorFordReference
ManufacturerShibauraReference
Compact Utility tractorReference
Built in JapanReference
Original price was $10,000 in 1986Reference
Two- or four-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
SteeringmanualReference
Steeringpower (4WD)Reference
Differential mechanical drum brakesReference
Two-post fixed ROPS.Reference
Engine
Shibaura 1.7L 3-cyl dieselReference
Engine23.9 kWReference
Drawbar (tested)18.5 kWReference
ShibauraReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.7 LReference
Bore/Stroke85 x 100 mmReference
Power23.9 kWReference
Fuel use8.5 l/hourReference
Air cleanerdryReference
Pre-heatingglow plugsReference
Compression21:1Reference
Rated RPM2500Reference
Torque96.1 NmReference
Torque RPM2000Reference
Starter volts12Reference
Oil capacity6.5 LReference
Coolant capacity7.0 LReference
Power at rated engine speed21.3 kWReference
Max power18.5 kWReference
Power at rated engine speed21.3 kWReference
Max power18.3 kWReference
Transmission
12-speed unsynchronized gearReference
12-speed partially synchronizedReference
Typeunsynchronized gearReference
Gears12 forward and 4 reverseReference
Clutch239mm dry discReference
Oil capacity28.0 LReference
Three gears, plus reverse, in four ranges.Reference
Typepartially synchronizedReference
PTO & Hydraulics
PTO (claimed)21.3 kWReference
PTO (tested)21.3 kWReference
Hydraulic system28.0 LReference
Typeopen centerReference
Capacity28.0 LReference
Pressure147.1 barReference
Pump flow19.3 lpmReference
Total flow32.6 lpmReference
Steering flow13.2 lpmReference
Steering press.69.0 barReference
Rear TypeIReference
Controlposition controlReference
Controldraft controlReference
Rear lift (at ends)1729 kgReference
Rear lift (at 24"/610mm)718 kgReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2456Reference
Power at rated PTO speed21.1 kWReference
Power at rated PTO speed21.1 kWReference
Capacities
Fuel34.8 LReference
Dimensions
2WD Wheelbase168 cmReference
4WD Wheelbase169 cmReference
Weight2980 to 3246 poundsReference
Front tire5.50-16Reference
2WD Rear tire13.6-24Reference
2WD Standard tires (ag)Front: 5.50-16. Rear: 13.6-24Reference
4WD Standard tires (ag)Front: 6.00-16. Rear: 13.6-24Reference
Lawn/turf front25x8.50-14 (2WD)Reference
Lawn/turf front27x8.50-15 (4WD)Reference
Lawn/turf rear18.4x16.1Reference
2WD Length311 cmReference
4WD Length312 cmReference
Width146 cmReference
2WD Ground clearance34 cmReference
4WD Ground clearance33 cmReference
Front tread114 to 151 cmReference
Rear tread116 to 154 cmReference
2WD1351 kgReference
4WD1472 kgReference
Ballasted1927 kgReference
2WD Max front axle1099 kgReference
4WD Max front axle1149 kgReference
2WD Steering wheel156 cmReference
4WD Steering wheel153 cmReference
Ford 1910 attachments

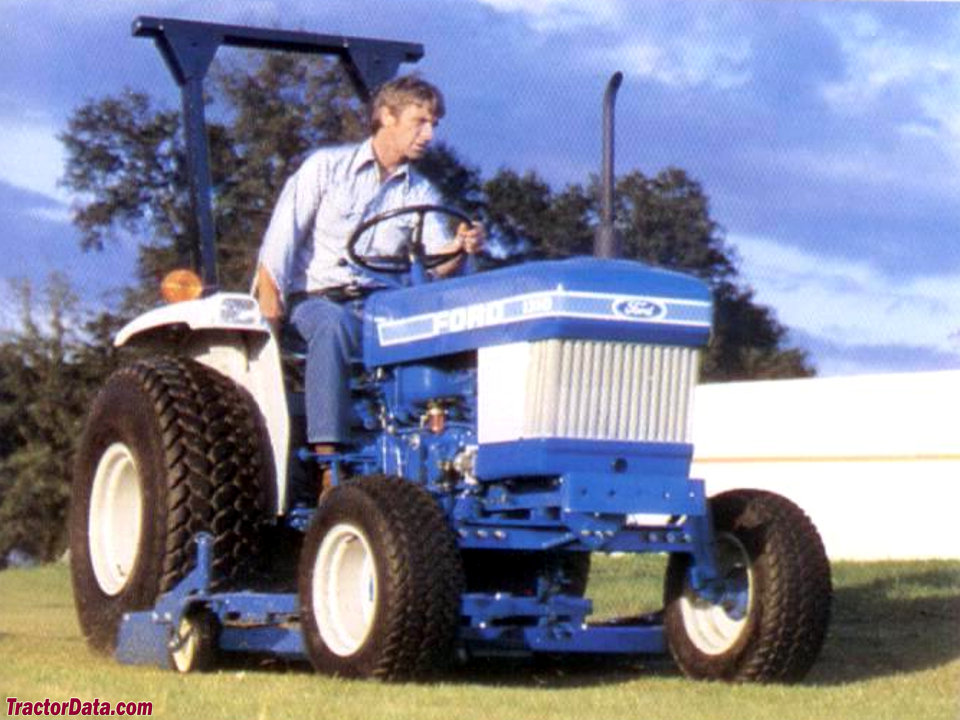

60" mid-mount mower deckReference
snowblowerReference
front-end loaderReference
backhoeReference
1910 Serial Number Location
Serial number plate on the left side of the Ford 1910, near the clutch pedal.Reference
1910 Serial Numbers
1983UP0001Reference
1984UP01089Reference
1985UP04638Reference
1986UP08193Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps35Reference
Charging volts12Reference
Battery volts12Reference
Battery AH100Reference
Attachment overview
60" mid-mount mower deckReference
SnowblowerReference
Ford 770A loaderReference
Ford 770B loaderReference
BackhoeReference
In addition to the mid-mount mowing deck, the Ford 1910 was matched for the 930A rear finish mower in 59 or 72 inch widths. It could also use the 939 and 940 60-inch rotary cutters, and the 917 flail mowers (62 or 74 inch). In addition to a loader and backhoe, the model 706 10-cubic-foot rear scoop was available. Up to 72-inch front blades and 84-inch rear blades could be fitted on the 1910, and a 96-inch landscape rake. Rear tillers were available in 48 and 54-inch widths. Ford listed two-bottom plows, 82-inch disc harrows, and 72-inch cultivators as matched equipment.Reference
60" Mower deck
Typemid-mount Ford 915Reference
Type3-bladeReference
Cutting width152 cmReference
Ford 757A Backhoe
Backhoe typeFord 757A BackhoeReference
Bucket width20 cmReference
Bucket width33 cmReference
Bucket width40 cmReference
Digging depth194 cmReference
2-Foot flat digging depth189 cmReference
8-Foot flat digging depth102 cmReference
Reach from pivot271 cmReference
Loading height177 cmReference
Dipperstick force326 kgReference
Ford 758A Backhoe
Backhoe typeFord 758A BackhoeReference
Bucket width20 cmReference
Bucket width33 cmReference
Bucket width40 cmReference
Digging depth243 cmReference
2-Foot flat digging depth238 cmReference
8-Foot flat digging depth142 cmReference
Reach from pivot356 cmReference
Loading height212 cmReference
Dipperstick force329 kgReference
Ford 1910 Height
ROPS220 cmReference
2WD Exhaust196 cmReference
4WD Exhaust194 cmReference
Test results
NTTL 1507: diesel 12/4 gear 2WDReference
NTTL 1508: diesel 12/4 synchro 2WDReference
Diesel 12/4 gear 2WDMarch 30 - April 12, 1984Link: Nebraska Tractor Test 1507 fileReference
PTO performanceReference
Fuel use8.3 l/hourReference
Drawbar performanceReference
Gear 3-3 used for power test.Reference
Max pull1515 kgReference
Gear 2-3 used for pull test.Reference
Diesel 12/4 synchro 2WDMarch 30 - April 17, 1984Link: Nebraska Tractor Test 1508 fileReference
Fuel use8.7 l/hourReference
Max pull1163 kgReference
Speeds
With 13.6-24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
