Tractor · 1987Unverified

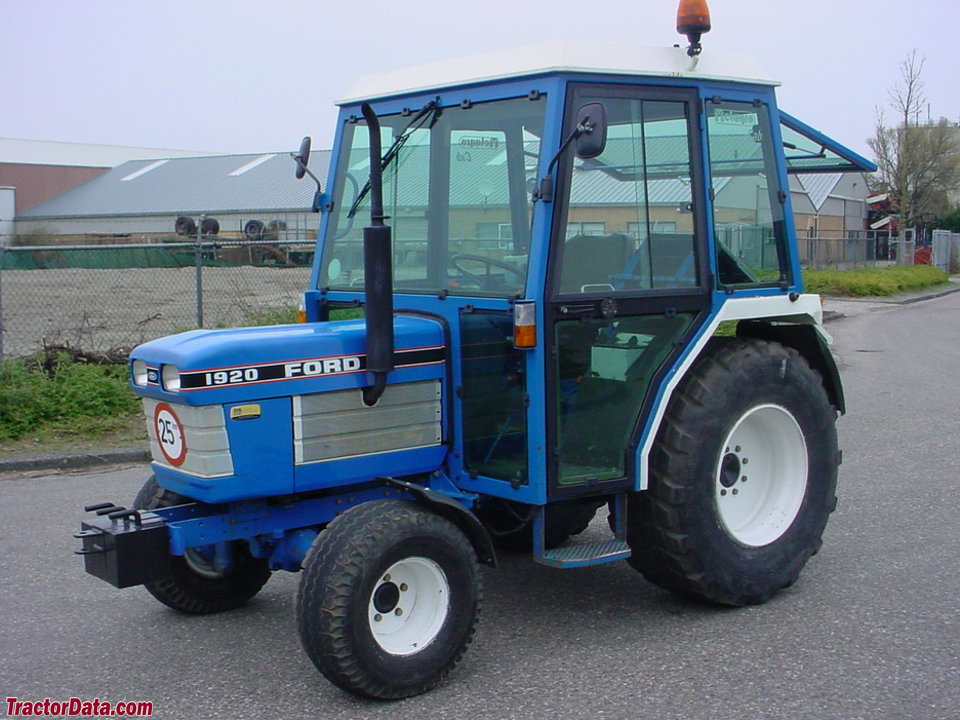

Ford 1920
Ford 1920 — Twenty Compact Series · 33 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
33 hp
Weight
2849 to 3069 pounds
Hover a source tag to verify
Overview
DistributorFordReference
ManufacturerShibauraReference
Compact Utility tractorReference
Built in JapanReference
Original price was $15,500 in 2000Reference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS.Reference
Engine
Shibaura 2.0L 4-cyl dieselReference
Engine (gross)24.8 kWReference
Engine (net)23.9 kWReference
Shibaura N844Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.0 LReference
Bore/Stroke84 x 90 mmReference
Power (net)23.9 kWReference
Power (gross)24.8 kWReference
Compression19:1Reference
Rated RPM2500Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity5.6 LReference
Transmission
12-speed gearReference
12-speed mechanical shuttleReference
TypegearReference
Gears12 forward and 4 reverseReference
Three gears (1-3) plus reverse (R) in four ranges.Reference
Typemechanical shuttleReference
Gears12 forward and reverseReference
Four synchronized gears in four ranges, with mechanical shuttle shifting.Reference
PTO & Hydraulics
PTO (claimed)21.3 kWReference
Hydraulic system29.1 LReference
Typeopen centerReference
Capacity29.1 LReference
Pump flow29.5 lpmReference
Total flow40.1 lpmReference
Steering flow10.6 lpmReference
Rear TypeIReference
Controldraft controlReference
Rear lift (at 24"/610mm)853 kgReference
Rear PTOtransmissionReference
Rear PTOliveReference
Rear PTO Type540Reference
Capacities
Fuel37.1 LReference
Dimensions
Wheelbase177 cmReference
Weight2849 to 3069 poundsReference
Front tire5.50-16Reference
2WD Rear tire13.6-24Reference
2WD Standard tires (ag)Front: 5.50-16. Rear: 13.6-24Reference
4WD Standard tires (ag)Front: 7-16. Rear: 13.6-24Reference
Lawn/turf front25x8.50-14Reference
Lawn/turf rear27x8.50-15Reference
Length321 cmReference
Width148 cmReference
Height (ROPS)228 cmReference
2WD Shipping weight1292 kgReference
4WD Shipping weight1392 kgReference
Ground clearance32 cmReference
2WD Front tread109 to 144 cmReference
4WD Front tread115 cmReference
Rear tread116 to 154 cmReference
Ford 1920 attachments
72" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
backhoeReference
1920 Serial Numbers
Location:transmission, left sideReference
1987UP21001Reference
1988UP21710Reference
1989UP24896Reference
1990UP27299Reference
1991UP29354Reference
1992UP30817Reference
1993UP32448Reference
1994UP34038Reference
1995UP35988Reference
1996UP37672Reference
1997UP39076Reference
1998UP41105Reference
1999UP43277Reference
2000UP45272Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
72" mid-mount mower deckReference
SnowblowerReference
BladeReference
Front-end loaderReference
BackhoeReference
72" Mower deck
Typemid-mount Ford 914Reference
Type3-bladeReference
Cutting width182 cmReference
Ford 758B Backhoe
Backhoe typeFord 758B BackhoeReference
Transport height198 cmReference
2-Foot flat digging depth259 cmReference
8-Foot flat digging depth210 cmReference
Loading height199 cmReference
Bucket Rotation177°Reference
Bucket force1304 kgReference
Dipperstick force775 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
