Tractor · 1962Unverified

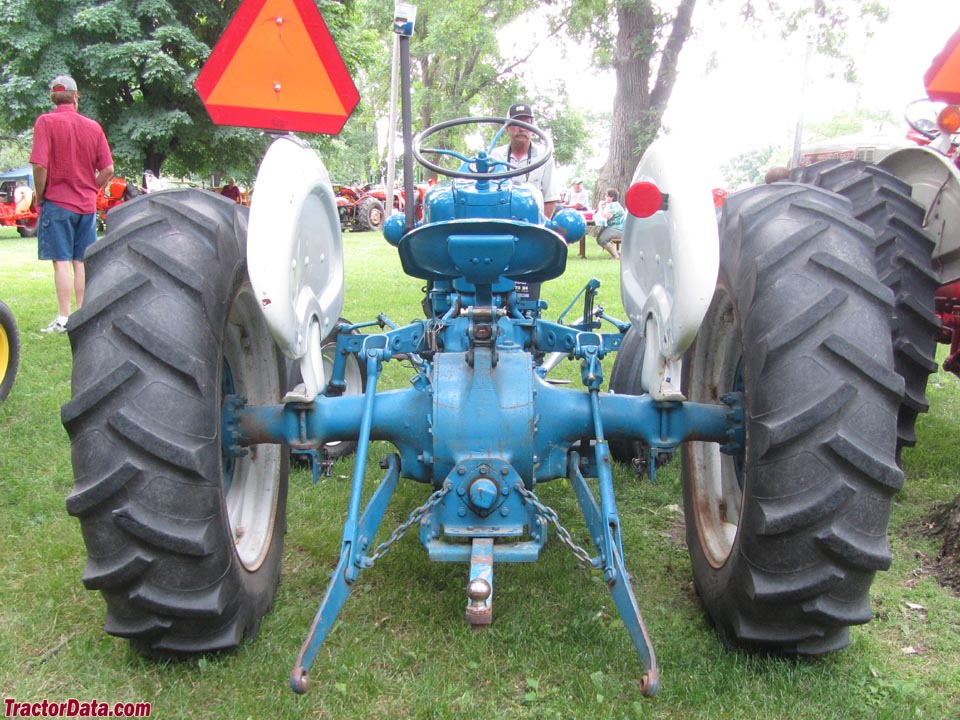

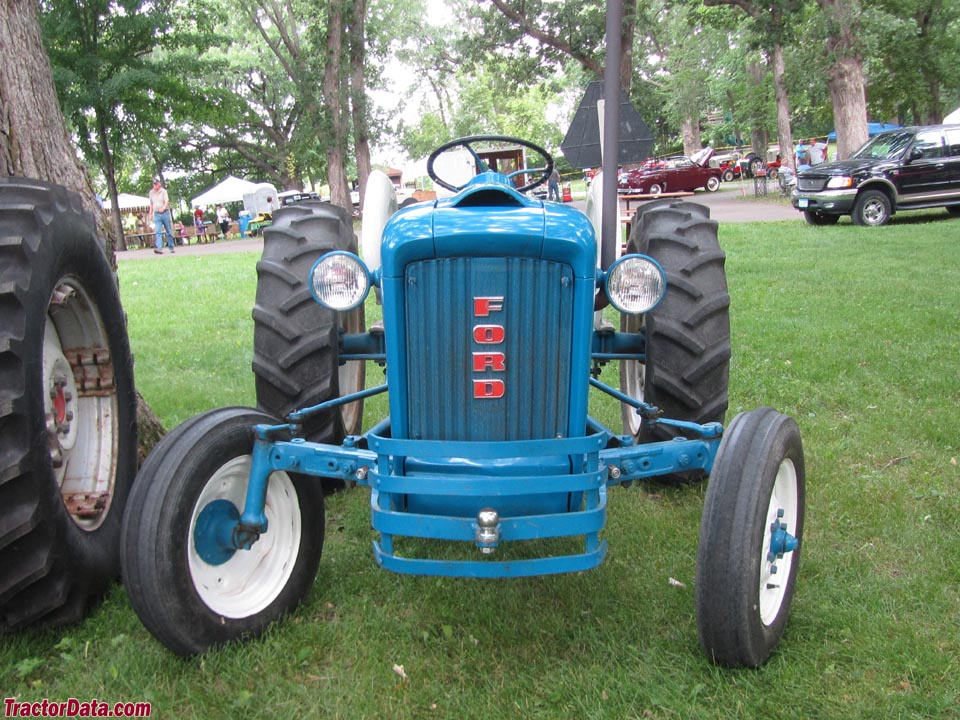

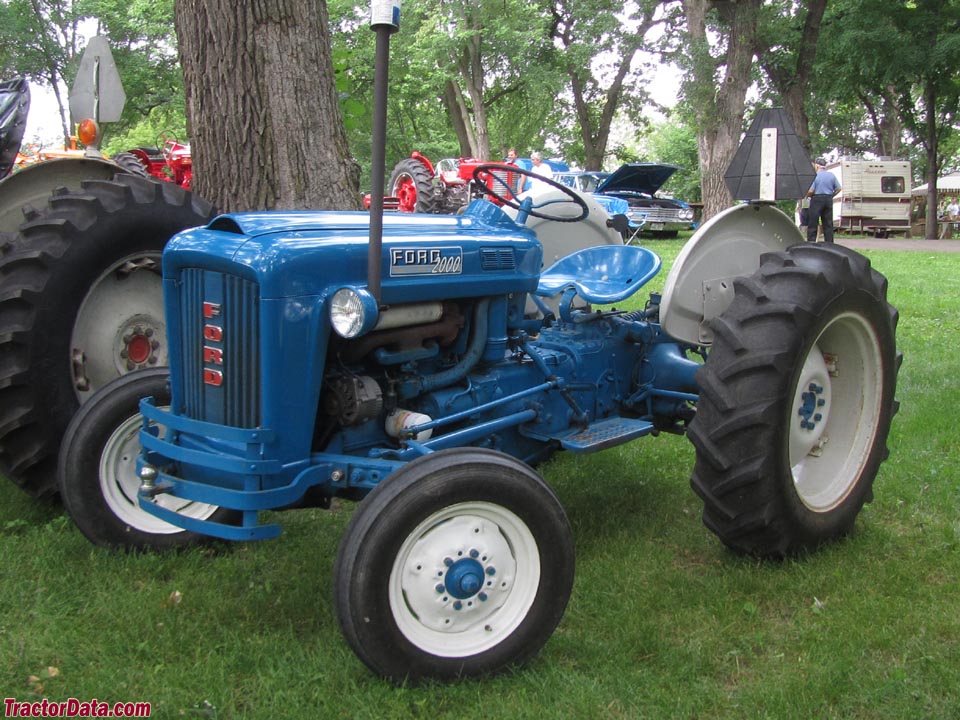

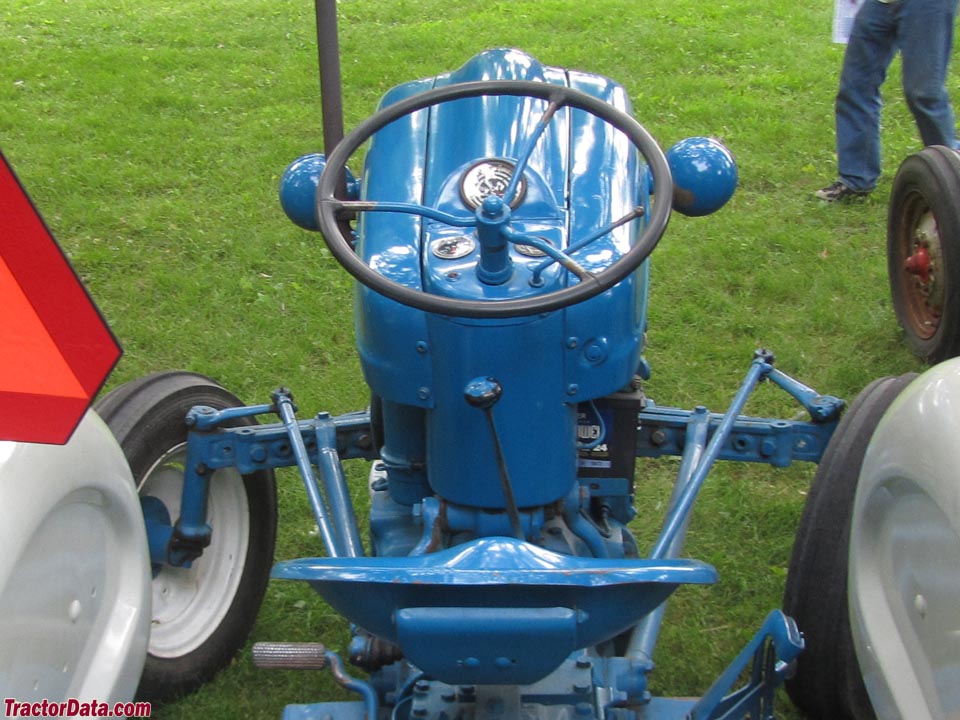

Ford 2000
Ford 2000 — Model year 1962-19651965-1975 · 48 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
48 hp
Weight
3020 to 3362 pounds
Hover a source tag to verify
Overview
ManufacturerFordReference
Utility tractorReference
Built in Highland Park, Michigan, USAReference
The four-cylinder Ford 2000 tractor was very similar to the 601 Workmaster series of Ford tractors. It is entirely different than the later three-cylinder 2000 which replaced it.Reference
Two-wheel driveReference
Utility SteeringmanualReference
Row-crop SteeringpowerReference
Open operator station.Reference
Variants
2000 Offsetcultivating tractorReference
Engine
Ford 2.2L 4-cyl gasolineReference
Ford 2.4L 4-cyl dieselReference
Engine (gross)36.1 kWReference
Drawbar (claimed)20.9 kWReference
FordReference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke87 x 91 mmReference
Power (gross)36.1 kWReference
Air cleaneroil bathReference
Compression7.5:1Reference
Rated RPM2200Reference
Torque164.9 NmReference
Torque RPM1600Reference
Firing order1-2-4-3Reference
StarterelectricReference
Starter volts6Reference
Oil capacity4.7 LReference
Coolant capacity14.2 LReference
dieselReference
Displacement2.4 LReference
Bore/Stroke90 x 91 mmReference
Power (gross)31.8 kWReference
Torque150.9 NmReference
Torque RPM1400Reference
Starter volts12Reference
Transmission
4-speed gearReference
5-speed gearReference
10-speed full power shiftReference
12-speed gearReference
TypegearReference
Gears4 forward and 1 reverseReference
Clutch254mm dry discReference
Oil capacity5.7 LReference
Gears5 forward and 1 reverseReference
Clutch228.6mm dry discsReference
Oil capacity7.6 LReference
TransmissionSelect-O-SpeedReference
Typefull power shiftReference
Gears10 forward and 2 reverseReference
Oil capacity10.4 LReference
TransmissionOver-UnderReference
Gears12 forward and 3 reverseReference
Auxiliary over-under transmission adds additional ranges to the base four-speed transmission.Reference
PTO & Hydraulics
PTO (claimed)23.1 kWReference
Hydraulic system7.6 LReference
Typeopen centerReference
Capacity7.6 LReference
Pressure137.9 barReference
Valves2Reference
Pump flow15.1 lpmReference
Rear TypeIReference
Rear lift (at ends)1070 kgReference
Rear PTOtranmissionReference
Rear PTOliveReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Capacities
Fuel49.2 LReference
Dimensions
Wheelbase189 cmReference
Weight3020 to 3362 poundsReference
Front tire5.50-16Reference
Rear tire12.4-28Reference
Ag front5.50-16Reference
Ag rear12.4-28Reference
Ag rear13.6-28Reference
Ag rear14.9-28Reference
Ag rear16.9-24Reference
Length288 cmReference
Width222 cmReference
Height (steering wheel)144 cmReference
Utility Weight1369 kgReference
Row-crop Weight1525 kgReference
Utility Ground clearance52 cmReference
Utility Front tread132 to 203 cmReference
Row-crop Front tread132 to 205 cmReference
Utility Rear tread132 to 193 cmReference
Row-crop Rear tread142 to 213 cmReference
Ford 2000 attachments
front-end loaderReference
2000 Serial Number Location
Serial number stamped on the top of the starter mount casting, on the left side of the tractor.Reference
2000 Serial Numbers
19621001Reference
196311949Reference
196438931Reference
FAQ: How to read a serial number table.Reference
Electrical
Groundpositive (6V)Reference
Groundnegative (12V)Reference
Charging systemgeneratorReference
Battery volts6 (gas/LP)Reference
Battery volts12 (diesel)Reference
Attachment overview
Ford 1200 loaderReference
Ford 725 loaderReference
Speeds
With 12.4-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
