Tractor · 1962Unverified

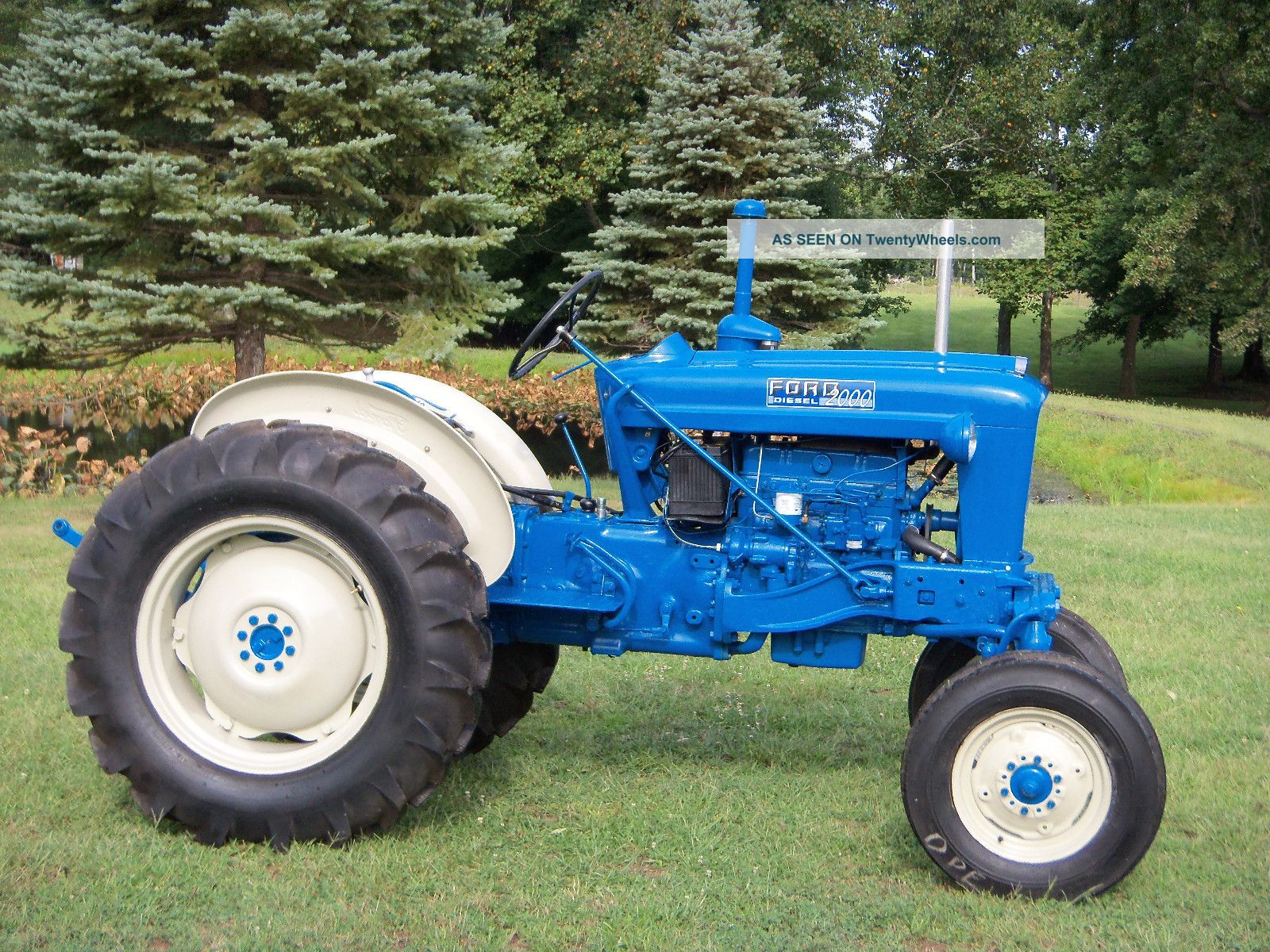

Ford 2000 Offset
Ford 2000 Offset — Row-Crop tractor · 31 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
31 hp
Weight
1599 kg
Hover a source tag to verify
Overview
ManufacturerFordReference
Row-Crop tractorReference
Built in Highland Park, Michigan, USAReference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Variants
2111-4high-clearanceReference
Engine
Ford 2.4L 4-cyl dieselReference
Ford 2.2L 4-cyl gasolineReference
Engine26.8 kWReference
Drawbar (claimed)20.9 kWReference
FordReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.4 LReference
Bore/Stroke90 x 91 mmReference
Power26.8 kWReference
Rated RPM2000Reference
StarterelectricReference
Starter volts12Reference
gasolineReference
Displacement2.2 LReference
Bore/Stroke87 x 91 mmReference
Compression7.5:1Reference
Firing order1-2-4-3Reference
Starter volts6Reference
Oil capacity4.7 LReference
Transmission
4-speed sliding gearReference
5-speed sliding gearReference
Typesliding gearReference
Gears4 forward and 1 reverseReference
Gears5 forward and 1 reverseReference
PTO & Hydraulics
PTO (claimed)23.1 kWReference
Hydraulic system7.6 LReference
Typeopen centerReference
Capacity7.6 LReference
Pressure137.9 barReference
Valves2Reference
Pump flow15.1 lpmReference
Rear TypeIReference
Rear PTOtranmissionReference
Rear PTOliveReference
Rear PTO Type540Reference
Capacities
Fuel49.2 LReference
Dimensions
Weight1599 kgReference
Front tire5.50-16Reference
Rear tire12.4-28Reference
Ag front5.50-16Reference
Ag rear12.4-28Reference
Ground clearance63 cmReference
Ground clearance76 cmReference
Front tread101 to 218 cmReference
Rear tread101 to 213 cmReference
2000 Offset Serial Numbers
Location:Serial number stamped on the top of the starter mount casting, on the right side of the tractor.Reference
Electrical
Groundpositive (6V)Reference
Groundnegative (12V)Reference
Battery volts6 (gas/LP)Reference
Battery volts12 (diesel)Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
