Tractor · 1983Unverified
Ford 2110
Ford 2110 — Ten Compact Series · 35 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Max power
21.5 kW
Weight
3635 to 3946 pounds
Hover a source tag to verify
Overview
DistributorFordReference
ManufacturerShibauraReference
Compact Utility tractorReference
Built in JapanReference
Original price was $13,200 in 1987Reference
Two- or four-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
SteeringpowerReference
Differential mechanical drum brakesReference
Two-post fixed ROPS.Reference
Engine
Shibaura 2.3L 4-cyl dieselReference
Fuel tank40.1 LReference
Engine28.3 kWReference
Drawbar (tested)22.4 kWReference
ShibauraReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.3 LReference
Bore/Stroke85 x 100 mmReference
Power28.3 kWReference
Fuel use9.5 l/hourReference
Air cleanerdryReference
Pre-heatingglow plugsReference
Compression21:1Reference
Rated RPM2500Reference
Torque121.4 NmReference
Torque RPM2000Reference
Starter volts12Reference
Oil capacity7.6 LReference
Coolant capacity8.6 LReference
Power at rated engine speed25.9 kWReference
Max power21.5 kWReference
Power at rated engine speed26.2 kWReference
Max power22.4 kWReference
Transmission
12-speed unsynchronized gearReference
12-speed partially synchronizedReference
Typeunsynchronized gearReference
Gears12 forward and 4 reverseReference
Clutch240mm dry discReference
Oil capacity32.5 LReference
Three gears, plus reverse, in four ranges.Reference
Typepartially synchronizedReference
PTO & Hydraulics
PTO (claimed)25.7 kWReference
PTO (tested)26.2 kWReference
Typeopen centerReference
Pressure147.1 barReference
Pump flow32.6 lpmReference
Total flow45.8 lpmReference
Steering flow13.2 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift (at 24"/610mm)913 kgReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2392Reference
Power at rated PTO speed26.0 kWReference
Power at rated PTO speed26.5 kWReference
Dimensions
2WD Wheelbase186 cmReference
4WD Wheelbase192 cmReference
Weight3635 to 3946 poundsReference
Front tire6.00-16Reference
2WD Rear tire13.6-28Reference
2WD Standard tires (ag)Front: 6.00-16. Rear: 13.6-28Reference
4WD Standard tires (ag)Front: 8.00-18. Rear: 13.6-28Reference
Lawn/turf front25x8.50-14 (2WD)Reference
Lawn/turf front27x8.50-15 (4WD)Reference
Lawn/turf rear18.4x16.1Reference
Length332 cmReference
Width156 cmReference
Height (steering wheel)160 cmReference
Height (exhaust)202 cmReference
Ground clearance39 cmReference
2WD Front tread121 to 182 cmReference
4WD Front tread118 cmReference
Rear tread121 to 182 cmReference
2WD1648 kgReference
4WD1789 kgReference
Ballasted2317 kgReference
Ford 2110 attachments
snowblowerReference
front-end loaderReference
backhoeReference
2110 Serial Number Location
Serial number plate on the left side of the Ford 2110, near the clutch pedal.Reference
2110 Serial Numbers
1983UV00001Reference
1984UV00442Reference
1985UV02153Reference
1986UV03580Reference
1987UV04673Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps35Reference
Charging volts12Reference
Battery volts12Reference
Battery AH100Reference
Attachment overview
SnowblowerReference

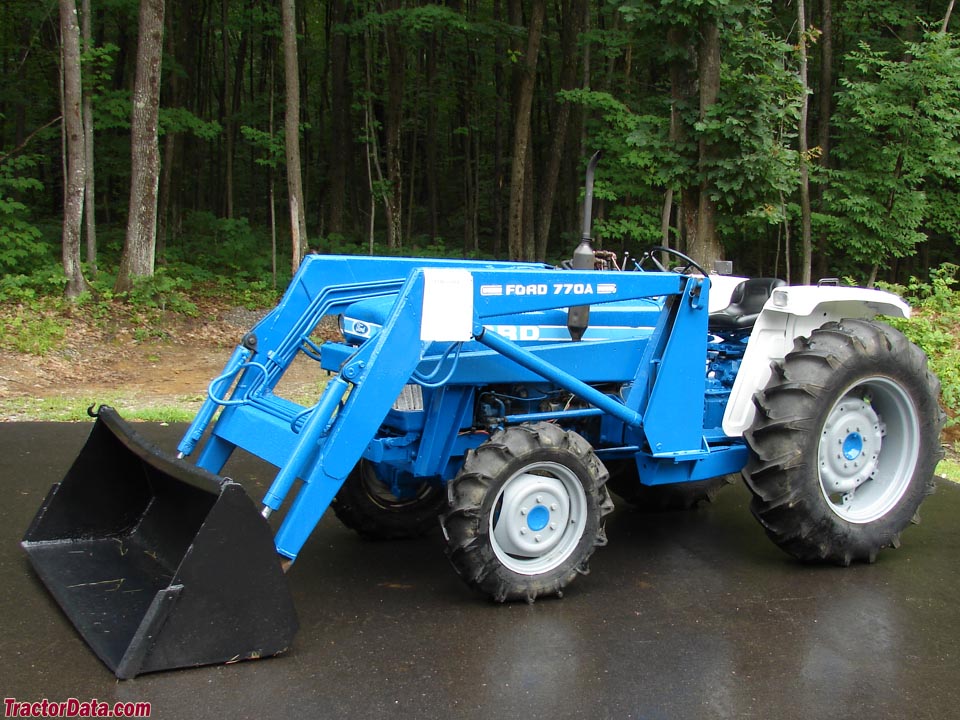

Ford 776A loaderReference
Ford 776B loaderReference
BackhoeReference
Listed for the Ford 2110 were 59 and 72 inch rear finish mowers as well as 60 inch rear rotary cutters.Reference
Ford 758A Backhoe
Backhoe typeFord 758A BackhoeReference
Bucket width20 cmReference
Bucket width33 cmReference
Bucket width40 cmReference
Digging depth243 cmReference
2-Foot flat digging depth238 cmReference
8-Foot flat digging depth142 cmReference
Reach from pivot356 cmReference
Loading height212 cmReference
Dipperstick force329 kgReference
Test results
NTTL 1509: diesel manual 2WDReference
NTTL 1510: diesel synchromesh 2WDReference
Diesel manual 2WDMarch 30 - April 13, 1984Link: Nebraska Tractor Test 1509 fileReference
PTO performanceReference
Fuel use9.5 l/hourReference
Drawbar performanceReference
Fuel use9.1 l/hourReference
Gear 3-2 used for power test.Reference
Max pull1754 kgReference
Gear 2-2 used for pull test.Reference
Diesel synchromesh 2WDMarch 30 - April 9, 1984Link: Nebraska Tractor Test 1510 fileReference
Fuel use9.8 l/hourReference
Max pull1691 kgReference
Gear 2-3 used for pull test.Reference
Speeds
With 13.6-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
