Tractor · 1987Unverified

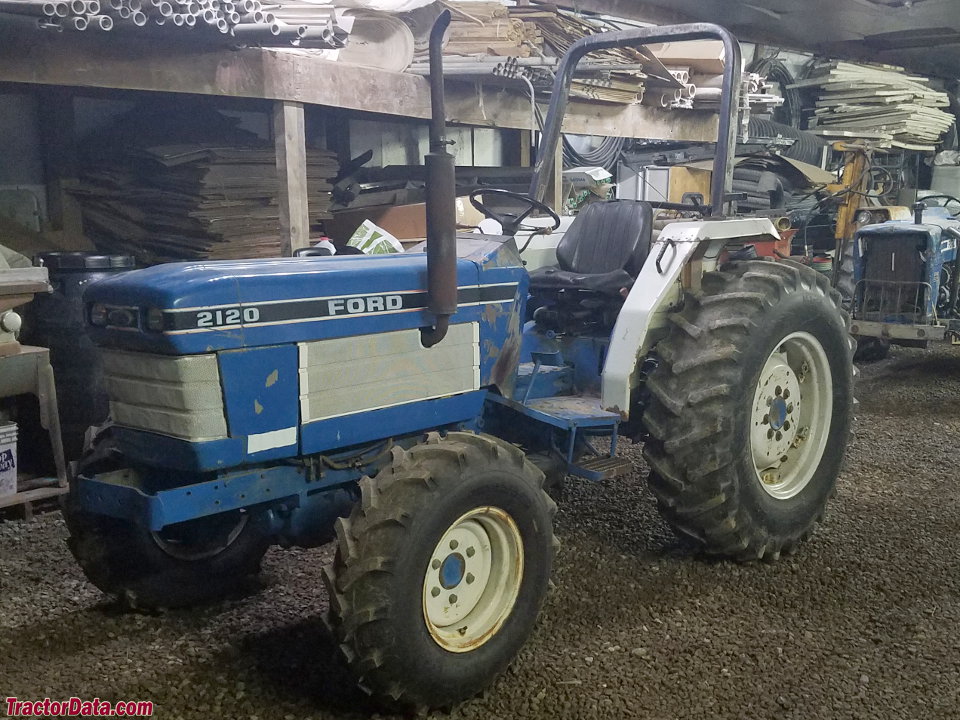

Ford 2120
Ford 2120 — Twenty Compact Series · 43 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
43 hp
Weight
3572 to 3858 pounds
Hover a source tag to verify
Overview
DistributorFordReference
ManufacturerShibauraReference
Compact Utility tractorReference
Built in JapanReference
Original price$21,200Reference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS. Optional FOPS canopy.Reference
Engine
Shibaura 2.3L 4-cyl dieselReference
Fuel tank42.0 LReference
Engine (gross)31.8 kWReference
Engine (net)29.8 kWReference
Shibaura T854Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.3 LReference
Bore/Stroke85 x 100 mmReference
Power (net)29.8 kWReference
Power (gross)31.8 kWReference
Compression18:1Reference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity8.0 LReference
Transmission
12-speed gearReference
12-speed power shuttleReference
TypegearReference
Gears12 forward and 4 reverseReference
Three gears (1-3) plus reverse (R) in four ranges.Reference
TransmissionHydraulic Shuttle Shift (HSS)Reference
Typepower shuttleReference
Gears12 forward and reverseReference
PTO & Hydraulics
PTO (claimed)25.7 kWReference
Typeopen centerReference
Pump flow35.2 lpmReference
Total flow45.8 lpmReference
Steering flow10.6 lpmReference
Rear TypeIReference
Controldraft controlReference
Rear lift (at 24"/610mm)1167 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Wheelbase189 cmReference
Weight3572 to 3858 poundsReference
Front tire6.00x16Reference
2WD Rear tire13.6x28Reference
2WD Standard tires (ag)Front: 6.00x16. Rear: 13.6x28Reference
4WD Standard tires (ag)Front: 8.00-18. Rear: 13.6x28Reference
Lawn/turf front25x8.50-14Reference
Lawn/turf front27x8.50-15Reference
Lawn/turf rear14.9x26Reference
Lawn/turf rear18.4x16.1Reference
Length348 cmReference
Width157 cmReference
Height (ROPS)236 cmReference
2WD Shipping weight1620 kgReference
4WD Shipping weight1749 kgReference
4WD Ground clearance35 cmReference
2WD Ground clearance37 cmReference
2WD Front tread121 to 193 cmReference
4WD Front tread124 cmReference
Rear tread123 to 194 cmReference
Ford 2120 attachments
bladeReference
front-end loaderReference
backhoeReference
2120 Serial Numbers
Location:Transmission housing, left sideReference
1988UV21003Reference
1989UV22274Reference
1990UV23599Reference
1991UV24295Reference
1992UV25141Reference
1993UV25891Reference
1994UV26738Reference
1995UV27935Reference
1996UV28911Reference
1997UV29898Reference
1998UV30679Reference
1999UV31770Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
BladeReference
Front-end loaderReference
BackhoeReference
Ford 758B Backhoe
Backhoe typeFord 758B BackhoeReference
Transport height198 cmReference
2-Foot flat digging depth259 cmReference
8-Foot flat digging depth210 cmReference
Loading height199 cmReference
Bucket Rotation177°Reference
Bucket force1304 kgReference
Dipperstick force775 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
