Tractor · 1982Unverified

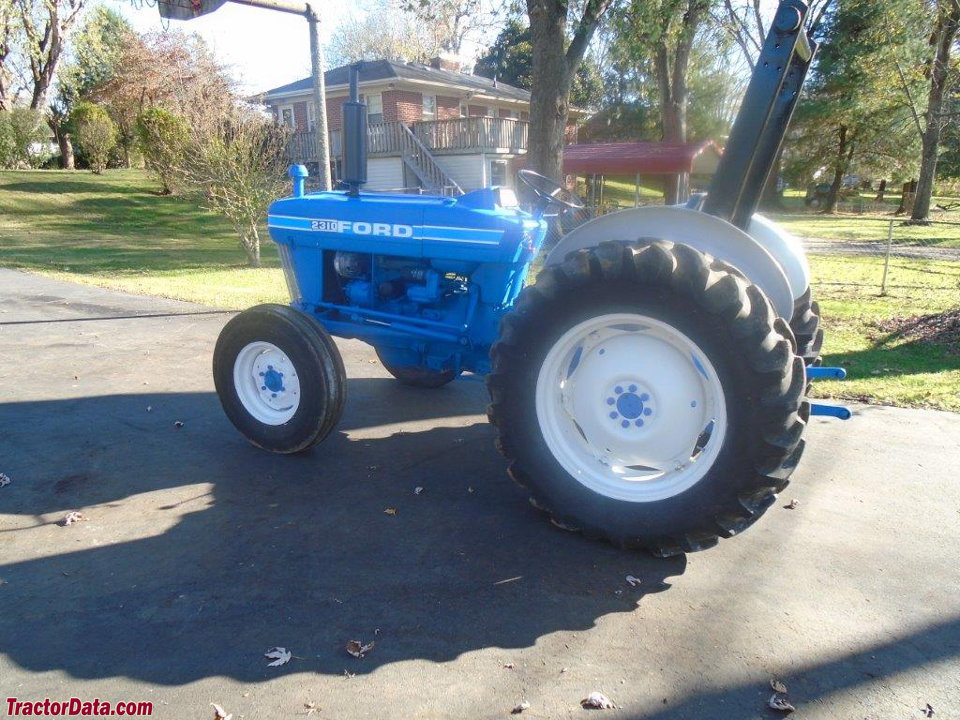

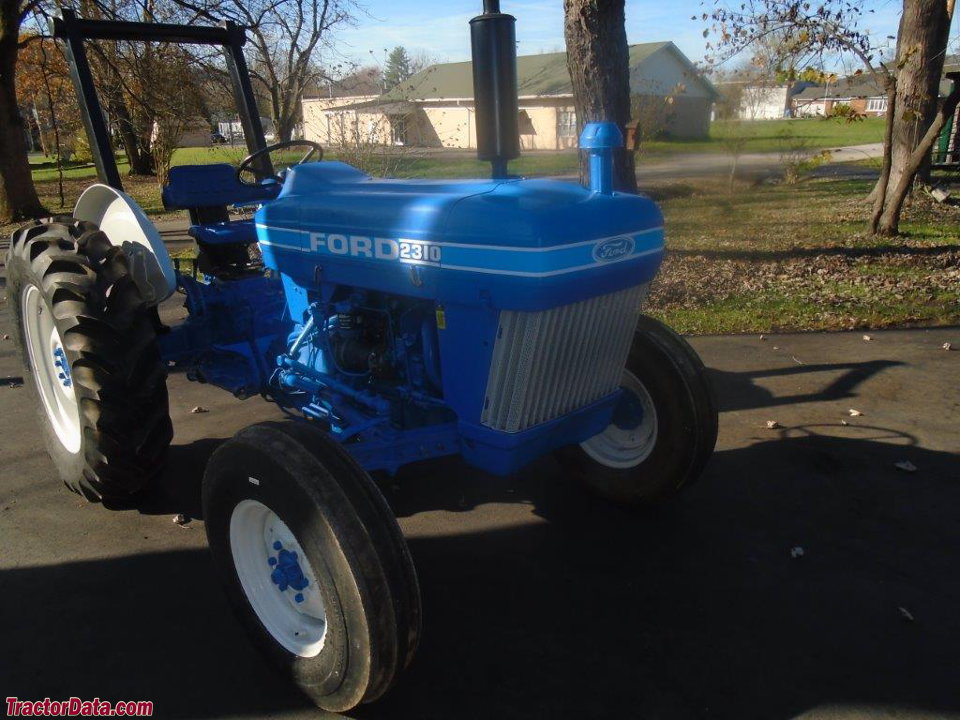

Ford 2310
Ford 2310 — 10 Utility Series · 37 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
37 hp
Max power
20.5 kW
Weight
1559 kg
Hover a source tag to verify
Overview
ManufacturerFordReference
Utility tractorReference
Two- or four-wheel driveReference
SteeringmanualReference
Drum brakesReference
Two-post ROPSReference
Engine
Ford 2.6L 3-cyl dieselReference
Engine (gross)27.2 kWReference
Engine25.6 kWReference
Drawbar (tested)20.5 kWReference
FordReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.6 LReference
Bore/Stroke107 x 97 mmReference
Power25.6 kWReference
Power (gross)27.2 kWReference
Air cleanerdryReference
Compression17.3:1Reference
Rated RPM2000Reference
Torque137.0 NmReference
Torque RPM1400Reference
Firing order1-2-3Reference
Starter volts12Reference
Oil capacity6.6 LReference
Coolant capacity10.4 LReference
Power at rated engine speed24.2 kWReference
Max power20.5 kWReference
Transmission
8-speedReference
TransmissionDual RangeReference
Gears8 forward and 2 reverseReference
Oil capacity11.5 LReference
PTO & Hydraulics
PTO (claimed)23.9 kWReference
PTO (tested)24.2 kWReference
TypeliveReference
Pressure172.4 barReference
Pump flow32.2 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)895 kgReference
Rear PTOliveReference
Rear PTO Type540Reference
Power at rated PTO speed22.9 kWReference
Capacities
Fuel49.2 LReference
Rear axle23.3 LReference
Dimensions
Wheelbase192 cmReference
Weight1559 kgReference
Front tire6.00-16Reference
Rear tire13.6-28Reference
Ag front6.00-16Reference
Ag rear13.6-28Reference
Length321 cmReference
Width161 cmReference
Height (hood)133 cmReference
Shipping weight1559 kgReference
Ballasted weight2704 kgReference
Ground clearance32 cmReference
Front tread132 to 203 cmReference
Rear tread132 to 193 cmReference
Ford 2310 attachments
front-end loaderReference
2310 Serial Numbers
1982C682000Reference
1983C694500Reference
1984C707400Reference
1985C732600Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps32Reference
Battery volts12Reference
Battery AH128Reference
Attachment overview
Ford 730 loaderReference
Ford 776A loaderReference
Ford 776B loaderReference
Test results
Diesel 8-speed 2WDSeptember 20 - 28, 1976Link: Nebraska Tractor Test 1222 fileReference
PTO performanceReference
Fuel use8.7 l/hourReference
Fuel use7.9 l/hourReference
Drawbar performanceReference
Gear 4 used for power test.Reference
Max pull2019 kgReference
Gear 2 used for pull test.Reference
Speeds
With 13.6x28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
