Tractor · 1982Unverified

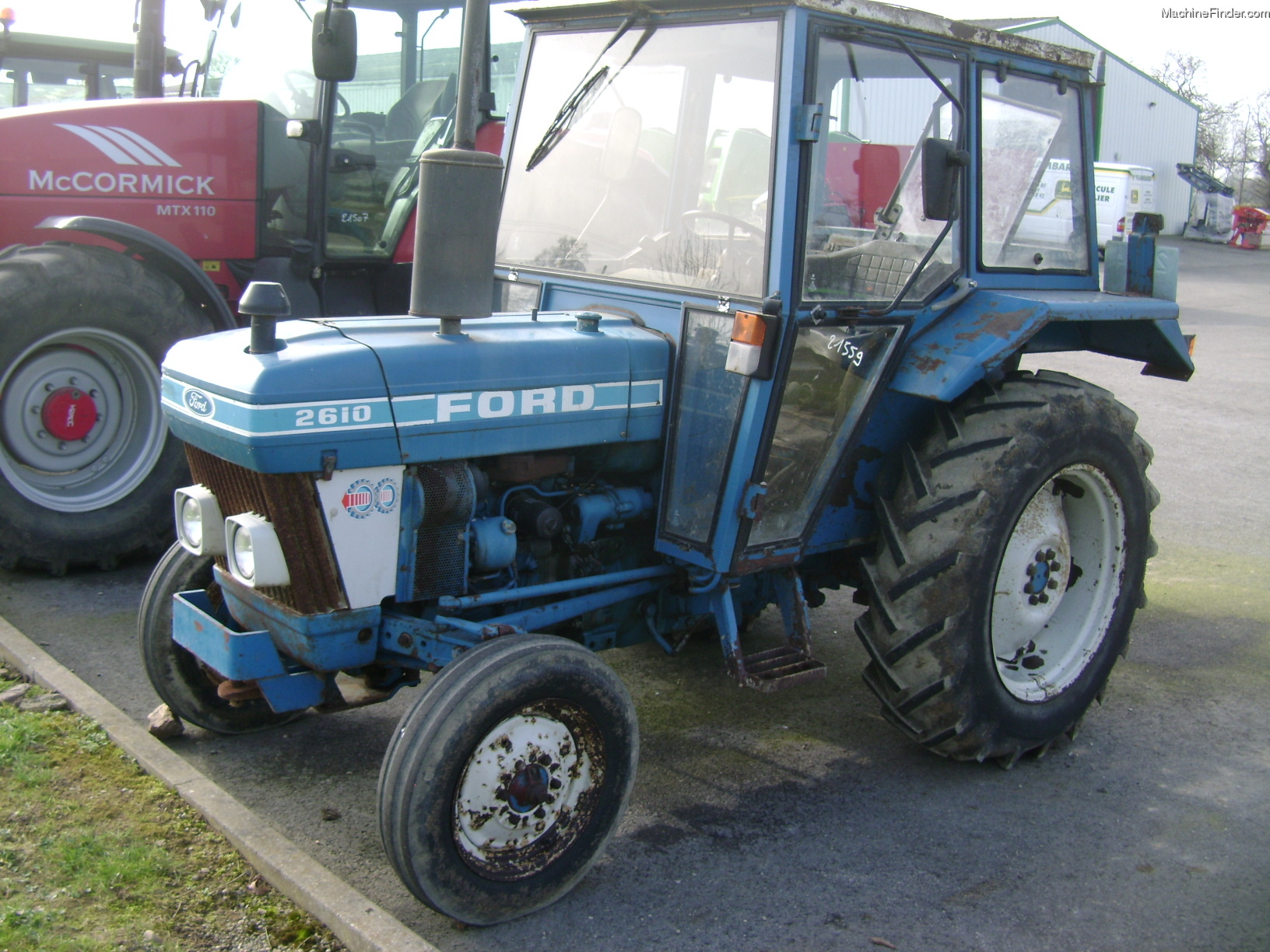

Ford 2610
Ford 2610 — 10 Utility Series · 43 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
43 hp
Max power
21.4 kW
Weight
1576 kg
Hover a source tag to verify
Overview
ManufacturerFordReference
Utility tractorReference
Original price was $13,500 in 1983Reference
Two-wheel driveReference
Steeringpower assistReference
Drum brakesReference
Two-post ROPS.Reference
Engine
Ford 2.9L 3-cyl dieselReference
Ford 2.6L 3-cyl gasolineReference
Engine (gross)31.7 kWReference
Engine30.2 kWReference
Drawbar (claimed)22.4 kWReference
Drawbar (tested)22.7 kWReference
FordReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke107 x 107 mmReference
Power30.2 kWReference
Power (gross)31.7 kWReference
Air cleanerdryReference
Compression17.3:1Reference
Rated RPM2000Reference
Torque151.3 NmReference
Torque RPM1400Reference
Starter volts12Reference
Oil capacity6.6 LReference
Coolant capacity10.4 LReference
gasolineReference
The gasoline engine was offered only in 1982, after that time only the diesel was available.Reference
Displacement2.6 LReference
Bore/Stroke107 x 97 mmReference
Power24.6 kWReference
Power (gross)26.5 kWReference
Compression7.75:1Reference
Torque136.3 NmReference
Torque RPM1350Reference
Firing order1-2-3Reference
Power at rated engine speed25.5 kWReference
Max power21.4 kWReference
Power at rated engine speed27.4 kWReference
Max power22.7 kWReference
Transmission
8-speedReference
8-speed synchromeshReference
TransmissionDual RangeReference
Gears8 forward and 2 reverseReference
Oil capacity11.5 LReference
TypesynchromeshReference
Gears8 forward and 4 reverseReference
Oil capacity9.4 LReference
PTO & Hydraulics
Diesel PTO (claimed)26.8 kWReference
Gas PTO (claimed)25.4 kWReference
PTO (tested)27.4 kWReference
TypeliveReference
Pressure172.4 barReference
Pump flow32.2 lpmReference
Steering flow13.6 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)895 kgReference
Rear PTOliveReference
Rear PTO Type540Reference
Power at rated PTO speed23.9 kWReference
Power at rated PTO speed26.2 kWReference
Capacities
Fuel49.2 LReference
Rear axle23.3 LReference
Dimensions
Wheelbase192 cmReference
Weight1576 kgReference
Front tire5.50-16Reference
Rear tire12.4-28Reference
Ag front5.50-16Reference
Ag rear12.4-28Reference
Ag front6.00-16Reference
Ag front6.50-16Reference
Ag front7.50-16Reference
Ag rear14.9-24Reference
Ag rear16.9-24Reference
Ag rear13.6-28Reference
Length321 cmReference
Width161 cmReference
Height (hood)133 cmReference
Shipping weight1576 kgReference
Ballasted weight2721 kgReference
Ground clearance32 cmReference
Front tread132 to 203 cmReference
Rear tread132 to 193 cmReference
Ford 2610 attachments
front-end loaderReference
2610 Serial Numbers
1982C682000Reference
1983C694500Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps32Reference
Battery volts12Reference
Diesel Battery AH128Reference
Gas Battery AH77Reference
Attachment overview
Ford 730 loaderReference
Ford 776A loaderReference
Ford 776B loaderReference
Test results
NTTL 1207: gasoline 8-speed 2WDReference
NTTL 1421: diesel 8-speed 2WDReference
Gasoline 8-speed 2WDMarch 25 - April 23, 1976Link: Nebraska Tractor Test 1207 fileReference
PTO performanceReference
Fuel use11.4 l/hourReference
Fuel use10.6 l/hourReference
Drawbar performanceReference
Gear 4 used for power test.Reference
Max pull2020 kgReference
Gear 2 used for pull test.Reference
Diesel 8-speed 2WDMarch 17 - April 15, 1982Link: Nebraska Tractor Test 1421 fileReference
Fuel use8.7 l/hourReference
Fuel use8.3 l/hourReference
Gear 5 used for power test.Reference
Max pull2028 kgReference
Speeds
With 13.6x28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
