Tractor · 1988Unverified

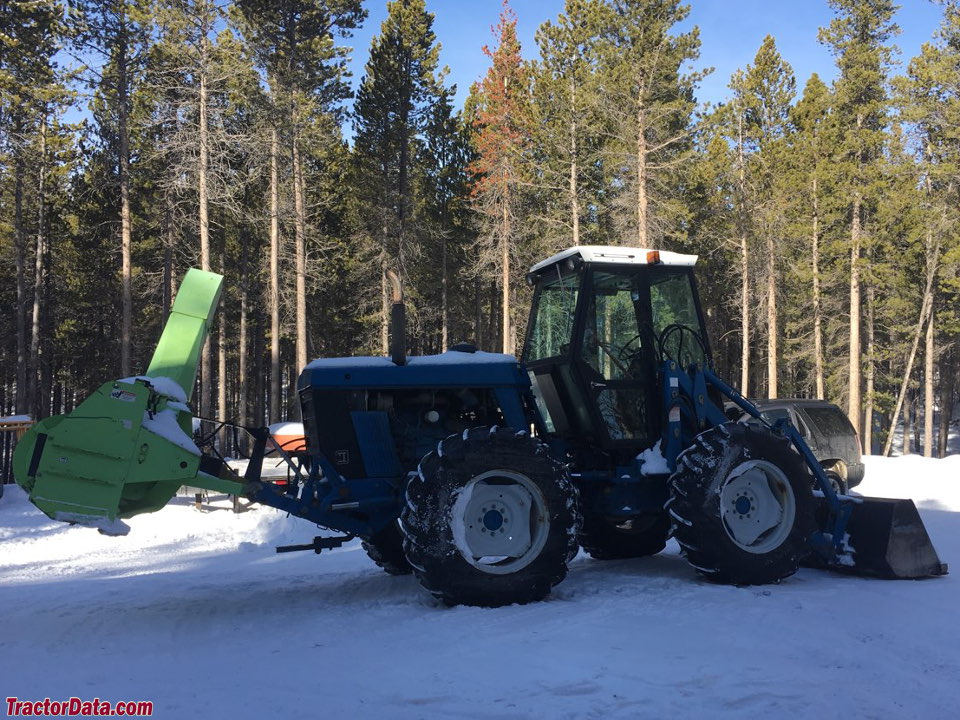

Ford 276
Ford 276 — Versatile built · 100 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
100 hp
Weight
9300 to 13500 pounds
Hover a source tag to verify
Overview
DistributorFordReference
ManufacturerVersatileReference
Built in Winnipeg, Manitoba, CanadaReference
Drive4x4 4WDReference
Articulated power steeringReference
Hydraulic disc brakesReference
Cab standard.Reference
Engine
Ford 4.4L 4-cyl dieselReference
Fuel tank147.6 LReference
Engine86.5 kWReference
FordReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke112 x 112 mmReference
Power86.5 kWReference
Pre-heatingether injectionReference
Pre-heatingblock heaterReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity22.0 LReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
Oil capacity32.2 LReference
PTO & Hydraulics
PTO (claimed)74.6 kWReference
Typeclosed center load sensingReference
Pressure193.1 barReference
Valves3Reference
Front valves2Reference
Pump flow102.2 lpmReference
Steering flow18.9 lpmReference
Steering press.158.6 barReference
Rear TypeII/IReference
Controlposition controlReference
Rear lift (at ends)3175 kgReference
Rear lift (at 24"/610mm)1995 kgReference
Front HitchII/IReference
Front lift (at ends)1481 kgReference
Front lift (at 24"/610mm)907 kgReference
Rear PTOindependentReference
Clutchwet discReference
Rear PTO Type540/1000 (1.375)Reference
Front PTO Type540 (1.375)Reference
Front PTO Type1000 (1.375)Reference
Engine RPM540@2500Reference
Engine RPM1000@2500Reference
Dimensions
Weight9300 to 13500 poundsReference
Ground clearance60 cmReference
Shipping4218 kgReference
Operating6123 kgReference
Max Drawbar1134 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Battery CCA850Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
