Tractor · 1983Unverified

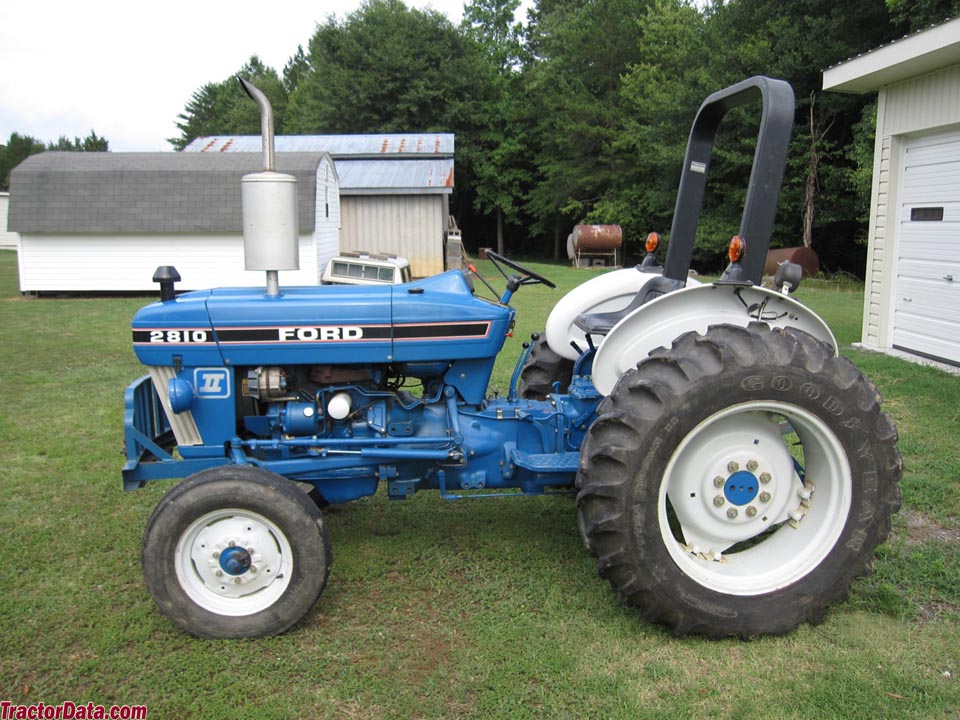

Ford 2810
Ford 2810 — 10 Utility Series · 37 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
37 hp
Max power
21.0 kW
Weight
4420 to 4995 pounds
Hover a source tag to verify
Overview
ManufacturerFordReference
Utility tractorReference
Original price was $16,000 in 1990Reference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockmechanical rearReference
SteeringmanualReference
Steeringpower assistReference
Differential wet disc brakesReference
Two-post fixed ROPS.Reference
Engine
Ford 2.6L 3-cyl dieselReference
Engine (gross)27.2 kWReference
Engine25.6 kWReference
Drawbar (tested)21.0 kWReference
FordReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.6 LReference
Bore/Stroke107 x 97 mmReference
Power25.6 kWReference
Power (gross)27.2 kWReference
Air cleanerdual paper elementsReference
Compression17.3:1Reference
Rated RPM2000Reference
Torque137.0 NmReference
Torque RPM1400Reference
Starter volts12Reference
Oil capacity6.6 LReference
Coolant capacity10.4 LReference
Power at rated engine speed24.5 kWReference
Max power21.0 kWReference
Transmission
8-speedReference
6-speed mechanical shuttleReference
TransmissionDual RangeReference
Gears8 forward and 2 reverseReference
Clutch330mm dry discReference
Oil capacity12.0 LReference
Typemechanical shuttleReference
Gears6 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)23.9 kWReference
PTO (tested)24.5 kWReference
Hydraulic system45.8 LReference
Typeopen centerReference
Capacity45.8 LReference
Pressure172.4 barReference
Pump flow29.1 lpmReference
Steering cap.3.4 LReference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift1331 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Engine RPM540@1800Reference
Power at rated PTO speed23.7 kWReference
Capacities
2WD Fuel49.2 LReference
4WD Fuel60.6 LReference
Steering3.4 LReference
Dimensions
2WD Wheelbase196 cmReference
4WD Wheelbase213 cmReference
Weight4420 to 4995 poundsReference
Front tire6.00-16Reference
2WD Rear tire13.6-28Reference
2WD Standard tires (ag)Front: 6.00-16. Rear: 13.6-28Reference
4WD Standard tires (ag)Front: 8.3-24. Rear: 13.6-28Reference
Length323 cmReference
Width173 cmReference
2WD Operating weight2004 kgReference
4WD Operating weight2265 kgReference
2WD Clearance (front axle)54 cmReference
4WD Clearance (front axle)33 cmReference
Clearance (rear axle)52 cmReference
2WD Front tread132 to 203 cmReference
4WD Front tread142 to 182 cmReference
Rear tread142 to 203 cmReference
Ford 2810 attachments
front-end loaderReference
2810 Serial Numbers
Location:Identification plate inside the engine compartmentReference
1983C694500Reference
1984C707400Reference
1985C732600Reference
1986C750422Reference
1987C763228Reference
1986BA74292Reference
1987BB05681Reference
1988BB31777Reference
1989BB80620Reference
1990BC26239Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Mk I Charging amps32Reference
Mk II Charging amps51Reference
Battery volts12Reference
Battery AH51Reference
Attachment overview
Ford 776A loaderReference
Ford 776B loaderReference
Ford 776F loaderReference
Ford 7309 loaderReference
Ford 2810 Height
Hood149 cmReference
ROPS237 cmReference
Exhaust206 cmReference
Test results
Diesel 8-speed 2WDSeptember 6 - 11, 1985Link: Nebraska Tractor Test 1573 fileReference
PTO performanceReference
Fuel use8.3 l/hourReference
Fuel use7.9 l/hourReference
Drawbar performanceReference
Gear 5 used for power test.Reference
Max pull1830 kgReference
Gear 2 used for pull test.Reference
Speeds
With 13.6x28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
