Tractor · 1983Unverified

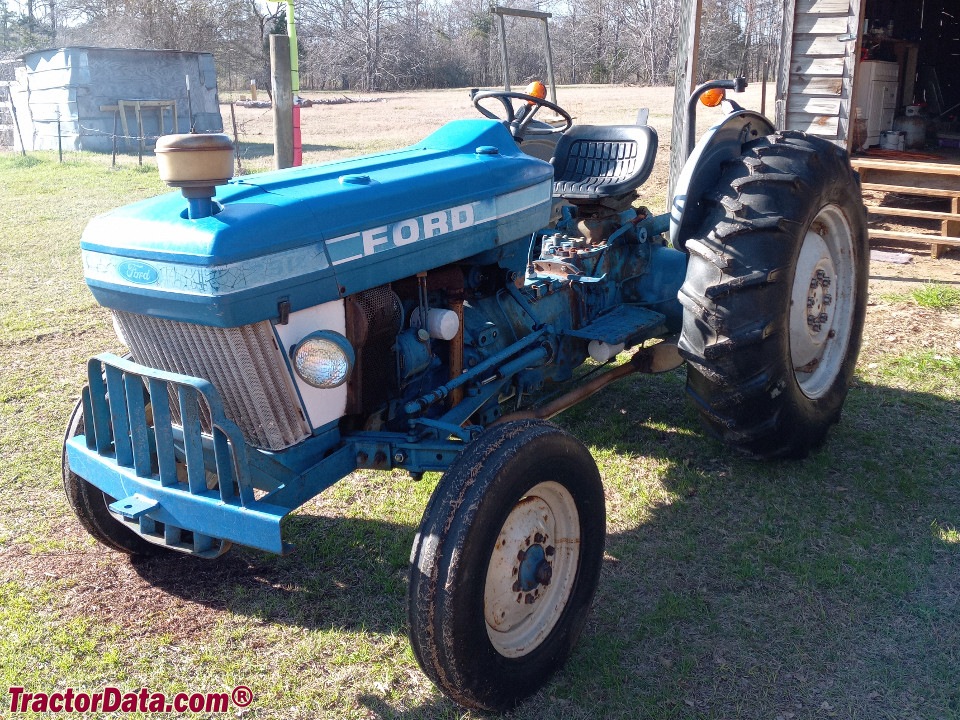

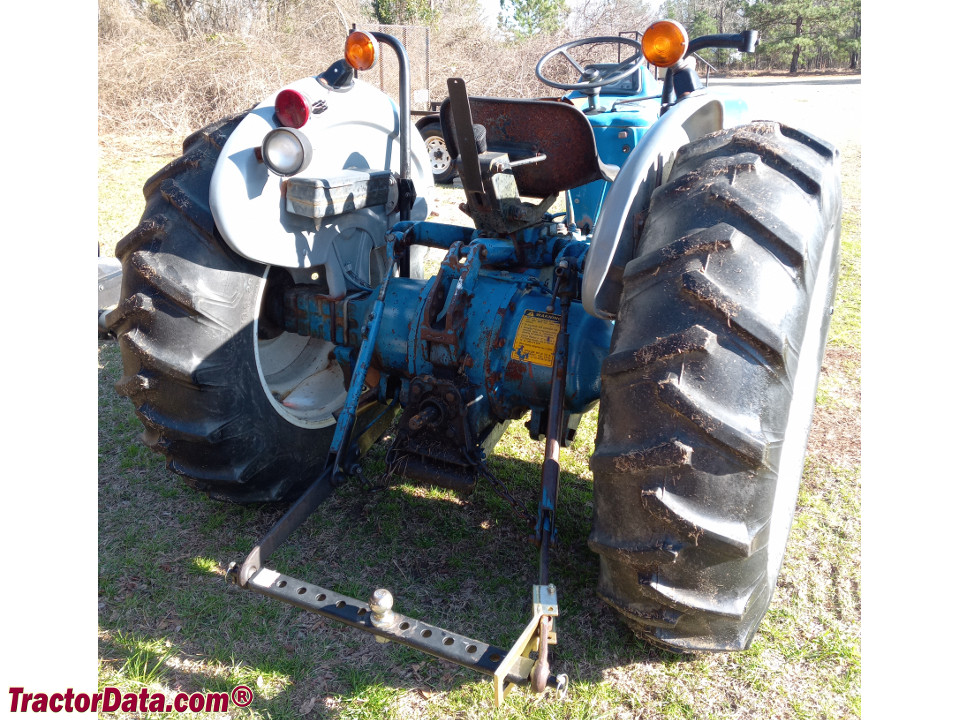

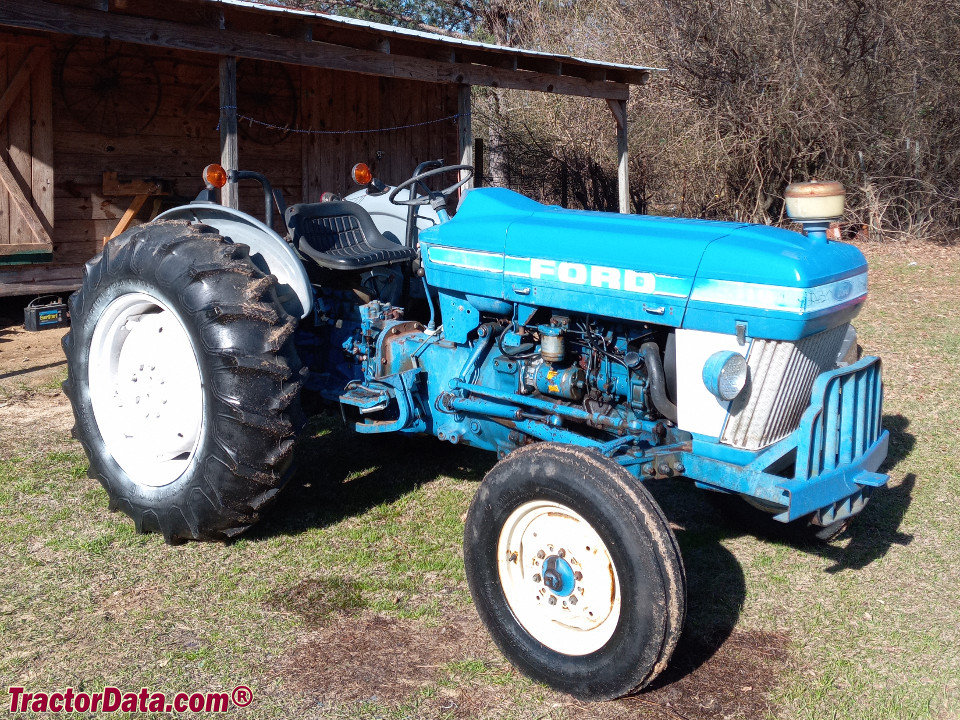

Ford 2910
Ford 2910 — 10 Utility Series · 44 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
44 hp
Max power
21.7 kW
Weight
4413 to 4948 pounds
Hover a source tag to verify
Overview
ManufacturerFordReference
Utility tractorReference
Original price was $16,000 in 1989Reference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockmechanical rearReference
Steeringpower assistReference
Differential wet disc brakesReference
Two-post fixed ROPS. Cab optional.Reference
Variants
2910utility tractorReference
2910 LCGmowing tractorReference
Engine
Ford 2.9L 3-cyl dieselReference
Engine (gross)32.8 kWReference
Engine30.2 kWReference
Drawbar (tested)21.7 kWReference
FordReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke107 x 107 mmReference
Power30.2 kWReference
Power (gross)32.8 kWReference
Air cleanerdryReference
Compression17.3:1Reference
Rated RPM2000Reference
Torque160.0 NmReference
Torque RPM1400Reference
Starter volts12Reference
Oil capacity6.6 LReference
Coolant capacity10.4 LReference
Power at rated engine speed27.3 kWReference
Max power21.7 kWReference
Power at rated engine speed27.1 kWReference
Transmission
8-speedReference
8-speed synchromeshReference
6-speed mechanical shuttleReference
TransmissionDual RangeReference
Gears8 forward and 2 reverseReference
Clutch330mm dry discReference
Oil capacity12.0 LReference
TypesynchromeshReference
Gears8 forward and 4 reverseReference
Oil capacity9.4 LReference
Typemechanical shuttleReference
Gears6 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)26.8 kWReference
PTO (tested)27.3 kWReference
Hydraulic system45.8 LReference
Typeopen centerReference
Capacity45.8 LReference
Pressure172.4 barReference
Pump flow29.1 lpmReference
Pump flow48.4 lpmReference
Steering flow13.6 lpmReference
Rear TypeIReference
Controlposition and top-link draft controlReference
Rear PTOindependentReference
Rear PTO Type540Reference
Engine RPM540@1800Reference
Power at rated PTO speed26.2 kWReference
Power at rated PTO speed25.9 kWReference
Capacities
Fuel49.2 LReference
Dimensions
2WD Wheelbase196 cmReference
4WD Wheelbase213 cmReference
Weight4413 to 4948 poundsReference
Front tire5.50-16Reference
Rear tire12.4-28Reference
Ag front5.50-16 (2WD)Reference
Ag front8.3-24 (4WD)Reference
Ag rear12.4-28Reference
Ag front6.00-16 (2WD)Reference
Ag rear16.9-24Reference
Ag rear13.6-28Reference
Length323 cmReference
Width173 cmReference
2WD Clearance (front axle)54 cmReference
4WD Clearance (front axle)33 cmReference
Clearance (rear axle)52 cmReference
2WD Front tread132 to 203 cmReference
4WD Front tread142 to 182 cmReference
Rear tread142 to 203 cmReference
2WD Operating2001 kgReference
4WD Operating2244 kgReference
Ballasted2721 kgReference
Steering wheel149 cmReference
Ford 2910 attachments
front-end loaderReference
2910 Serial Numbers
Location:Identification plate inside the engine compartmentReference
1983C694500Reference
1984C707400Reference
1985C732600Reference
1986C750422Reference
1987C763229Reference
1986BA74292Reference
1987BB05681Reference
1988BB31777Reference
1989BB84620Reference
1990BC26239Reference
1991BC68791Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Mk I Charging amps32Reference
Mk II Charging amps51Reference
Battery volts12Reference
Battery AH128Reference
Attachment overview
Ford 776A loaderReference
Ford 776B loaderReference
Ford 7309 loaderReference
Ford 7310 loaderReference
Ford 2910 Height
Hood133 cmReference
ROPS237 cmReference
Exhaust206 cmReference
Test results
NTTL 1491: diesel 8x2 2WDReference
NTTL 1492: diesel 8x4 synchro 2WDReference
Diesel 8x2 2WDSeptember 14 - 28, 1983Link: Nebraska Tractor Test 1491 fileReference
PTO performanceReference
Fuel use8.7 l/hourReference
Fuel use8.3 l/hourReference
Drawbar performanceReference
Gear 5 used for power test.Reference
Max pull1921 kgReference
Gear 2 used for pull test.Reference
Diesel 8x4 synchro 2WDSeptember 14 - 26, 1983Link: Nebraska Tractor Test 1492 fileReference
Speeds
With 13.6x28 rear tires.Reference
With 12.4x28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
