Tractor · 1942Unverified
Ford 2N
Ford 2N — N Series · 17 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
17 hp
Weight
1392 kg
Hover a source tag to verify
Overview
ManufacturerFordReference
Utility tractorReference
Built in Dearborn, Michigan, USAReference
Original price$1,120Reference

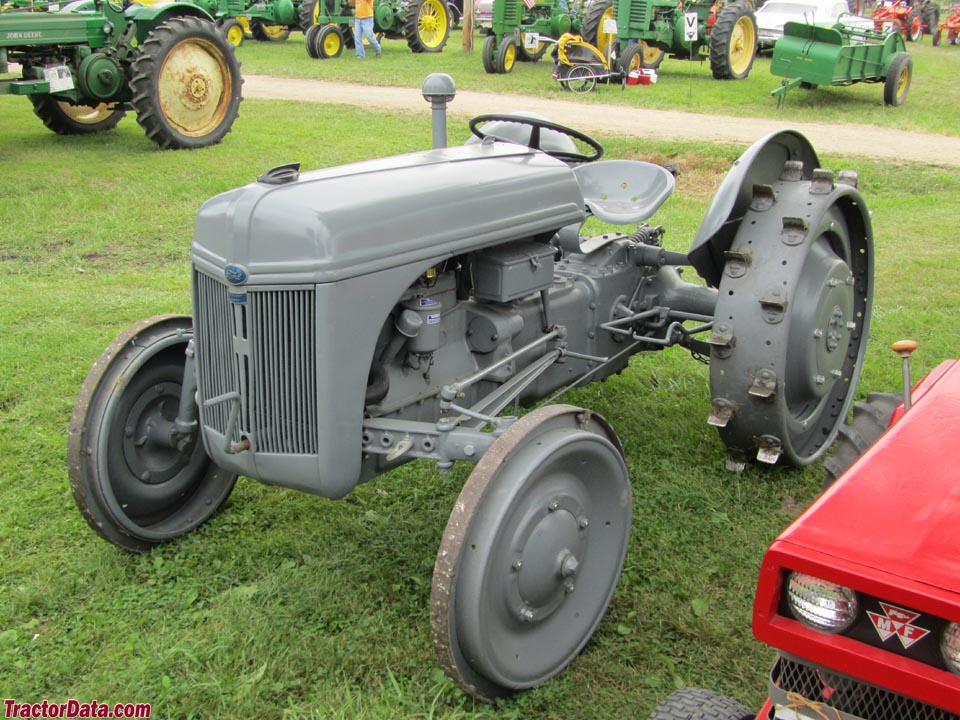

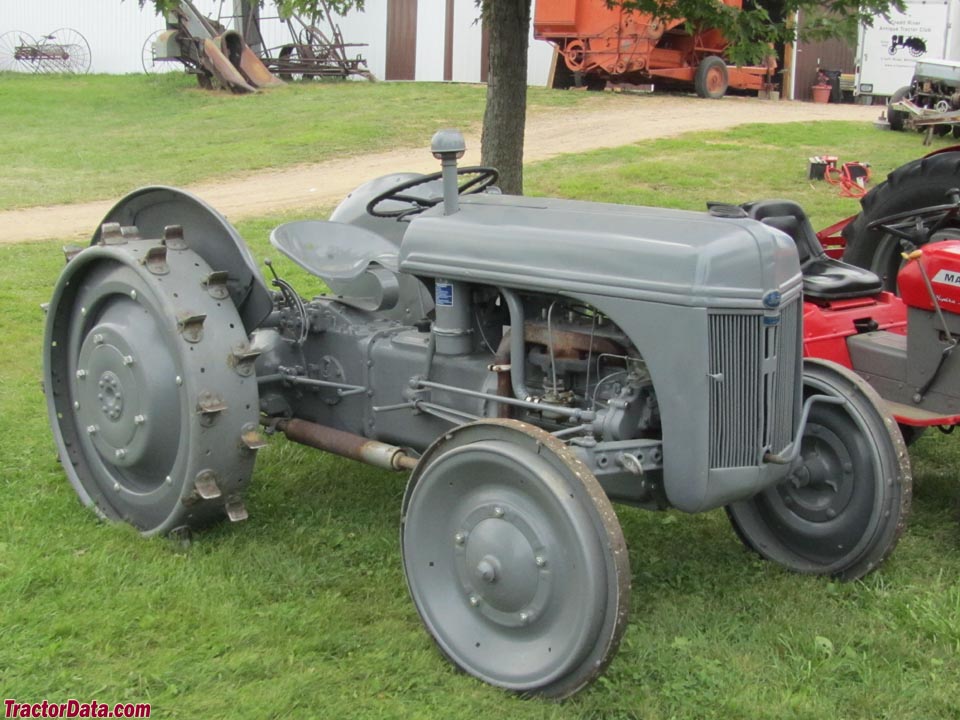

The Ford 2N was a variation on the 9N introduced due to World War II. By designating a new model, Ford was able bypass wartime restrictions on price. The 2N has some component changes due to wartime shortages. The battery and alternator were eliminated, and replaced with a magneto and hand-crank start. Also, steel wheels became standard equipment.Reference
Two-wheel driveReference
Manual steeringReference
Differential mechanical drum brakesReference
Open operator stationReference
Engine
Ford 2.0L 4-cyl gasolineReference
Fuel tank37.9 LReference
Drawbar (claimed)12.6 kWReference
Belt (claimed)17.8 kWReference
FordReference
gasolineReference
4-cylinderReference
liquid-cooled inlineReference
Displacement2.0 LReference
Bore/Stroke81 x 95 mmReference
Compression6.0 : 1Reference
Rated RPM2000Reference
Torque113.9 NmReference
Torque RPM1500Reference
Firing order1-2-4-3Reference
Starter volts6Reference
Coolant capacity11.4 LReference
Sparkplug gap0.635 mmReference
Point gap0.381 mmReference
Intake valve clearance0.381 mmReference
Exhaust valve clearance0.381 mmReference
Oil capacity5.7 LReference
Oil change200 hReference
Transmission
3-speed gearReference
TypegearReference
Gears3 forward and 1 reverseReference
Oil capacity18.9 LReference
Oil type[0oC]Reference
32oF [0oC]↑: SAE90 GL1Reference
32oF [0oC]↓: SAE80 GL1Reference
PTO & Hydraulics
Rear Type1Reference
Rear lift362 kgReference
Rear PTOtransmissionReference
Rear PTO Type545 (1.125)Reference
Dimensions
Weight1392 kgReference
Front tire4.00-19Reference
Rear tire10.00x28Reference
Ag front4.00-19Reference
Ag rear10.00x28Reference
Length292 cmReference
Width162 cmReference
Height132 cmReference
Ground clearance33 cmReference
Front tread121 to 193 cmReference
Rear tread121 to 193 cmReference
2N Serial Number Location
Serial number stamped into te engine block, left-hand side, just behind oil filter.Reference
2N Serial Numbers
19429N99047Reference
19439N105412Reference
19449N126575Reference
19459N170018Reference
19469N198767Reference
19479N258540Reference
Final9N306221Reference
FAQ: How to read a serial number table.Reference
Links
N Tractor Club: official siteReference
Electrical
GroundpositiveReference
Charging systemgeneratorReference
Charging amps16Reference
Charging volts6Reference
Battery volts6Reference
Speeds
Speeds with 10x28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
