Tractor · 1965Unverified

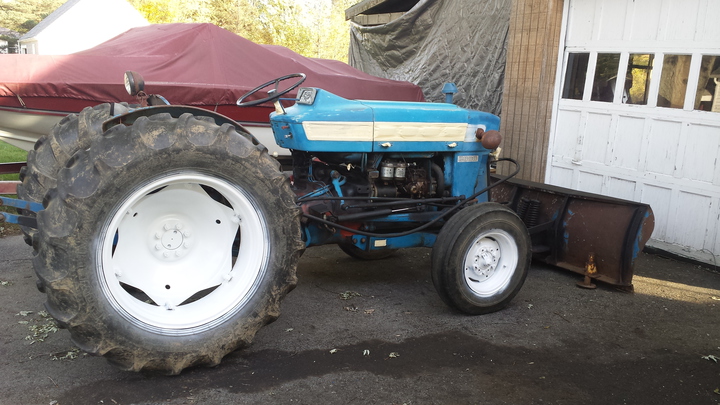

Ford 3300
Ford 3300 — Orchard/Vineyard tractor · 39 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
39 hp
Weight
1428 kg
Hover a source tag to verify
Overview
ManufacturerFordReference
Orchard/Vineyard tractorReference
Built in Highland Park, Michigan, USAReference
Two-wheel driveReference
Differential lockmechanical rearReference
Manual steeringReference
Mechanical expanding shoe brakesReference
Open operator station.Reference
Variants
3100all-purposeReference
3300vineyardReference
3310narrow chassisReference
Engine
Ford 2.9L 3-cyl dieselReference
Plows3Reference
FordReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke107 x 107 mmReference
Air cleaneroil bathReference
Compression16.5:1Reference
Rated RPM2000Reference
Firing order1-2-3Reference
Starter volts12Reference
Oil capacity7.6 LReference
Transmission
10-speed full power shiftReference
8-speedReference
TransmissionSelect-O-SpeedReference
Typefull power shiftReference
Gears10 forward and 2 reverseReference
Oil capacity10.4 LReference
Oil typeESN-M2C41-AM2C41Reference
Oil typeESN-M2C41-AReference
Oil typeM2C41Reference
Transmission can shifted between gears while moving.Reference
Gears8 forward and 2 reverseReference
Oil capacity12.5 LReference
Oil typeESN-M2C77AM-4864-AReference
Oil typeESN-M2C77AReference
Oil typeM-4864-AReference
Four-speed gear selector on left, high-low range select lever on right. Tractor must be stopped before shifting.Reference
PTO & Hydraulics
PTO (claimed)29.2 kWReference
Hydraulic system23.8 LReference
Typeopen centerReference
Capacity23.8 LReference
Pressure172.4 barReference
Pump flow18.9 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)771 kgReference
Rear PTOtransmissionReference
Rear PTOliveReference
Rear PTOindependentReference
Rear PTO Type540Reference
Rear PTO Type540/1000Reference
Capacities
Fuel49.2 LReference
Dimensions
Wheelbase203 cmReference
Weight1428 kgReference
Front tire5.50-16Reference
Rear tire11.2-28Reference
Ag front5.50-16Reference
Ag rear11.2-28Reference
Ag front4.50-16Reference
Ag rear12.4-28Reference
Length322 cmReference
Width113 cmReference
Height (hood)132 cmReference
Shipping weight1428 kgReference
Ground clearance31 cmReference
Front tread83 to 119 cmReference
Rear tread76 to 132 cmReference
3300 Serial Numbers
Location:Transmission, front upper-right corner, stamped into top of castingReference
1965C100000Reference
1966C124200Reference
1967C161300Reference
1968C190200Reference
1969C226000Reference
1970C257600Reference
1971C292100Reference
1972C327200Reference
1973C367300Reference
1974C405200Reference
1975C450700Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemgeneratorReference
Charging amps22Reference
Battery volts12Reference
Battery AH128Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
