Industrial Tractor · 1965Unverified

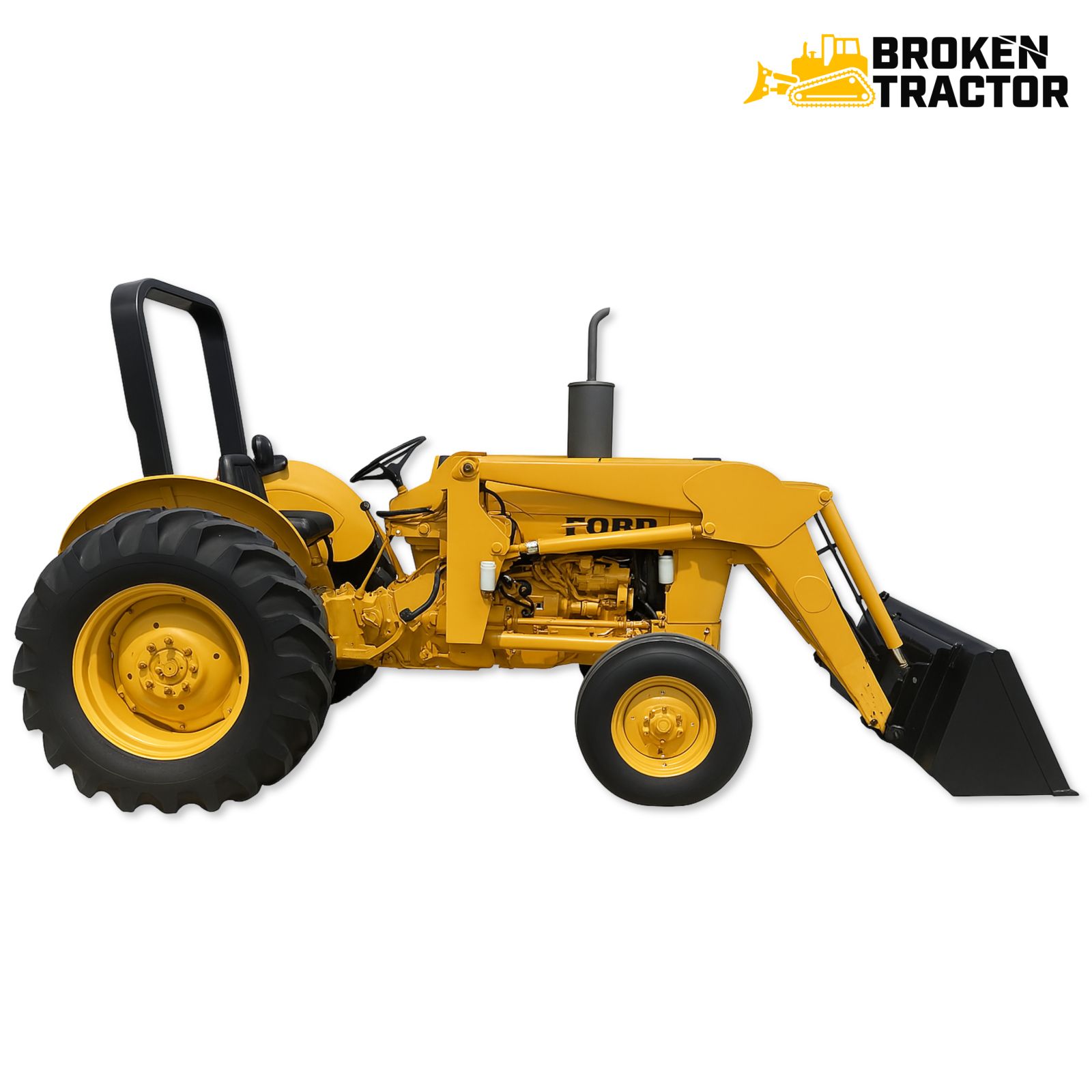

Ford 3400
Ford 3400 — Industrial tractor · 47 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
47 hp
Weight
3576 to 3723 pounds
Hover a source tag to verify
Overview
ManufacturerFordReference
Industrial tractorReference
Built in Highland Park, Michigan, USAReference
Two-wheel driveReference
Final drivesbevel gearReference
Differential lockmechanical rearReference
SteeringmanualReference
SteeringpowerReference
Mechanical expanding shoe brakesReference
Open operator station. Two- or four-post ROPS optionalReference
Engine
Ford 2.9L 3-cyl dieselReference
Ford 2.6L 3-cyl gasolineReference
Engine (net)34.8 kWReference
FordReference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement2.9 LReference
Bore/Stroke107 x 107 mmReference
Power (net)32.9 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Compression16.5:1Reference
Rated RPM2000Reference
Torque169.5 NmReference
Torque RPM1150Reference
Firing order1-2-3Reference
Starter volts12Reference
Coolant capacity13.1 LReference
Oil capacity7.6 LReference
gasolineReference
Displacement2.6 LReference
Bore/Stroke107 x 97 mmReference
Power (net)34.8 kWReference
Fuel systemcarburetorReference
Compression8:1Reference
Rated RPM2100Reference
Torque166.8 NmReference
Torque RPM1350Reference
Transmission
4-speed gearReference
6-speed gearReference
6-speed mechanical shuttleReference
8-speed gearReference
12-speed gearReference
10-speed full power shiftReference
TypegearReference
Gears4 forward and 1 reverseReference
Clutchdry discReference
Gears6 forward and 2 reverseReference
Oil capacity13.6 LReference
TransmissionManual ReversingReference
Typemechanical shuttleReference
Gears6 forward and 4 reverseReference
Oil capacity13.1 LReference
Three speeds forward, two reverse, in two ranges.Reference
TransmissionDual RangeReference
Gears8 forward and 2 reverseReference
Oil capacity12.5 LReference
Four gears, plus reverse, in two ranges.Reference
TransmissionOver-UnderReference
Gears12 forward and 3 reverseReference
Oil capacity6.6 LReference
The over-under auxiliary gearbox provides two additional speed ranges to the basic four-speed transmission.Reference
TransmissionSelect-O-SpeedReference
Typefull power shiftReference
Gears10 forward and 2 reverseReference
Oil capacity11.4 LReference
PTO & Hydraulics
Gas PTO (claimed)29.2 kWReference
Diesel PTO (claimed)29.5 kWReference
Hydraulic system23.3 LReference
Typeopen centerReference
Capacity23.3 LReference
Pressure172.4 barReference
Pressure124.1 barReference
Valves0 to 2Reference
Pump flow18.2 lpmReference
Pump flow59.8 lpmReference
Total flow18.2 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)771 kgReference
Rear PTOtransmissionReference
Rear PTOliveReference
Rear PTOindependentReference
Rear PTO Type540Reference
Capacities
Fuel49.2 LReference
Dimensions
Wheelbase203 cmReference
Weight3576 to 3723 poundsReference
Rear tire14.9-24Reference
Weight1185 kgReference
Ag front6.00-16Reference
Ag rear12.4-28Reference
Ag front6.50-16Reference
Ag front7.50-16Reference
Ag rear13.6-28Reference
Ag rear14.9-24Reference
Ag rear16.9-24Reference
Lawn/turf rear13.6-28Reference
Lawn/turf rear16.9-24Reference
Industrial rear14.9-24Reference
Industrial rear16.9-24Reference
Length306 cmReference
Width163 cmReference
Gas Shipping weight1622 kgReference
Diesel Shipping weight1688 kgReference
Clearance (front axle)34 cmReference
Front tread137 cmReference
Rear tread132 to 193 cmReference
Steering wheel147 cmReference
Ford 3400 attachments
front-end loaderReference
backhoeReference
3400 Serial Numbers
Location:Serial number plate inside the Ford 3400 hood panel, on the right side.Reference
Electrical
GroundnegativeReference
Charging systemgeneratorReference
Charging amps22Reference
Battery volts12Reference
Gasoline Battery AH80Reference
Diesel Battery AH128Reference
Attachment overview
Ford 1200 loaderReference
Ford 730 loaderReference
BackhoeReference
Ford 750 Backhoe
Backhoe typeFord 750 BackhoeReference
Transport height266 cmReference
Bucket width60 cmReference
Digging depth327 cmReference
2-Foot flat digging depth317 cmReference
Reach from pivot431 cmReference
Loading height251 cmReference
Bucket Rotation172°Reference
Swing Arc185°Reference
Dipperstick force3674 kgReference
Ford 3400 Height
Hood138 cmReference
ROPS225 cmReference
Exhaust211 cmReference
Speeds
With 28-inch rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
