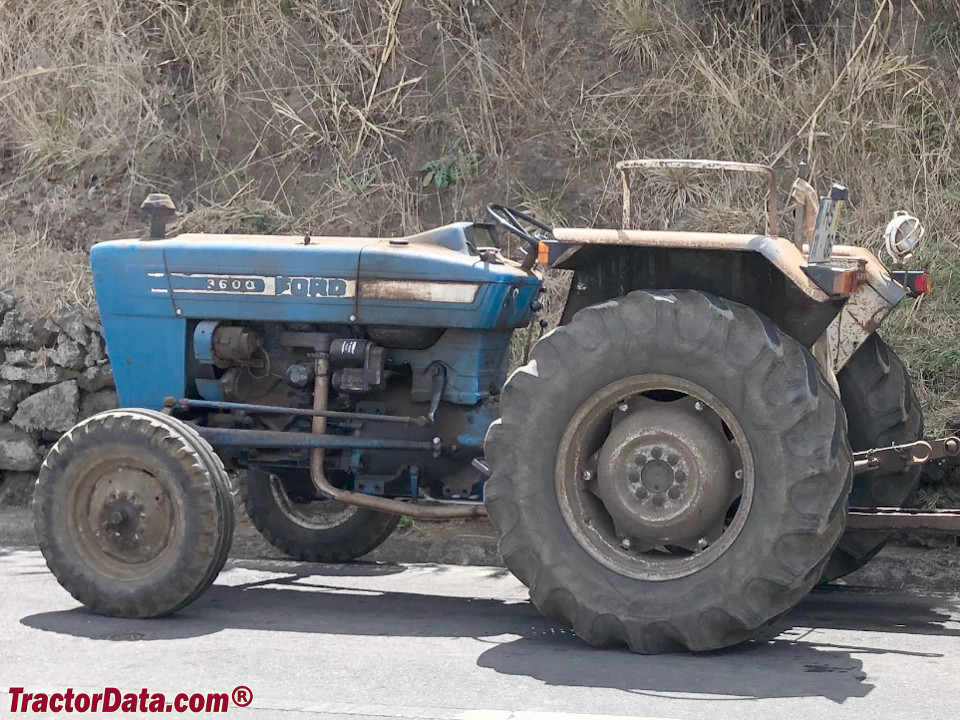

The Ford 3600 Narrow is a tractor model with an approximate power rating of 40 hp, positioning it at the lower end of its class. It was manufactured from 1975 to 1981. The tractor features a 3-cylinder diesel liquid-cooled engine, paired with a two-wheel drive system and an 8-speed gearbox. It is suitable for operations of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
40 hp
Catalogue coverage
Variants represented
2
Richest spec table
55 rows
Recorded power
40 hp
Transmissions
8-speed gear
Production years
1975-1981
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerFordReference
Orchard/Vineyard tractorReference
Two-wheel driveReference
Differential lockmechanical rearReference
Manual steeringReference
Mechanical drum brakesReference
Open operator station.Reference
Variants
3600utilityReference
3600-NnarrowReference
3600-OorchardReference
Engine
Ford 2.9L 3-cyl dieselReference
Engine35.0 kWReference
FordReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke107 x 107 mmReference
Power35.0 kWReference
Rated RPM2000Reference
Torque181.7 NmReference
Torque RPM1200Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutch279.4mm dry discReference
PTO & Hydraulics
PTO (claimed)29.8 kWReference
Typeopen centerReference
Pressure172.4 barReference
Rear valves1Reference
Pump flow31.4 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2000Reference
Dimensions
Wheelbase195 cmReference
Front tire5.50x16Reference
Rear tire10x28Reference
Standard tires (ag)Front: 5.50x16. Rear: 10x28Reference
Length322 cmReference
Width135 cmReference
Height (steering wheel)147 cmReference
Height (hood)133 cmReference
Clearance (front axle)54 cmReference
Front tread111 to 152 cmReference
Rear tread104 to 155 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps28Reference
Charging amps46Reference
Battery volts12Reference
Battery AH80Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
