Tractor · 1982Unverified

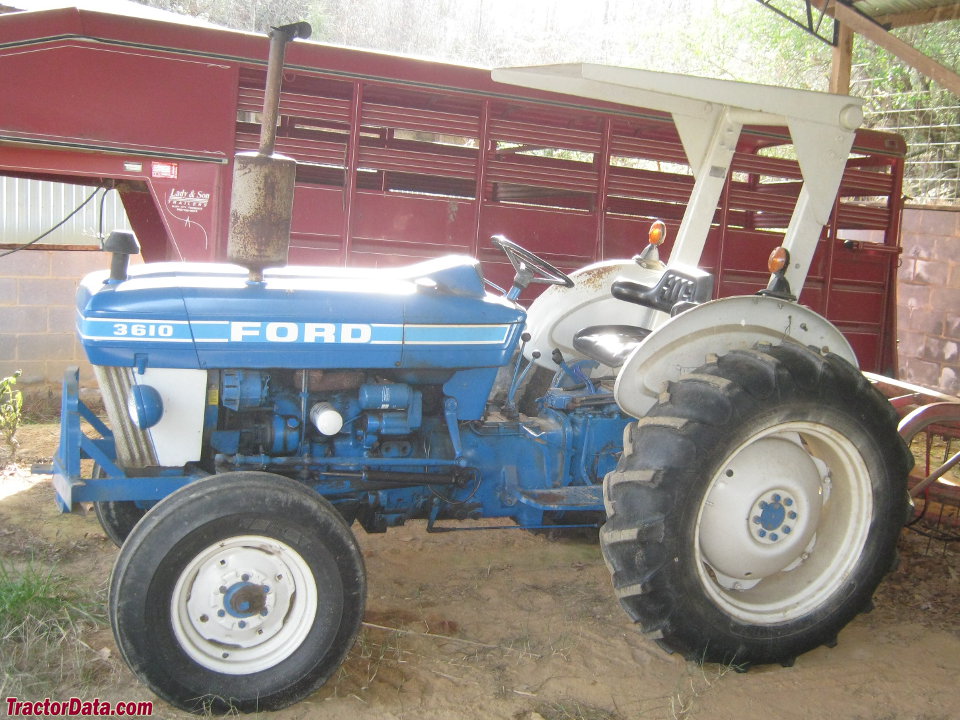

Ford 3610
Ford 3610 — 10 Utility Series · 50 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
50 hp
Max power
25.2 kW
Weight
1662 kg
Hover a source tag to verify
Overview
ManufacturerFordReference
Utility tractorReference
Original price was $14,500 in 1983Reference
Two-wheel driveReference
Steeringpower assistReference
Drum brakesReference
Two-post ROPS.Reference
Engine
Ford 3.1L 3-cyl dieselReference
Ford 2.9L 3-cyl gasolineReference
Engine (gross)37.1 kWReference
Engine35.4 kWReference
Drawbar (claimed)26.8 kWReference
Drawbar (tested)26.7 kWReference
FordReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.1 LReference
Bore/Stroke112 x 107 mmReference
Power35.4 kWReference
Power (gross)37.1 kWReference
Air cleanerdryReference
Compression16.3:1Reference
Rated RPM2000Reference
Torque177.0 NmReference
Torque RPM1400Reference
Starter volts12Reference
Oil capacity6.6 LReference
Coolant capacity10.4 LReference
gasolineReference
Displacement2.9 LReference
Bore/Stroke107 x 107 mmReference
Power32.8 kWReference
Power (gross)34.3 kWReference
Compression7.75:1Reference
Torque183.1 NmReference
Torque RPM1100Reference
Power at rated engine speed30.3 kWReference
Max power25.2 kWReference
Power at rated engine speed31.5 kWReference
Max power26.7 kWReference
Power at rated engine speed31.7 kWReference
Max power25.5 kWReference
Transmission
8-speedReference
8-speed synchromeshReference
TransmissionDual RangeReference
Gears8 forward and 2 reverseReference
Oil capacity11.5 LReference
TypesynchromeshReference
Gears8 forward and 4 reverseReference
Oil capacity9.4 LReference
PTO & Hydraulics
Diesel PTO (claimed)31.3 kWReference
Gas PTO (claimed)29.8 kWReference
PTO (tested)31.7 kWReference
TypeliveReference
Pressure172.4 barReference
Pump flow32.2 lpmReference
Steering flow13.6 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)471 kgReference
Rear PTOliveReference
Rear PTO Type540Reference
Power at rated PTO speed28.6 kWReference
Power at rated PTO speed30.0 kWReference
Power at rated PTO speed29.8 kWReference
Capacities
Fuel49.2 LReference
Rear axle23.3 LReference
Dimensions
Wheelbase192 cmReference
Weight1662 kgReference
Front tire6.00-16Reference
Rear tire13.6-28Reference
Ag front6.00-16Reference
Ag rear13.6-28Reference
Ag front5.50-16Reference
Ag front6.50-16Reference
Ag front7.50-15Reference
Ag front7.50-16Reference
Ag rear14.9-24Reference
Ag rear16.9-24Reference
Ag rear14.9-28Reference
Length322 cmReference
Width162 cmReference
Height (hood)137 cmReference
Shipping weight1662 kgReference
Ballasted weight3129 kgReference
Ground clearance34 cmReference
Front tread132 to 203 cmReference
Rear tread132 to 193 cmReference
Ford 3610 attachments
front-end loaderReference
3610 Serial Numbers
1982C682000Reference
1983C684500Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps32Reference
Battery volts12Reference
Diesel Battery AH128Reference
Gas Battery AH77Reference
Attachment overview
Ford 730 loaderReference
Ford 776A loaderReference
Ford 776B loaderReference
Test results
NTTL 1226: gasoline 8x2 2WDReference
NTTL 1422: diesel 8x2 2WDReference
NTTL 1423: diesel 8x4 2WDReference
Gasoline 8x2 2WDSeptember 23 - October 14, 1976Link: Nebraska Tractor Test 1226 fileReference
PTO performanceReference
Fuel use14.4 l/hourReference
Fuel use12.9 l/hourReference
Drawbar performanceReference
Fuel use14.0 l/hourReference
Gear 4 used for power test.Reference
Max pull2323 kgReference
Gear 2 used for pull test.Reference
Diesel 8x2 2WDApril 23 - May 12, 1982Link: Nebraska Tractor Test 1422 fileReference
Fuel use10.2 l/hourReference
Fuel use9.5 l/hourReference
Gear 5 used for power test.Reference
Max pull2251 kgReference
Diesel 8x4 2WDMarch 16 - April 1, 1982Link: Nebraska Tractor Test 1423 fileReference
Max pull2230 kgReference
Speeds
With 13.6x28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
