Tractor · 1992Unverified

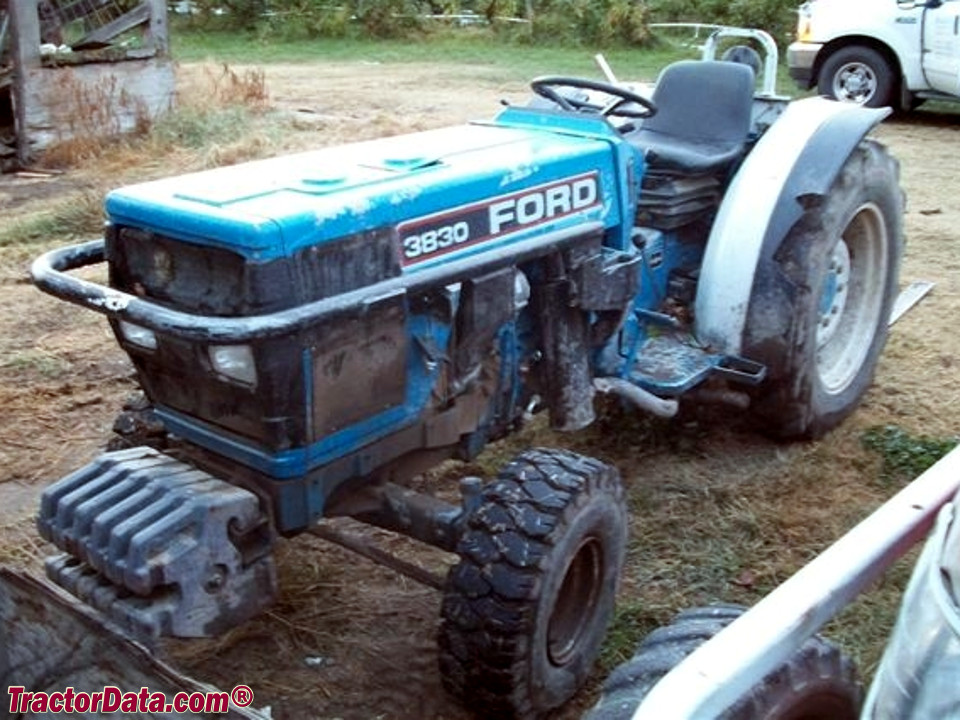

Ford 3830
Ford 3830 — Orchard/Vineyard tractor · 45 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
45 hp
Weight
3851 to 4035 pounds
Hover a source tag to verify
Overview
DistributorFordReference
ManufacturerFiatReference
Orchard/Vineyard tractorReference
The Ford/New Holland 3830 is the same as the Fiat 55-86.Reference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockmechanical rearReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post mid-mount folding ROPS.Reference
Engine
Fiat 2.7L 3-cyl dieselReference
FiatReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke100 x 115 mmReference
Pre-heatingthermostartReference
Rated RPM2500Reference
Starter volts12Reference
Transmission
12-speed gearReference
12-speed shuttleReference
TypegearReference
Gears12 forward and 4 reverseReference
TypeshuttleReference
Gears12 forward and reverseReference
PTO & Hydraulics
PTO (claimed)33.6 kWReference
Hydraulic system42.8 LReference
Typeopen centerReference
Capacity42.8 LReference
Pressure188.9 barReference
Valves2 or 3Reference
Pump flow41.6 lpmReference
Steering flow30.7 lpmReference
Steering press.70.0 barReference
Rear TypeIReference
Controlposition control and lower-link draft sensingReference
Rear lift1960 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Capacities
Fuel45.0 LReference
Dimensions
2WD Wheelbase184 cmReference
4WD Wheelbase191 cmReference
Weight3851 to 4035 poundsReference
Front tire5.50x16Reference
2WD Rear tire11.2x24Reference
2WD Standard tires (ag)Front: 5.50x16. Rear: 11.2x24Reference
4WD Standard tires (ag)Front: 6.00x16. Rear: 11.2x24Reference
2WD Length327 cmReference
4WD Length328 cmReference
Width124 cmReference
2WD Weight1746 kgReference
4WD Weight1830 kgReference
2WD Clearance (front axle)37 cmReference
4WD Clearance (front axle)21 cmReference
2WD Front tread104 to 114 cmReference
4WD Front tread99 to 124 cmReference
Rear tread88 to 119 cmReference
2WD Steering wheel131 cmReference
4WD Steering wheel127 cmReference
3830 Serial Numbers
1992F399000Reference
1993F399354Reference
1994F022000Reference
1995F051000Reference
19961080190Reference
19971105511Reference
19981130047Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps33Reference
Battery volts12Reference
Ford 3830 Height
2WD Hood118 cmReference
4WD Hood113 cmReference
2WD ROPS208 cmReference
4WD ROPS204 cmReference
Speeds
With 11.2x24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
