Tractor · Unverified

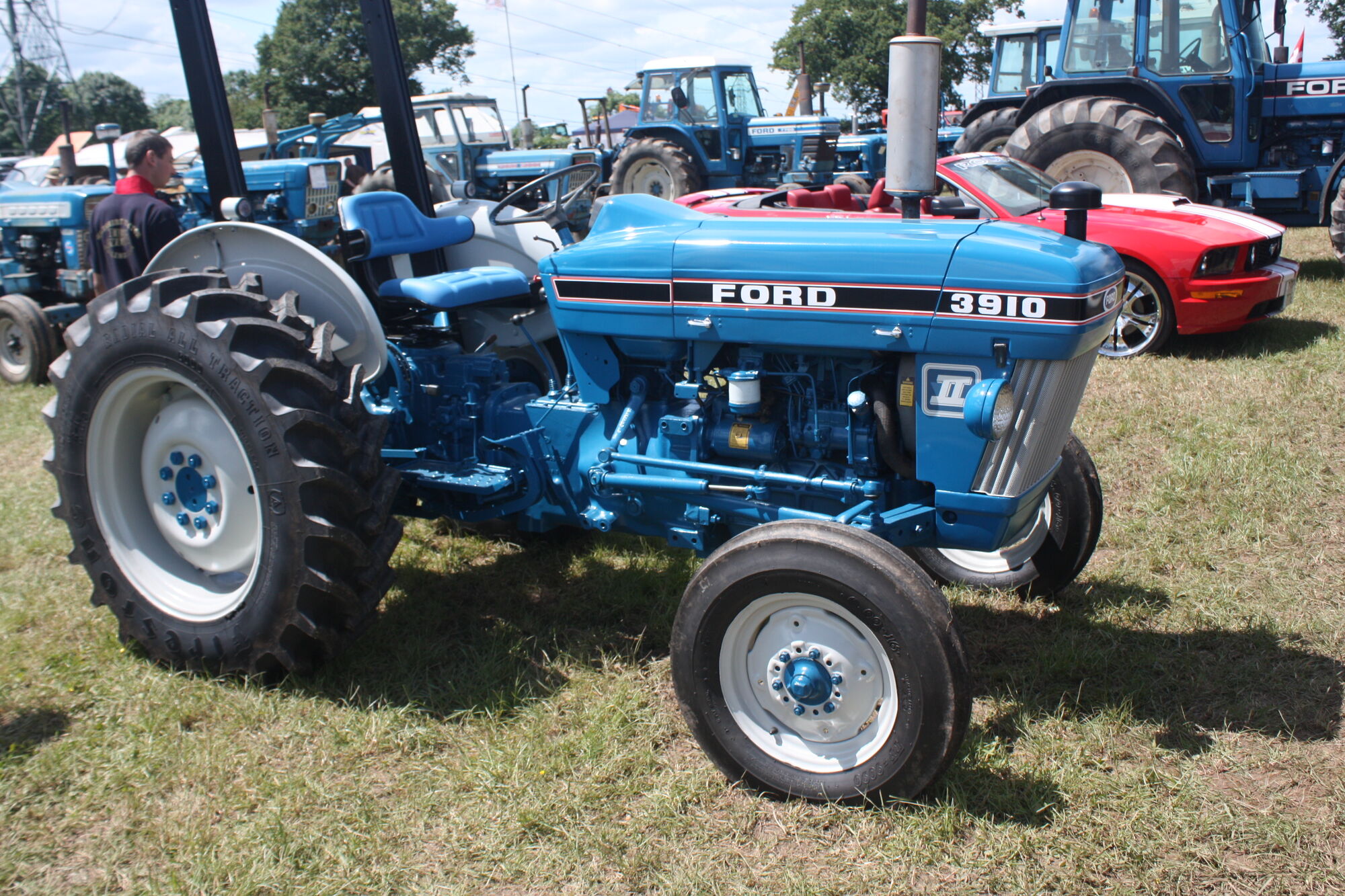

Ford 3910 Narrow

Name: Ford 3910 Narrow
Brand: Ford

Ford 3910 Narrow — 10 SeriesOrchard/Vineyard tractor · 51 hp. Reference specifications; pending source verification.

The Ford 3910 Narrow is a tractor rated at 51 hp — making it one of the more compact options in its class. Under the hood is a 3-cylinder diesel liquid-cooled engine, driving through four-wheel drive with a 8-speed gearbox. Listed weight is 2020 kg, and it is aimed at jobs of around up to 200 ac. Available dimensions and performance figures follow in both unit systems.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

51 hp

Weight

2020 kg

Catalogue coverage

Variants represented

Richest spec table

73 rows

Recorded power

51 hp

Recorded weight

2020 kg

Transmissions

8-speed gear

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFordReference

Orchard/Vineyard tractorReference

Two- or four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Open operator station.Reference

Variants

3910utilityReference

3910NnarrowReference

3910NOlow-profileReference

Engine

Ford 3.1L 3-cyl dieselReference

Engine (gross)38.0 kWReference

FordReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement3.1 LReference

Bore/Stroke112 x 107 mmReference

Power (gross)38.0 kWReference

Air cleanerdryReference

Pre-heatingthermostartReference

Compression16.3:1Reference

Rated RPM2000Reference

StarterelectricReference

Starter volts12Reference

Oil capacity6.6 LReference

Coolant capacity10.4 LReference

Transmission

8-speed gearReference

TypegearReference

Gears8 forward and 2 reverseReference

Clutch330mm dry discReference

Oil capacity11.5 LReference

PTO & Hydraulics

PTO (claimed)31.3 kWReference

Hydraulic system45.8 LReference

Typeopen centerReference

Capacity45.8 LReference

Pressure172.4 barReference

Pump flow29.1 lpmReference

Steering flow13.6 lpmReference

Rear TypeIReference

Controlposition and draft controlReference

Rear lift (at ends)1397 kgReference

Rear PTOindependentReference

Rear PTO Type540Reference

Engine RPM540@1800Reference

Capacities

2WD Fuel49.2 LReference

4WD Fuel60.6 LReference

Dimensions

2WD Wheelbase214 cmReference

4WD Wheelbase213 cmReference

Weight2020 kgReference

Front tire5.50x16Reference

2WD Rear tire12.4x28Reference

2WD Standard tires (ag)Front: 5.50x16. Rear: 12.4x28Reference

4WD Standard tires (ag)Front: 7.50-18. Rear: 12.4-28Reference

2WD Length313 cmReference

4WD Length318 cmReference

2WD Width131 cmReference

4WD Width132 cmReference

2WD Clearance (front axle)43 cmReference

4WD Clearance (front axle)25 cmReference

Clearance (rear axle)30 cmReference

2WD Front tread115 to 158 cmReference

4WD Front tread113 to 154 cmReference

Rear tread99 to 161 cmReference

2WD Steering wheel150 cmReference

4WD Steering wheel151 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps46Reference

Battery volts12Reference

Battery AH128Reference

Ford 3910 Narrow Height

2WD ROPS223 cmReference

4WD ROPS236 cmReference

Speeds

With 12.4x28 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
