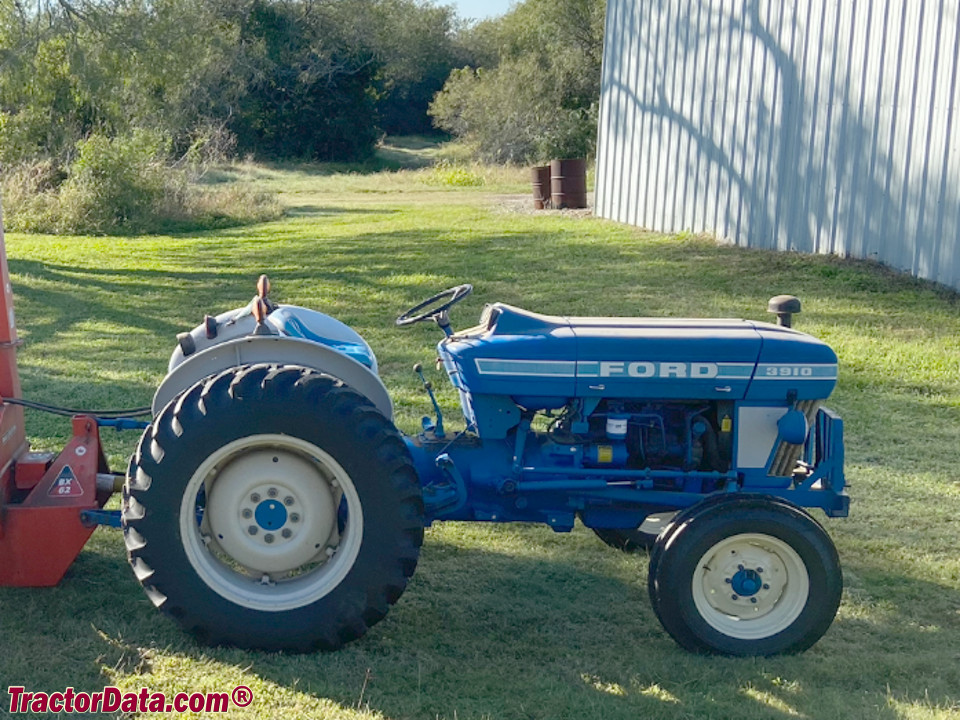

Ford 3910 Narrow Orchard
Ford 3910 Narrow Orchard — 10 SeriesOrchard/Vineyard tractor · 51 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
51 hp
Weight
4513 to 4563 pounds
Hover a source tag to verify
Overview
ManufacturerFordReference
Orchard/Vineyard tractorReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post fixed ROPS.Reference
Variants
3910utilityReference
3910NnarrowReference
3910NOlow-profileReference
Engine
Ford 3.1L 3-cyl dieselReference
Engine (gross)38.0 kWReference
FordReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.1 LReference
Bore/Stroke112 x 107 mmReference
Power (gross)38.0 kWReference
Fuel systemdirect injectionReference
Pre-heatingthermostartReference
Compression16.3:1Reference
Rated RPM2000Reference
StarterelectricReference
Starter volts12Reference
Oil capacity6.6 LReference
Coolant capacity10.4 LReference
Transmission
8-speed gearReference
8-speed synchromeshReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutch330mm dry discReference
Oil capacity11.5 LReference
TypesynchromeshReference
Gears8 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)31.3 kWReference
Hydraulic system45.8 LReference
Typeopen centerReference
Capacity45.8 LReference
Pressure172.4 barReference
Pump flow29.1 lpmReference
Rear TypeIReference
Rear lift (at ends)1397 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Engine RPM540@1800Reference
Capacities
2WD Fuel49.2 LReference
4WD Fuel60.6 LReference
Dimensions
2WD Wheelbase200 cmReference
4WD Wheelbase213 cmReference
Weight4513 to 4563 poundsReference
Front tire9.00x10Reference
2WD Rear tire18.4x16Reference
2WD Standard tires (ag)Front: 9.00x10. Rear: 18.4x16Reference
4WD Standard tires (ag)Front: 7.50x16. Rear: 18.4x16Reference
Length307 cmReference
2WD Width156 cmReference
4WD Width168 cmReference
2WD Shipping weight2047 kgReference
4WD Shipping weight2069 kgReference
2WD Clearance (front axle)40 cmReference
4WD Clearance (front axle)22 cmReference
2WD Clearance (rear axle)22 cmReference
4WD Clearance (rear axle)20 cmReference
2WD Front tread142 to 193 cmReference
4WD Front tread113 to 154 cmReference
Rear tread121 to 129 cmReference
2WD Steering wheel138 cmReference
4WD Steering wheel144 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps46Reference
Battery volts12Reference
Battery AH128Reference
Ford 3910 Narrow Orchard Height
2WD ROPS212 cmReference
4WD ROPS226 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
