Tractor · 1990Unverified

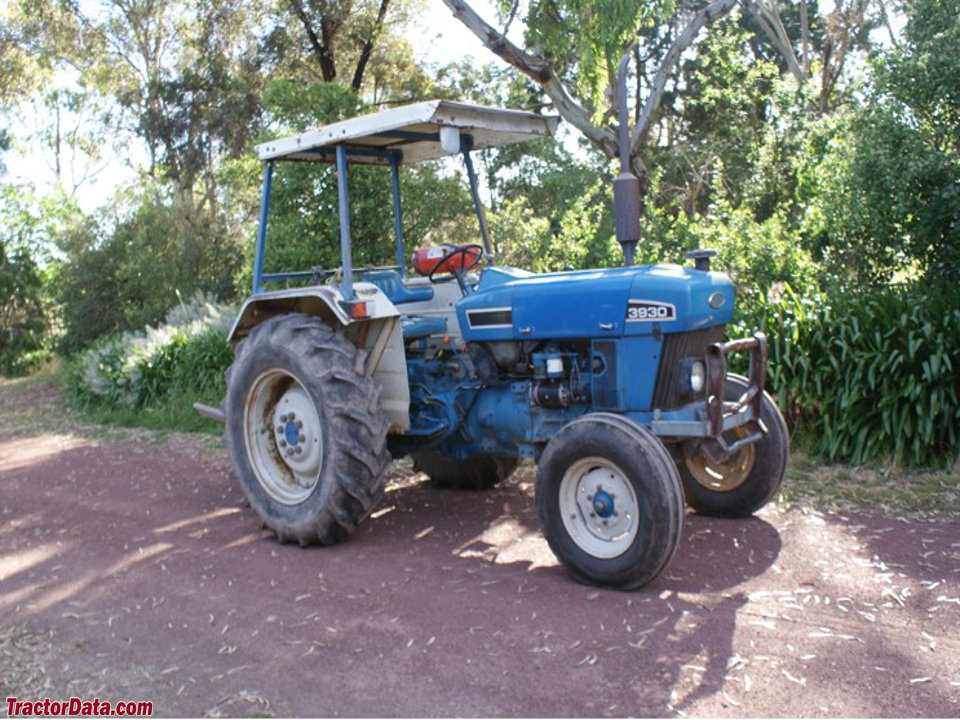

Ford 3930

Name: Ford 3930
Brand: Ford

Ford 3930 — 30 Utility Series · 46 hp. Reference specifications; pending source verification.

The Ford 3930 is a compact tractor with a rated output of 46 hp. It was manufactured between 1990 and 2002. The tractor features a 3-cylinder turbocharged diesel liquid-cooled engine, which sends power through a four-wheel drive system and an 8-speed gearbox. Its listed weight ranges from 5157 to 6025 pounds, suitable for tasks on approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

46 hp

Max power

28.5 kW

Weight

5157 to 6025 pounds

Catalogue coverage

Variants represented

Richest spec table

136 rows

Recorded power

46 hp

Transmissions

8-speed gear

Production years

1990-2002

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFordReference

Utility tractorReference

Built in Basildon, EnglandReference

Original price$24,400 (1999 2WD )Reference

Original price$29,900 (1999 4WD )Reference

Two- or four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Two-post ROPS. Cab optional.Reference

Engine

Ford 3.3L 3-cyl dieselReference

Ford 3.2L 3-cyl dieselReference

ROPS Fuel tank65.5 LReference

Cab Fuel tank95.8 LReference

Drawbar (tested)28.5 kWReference

FordReference

dieselReference

3-cylinderReference

liquid-cooledReference

Original engine, used until 1995.Reference

Displacement3.3 LReference

Bore/Stroke112 x 112 mmReference

Compression16.3:1Reference

Rated RPM2000Reference

Starter volts12Reference

The 3.1-liter engine was introduced in 1995, tractor serial number BD81400.Reference

Displacement3.2 LReference

Bore/Stroke112 x 107 mmReference

Air cleanerdual paper elementsReference

Rated RPM2200Reference

turbocharged dieselReference

The turbocharged 3.1-liter engine was introduced in 1999.Reference

Power at rated engine speed34.2 kWReference

Max power28.5 kWReference

Power at rated engine speed33.0 kWReference

Max power26.2 kWReference

Power at rated engine speed34.0 kWReference

Max power27.8 kWReference

Power at rated engine speed34.5 kWReference

Max power27.7 kWReference

Power at rated engine speed39.2 kWReference

Transmission

8-speed gearReference

8-speed synchronized shuttleReference

TypegearReference

Gears8 forward and 2 reverseReference

Clutchdry discReference

Typesynchronized shuttleReference

Gears8 forward and reverseReference

PTO & Hydraulics

PTO (claimed)33.6 kWReference

PTO (claimed)38.8 kWReference

PTO (tested)39.2 kWReference

Typeopen centerReference

Typeclosed centerReference

Pressure172.4 barReference

Valves0 to 2 (open center)Reference

Valves1 to 4 (closed center)Reference

Pump flow29.1 lpmReference

Pump flow48.4 lpmReference

Steering flow13.6 lpmReference

Rear TypeII/IReference

Controlposition control with top link draft sensingReference

Rear lift1397 kgReference

Rear PTOindependentReference

Rear PTO Type540Reference

Engine RPM540@1800Reference

Engine RPM540@1755 (shuttle)Reference

Power at rated PTO speed32.5 kWReference

Power at rated PTO speed31.2 kWReference

Power at rated PTO speed30.7 kWReference

Power at rated PTO speed31.2 kWReference

Dimensions

2WD Wheelbase214 cmReference

4WD Wheelbase213 cmReference

Weight5157 to 6025 poundsReference

Front tire6.00-16Reference

Rear tire13.6-28Reference

Ag front6.00-16Reference

Ag rear13.6-28Reference

Length347 cmReference

Width176 cmReference

Ground clearance34 cmReference

2WD ROPS Shipping2339 kgReference

4WD ROPS Shipping2732 kgReference

4WD ROPS Operating2470 kgReference

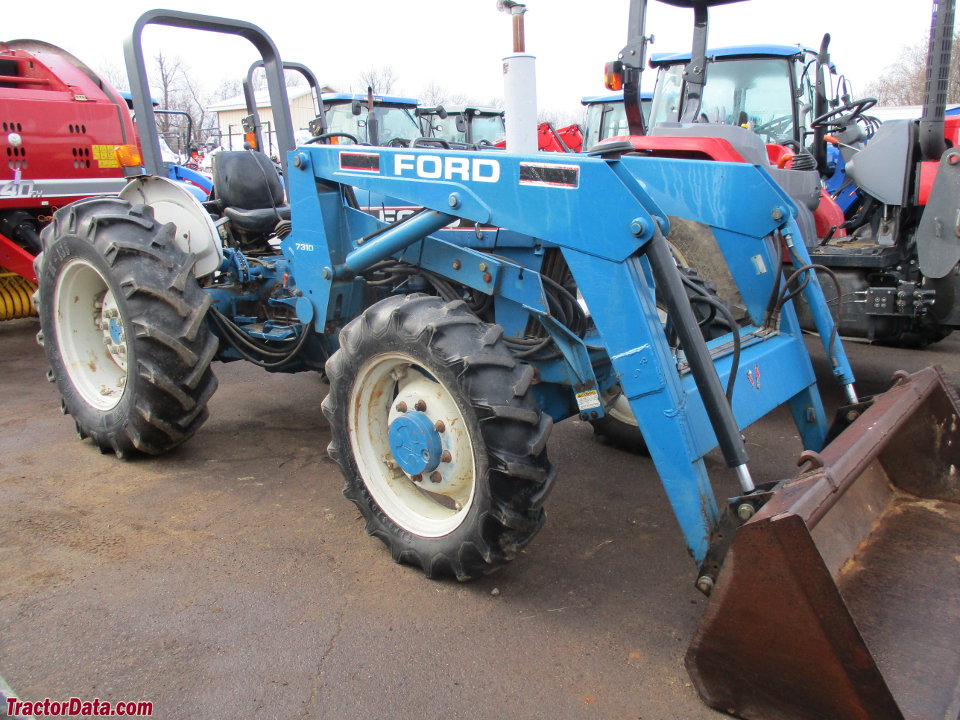

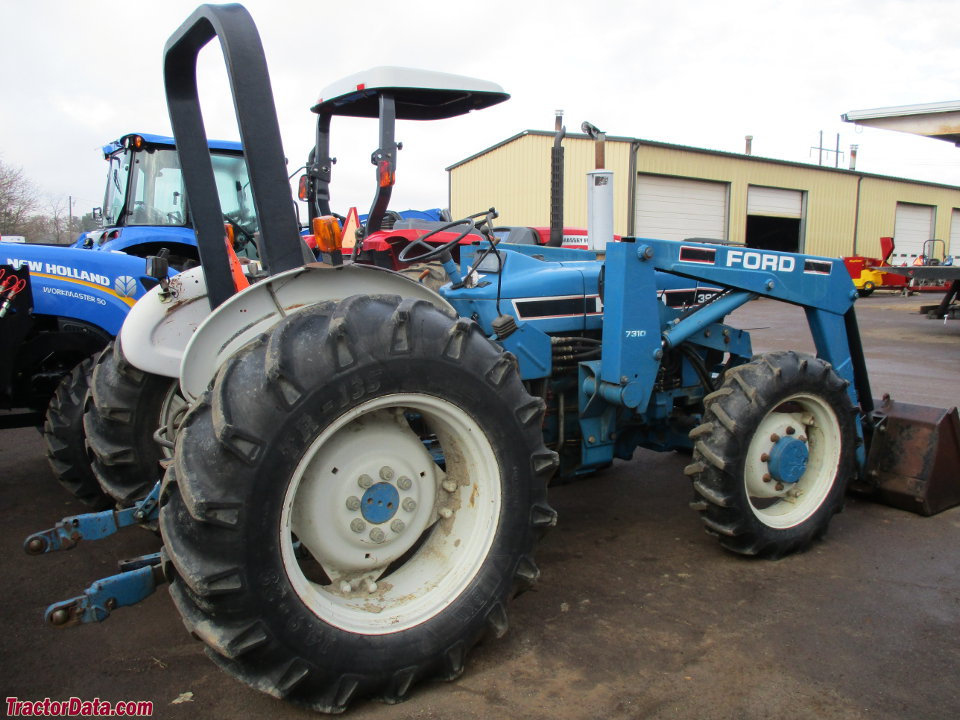

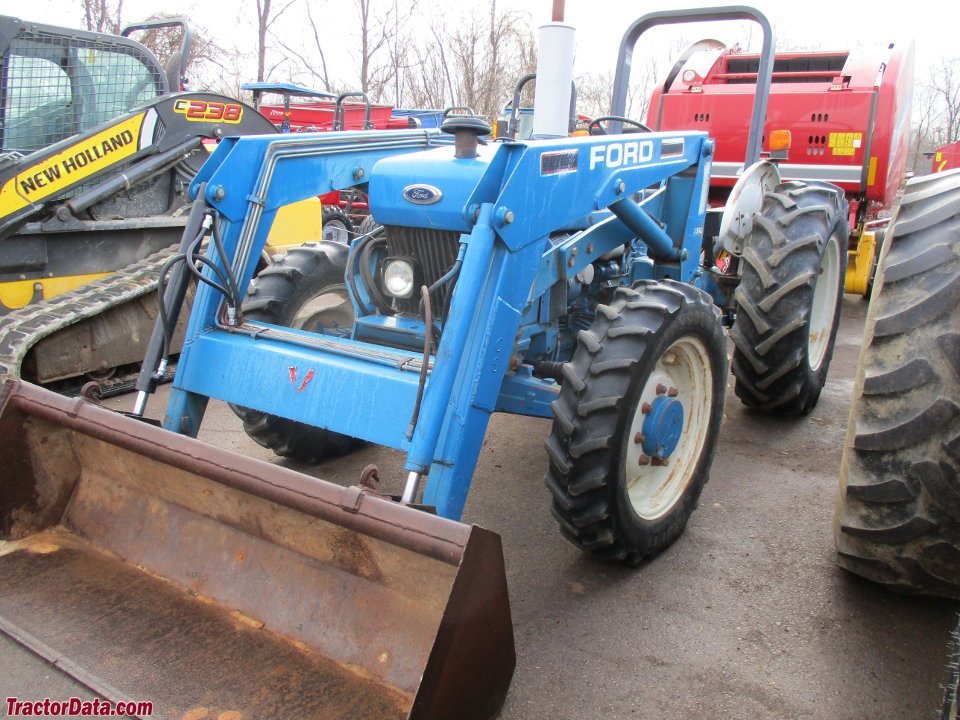

Ford 3930 attachments

front-end loaderReference

3930 Serial Numbers

Location:Upper right-hand side of transmissionReference

1990BC26239Reference

1991BC68791Reference

1992BD05932Reference

1993BD36207Reference

1994BD63909Reference

1995BD93327Reference

1996021649BReference

1997056056BReference

1998083357BReference

1999111612BReference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

ROPS Charging amps55 (early)Reference

ROPS Charging amps45 (late)Reference

Cab Charging amps70Reference

Battery CCA800Reference

Battery volts12Reference

Attachment overview

Ford 7209 loaderReference

Ford 7210 loaderReference

Ford 7310 loaderReference

Ford 7410 loaderReference

Ford 3930 Height

ROPS231 cmReference

Cab243 cmReference

Exhaust214 cmReference

Test results

OECD 1644: 3.3L diesel 8x2 speed 4WDReference

OECD 1341: diesel 8x8 speed 4WDReference

OECD 1701: 3.1L diesel 8x2 speed 4WDReference

OECD 1702: 3.1L diesel 8x8 speed 4WDReference

OECD 1702S: 3.1L turbo-diesel 8x8 speed 4WDReference

3.3L diesel 8x2 speed 4WDApril 8 - 25, 1991Link: OCED Tractor Test 1644 fileReference

PTO performanceReference

Fuel use10.6 l/hourReference

Fuel use9.8 l/hourReference

Drawbar performanceReference

Fuel use11.0 l/hourReference

Gear 1H used for power test.Reference

Max pull2180 kgReference

Gear 2L used for pull test.Reference

Diesel 8x8 speed 4WDMarch 1991 - May 1991, Link: OCED Tractor Test 1341 fileReference

Max pull2193 kgReference

3.1L diesel 8x2 speed 4WDOctober 17 - 27, 1995Link: OCED Tractor Test 1701 fileReference

Fuel use11.4 l/hourReference

Max pull2279 kgReference

3.1L diesel 8x8 speed 4WDOctober 2 - 27, 1995Link: OCED Tractor Test 1702 fileReference

Fuel use12.1 l/hourReference

Fuel use10.2 l/hourReference

Fuel use11.7 l/hourReference

Max pull2032 kgReference

Gear 3L used for pull test.Reference

3.1L turbo-diesel 8x8 speed 4WD1998Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
