Tractor · 1970Unverified

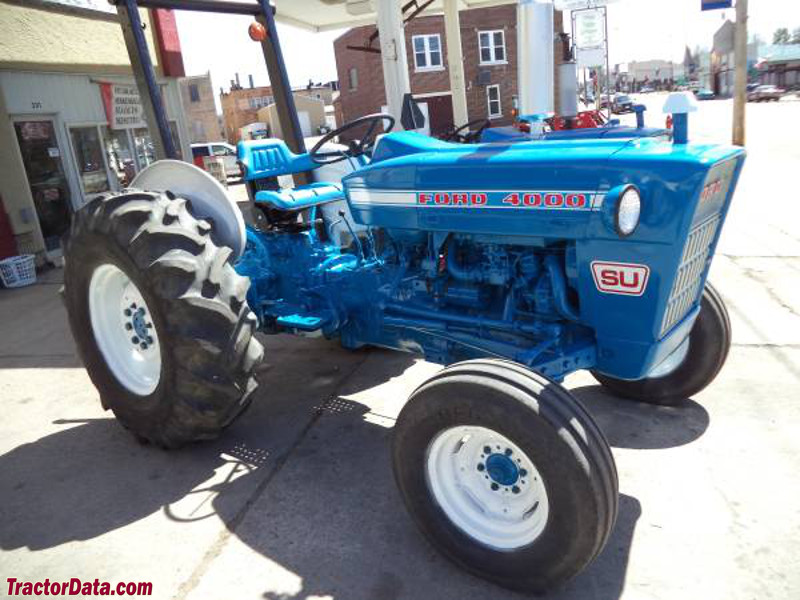

Ford 4000SU
Ford 4000SU — Utility tractor · 57 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
57 hp
Weight
4272 to 4387 pounds
Hover a source tag to verify
Overview
ManufacturerFordReference
Utility tractorReference
The Ford 4000SU - Special Utility - used the engine from a Ford 4000 fit into a smaller chassis using components from the Ford 3000.Reference
Two-wheel driveReference
Final drivesinboard planetaryReference
Differential lockmechanical rearReference
SteeringpowerReference
Wet disc brakesReference
Open operator station or two-post ROPS.Reference
Variants
4100general purposeReference
4200row-cropReference
4000SUspecial utilityReference
Engine
Ford 3.3L 3-cyl dieselReference
Ford 3.3L 3-cyl gasolineReference
Fuel tank49.2 LReference
Engine (net)42.5 kWReference
FordReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke112 x 112 mmReference
Power (net)42.5 kWReference
Compression16.5:1Reference
Rated RPM2200Reference
Torque207.5 NmReference
Torque RPM1300Reference
StarterelectricReference
Starter volts12Reference
Oil capacity6.6 LReference
Coolant capacity13.2 LReference
gasolineReference
Power (net)42.1 kWReference
Compression7.75:1Reference
Torque218.3 NmReference
Torque RPM1100Reference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)38.8 kWReference
Typeopen centerReference
Pressure172.4 barReference
Pump flow20.4 lpmReference
Rear TypeIReference
Rear TypeIIReference
Rear lift (at 24"/610mm)771 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Wheelbase196 cmReference
Weight4272 to 4387 poundsReference
Front tire7.50-16Reference
Rear tire14.9-28Reference
Ag front7.50-16Reference
Ag rear14.9-28Reference
Ag rear16.9-24Reference
Length335 cmReference
Width180 cmReference
Height (steering wheel)149 cmReference
Height (hood)133 cmReference
Gas Shipping weight1937 kgReference
Diesel Shipping weight1989 kgReference
Clearance (front axle)55 cmReference
Clearance (rear axle)43 cmReference
Front tread132 to 203 cmReference
Rear tread142 to 203 cmReference
Electrical
GroundnegativeReference
Charging systemgeneratorReference
Charging amps22Reference
Battery volts12Reference
Battery AH80 (gas)Reference
Battery AH128 (diesel)Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
