Tractor · 1975Unverified

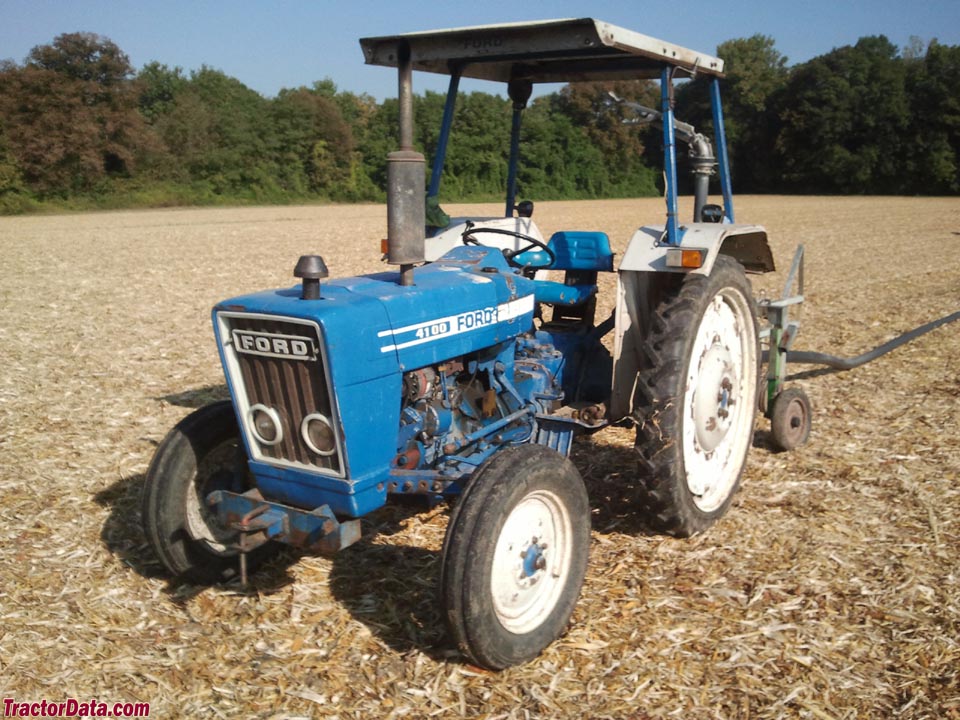

Ford 4100
Ford 4100 — Utility tractor · 52 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
52 hp
Max power
29.2 kW
Weight
2111 kg
Hover a source tag to verify
Overview
ManufacturerFordReference
Utility tractorReference
Original price was $9,000 in 1981Reference
Two-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Mechanical wet disc brakesReference

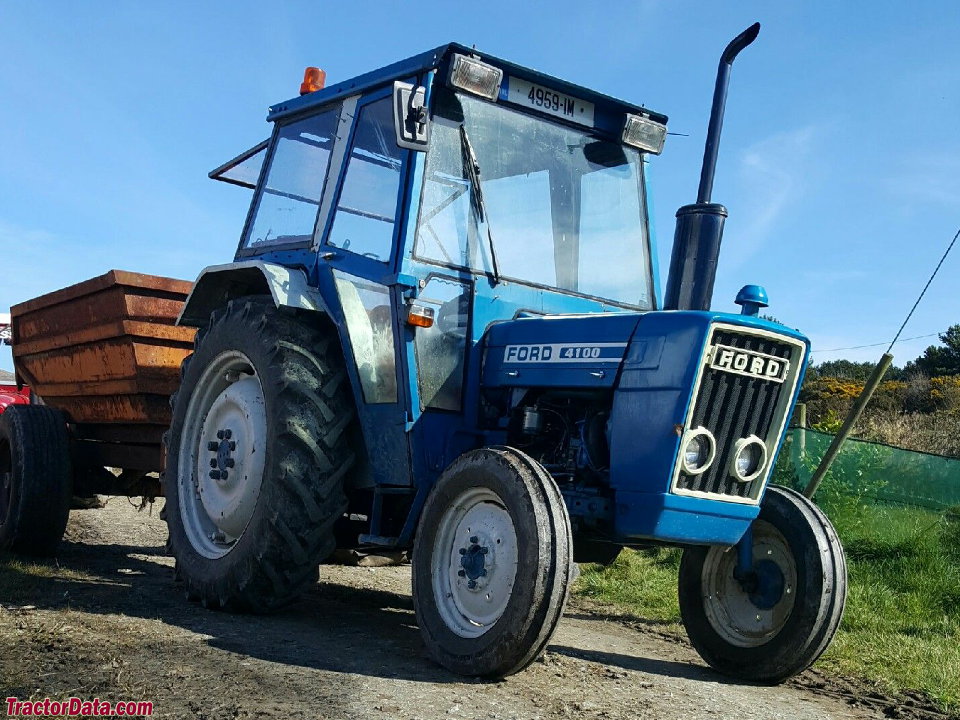

Open operator station. Cab optional.Reference
Engine
Ford 3.0L 3-cyl dieselReference
Fuel tank49.2 LReference
Engine (gross)38.8 kWReference
Engine (net)35.4 kWReference
Drawbar (claimed)29.1 kWReference
Drawbar (tested)29.2 kWReference
FordReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.0 LReference
Bore/Stroke107 x 112 mmReference
Power (net)35.4 kWReference
Power (gross)38.8 kWReference
Air cleaneroil bathReference
Compression16.3:1Reference
Rated RPM2200Reference
Torque187.1 NmReference
Torque RPM1600Reference
Firing order1-2-3Reference
Starter volts12Reference
Oil capacity6.6 LReference
Coolant capacity10.4 LReference
Power at rated engine speed33.9 kWReference
Max power29.2 kWReference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
Clutch279mm dry discReference
PTO & Hydraulics
PTO (claimed)33.6 kWReference
PTO (tested)33.9 kWReference
Rear TypeIReference
Rear lift1397 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Power at rated PTO speed30.7 kWReference
Dimensions
Wheelbase196 cmReference
Weight2111 kgReference
Front tire7.50-16Reference
Rear tire14.9-28Reference
Ag front7.50-16Reference
Ag rear14.9-28Reference
Length346 cmReference
Width179 cmReference
Ground clearance43 cmReference
Front tread132 to 203 cmReference
Rear tread142 to 203 cmReference
Rear tread142 to 228 cmReference
Ford 4100 attachments
front-end loaderReference
4100 Serial Numbers
Location:Front-right of transmissionReference
1975C450700Reference
1976C490300Reference
1977C527300Reference
1978C560500Reference
1979C595800Reference
1980C635700Reference
1981C660700Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
Ford 730 loaderReference
Ford 772A loaderReference
Test results
Diesel 8-speed 2WDMarch 16 - April 5, 1976Link: Nebraska Tractor Test 1202 fileReference
PTO performanceReference
Fuel use11.7 l/hourReference
Fuel use9.8 l/hourReference
Drawbar performanceReference
Gear 4 used for power test.Reference
Max pull2520 kgReference
Gear 2 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
