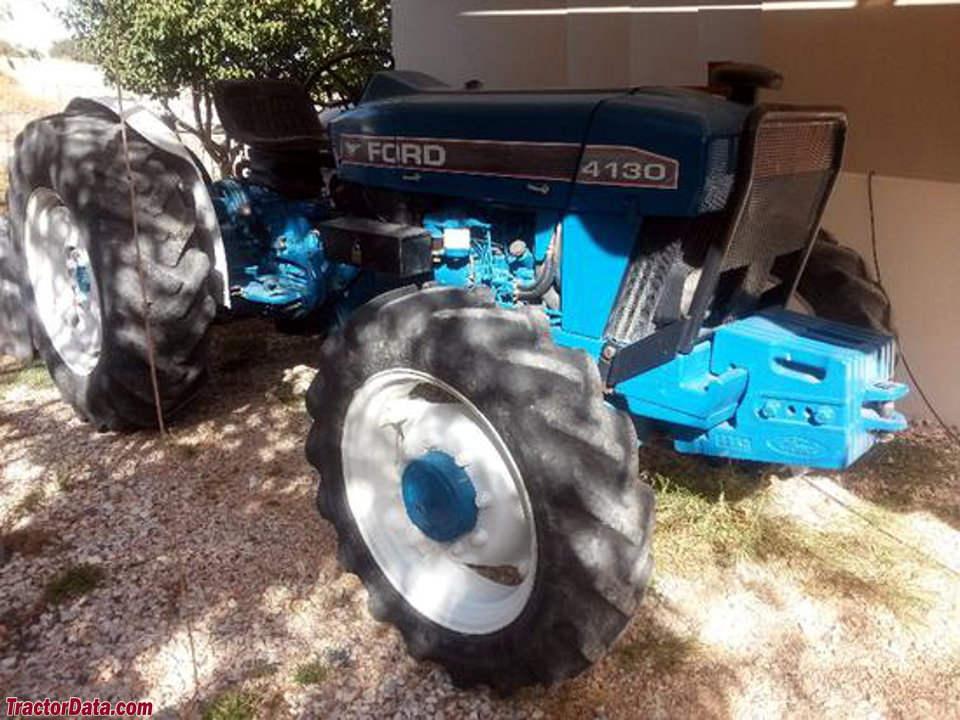

The Ford 4130 is a tractor with a power output of approximately 55 hp, categorising it within the lighter weight segment of its class. It was manufactured between 1990 and 1991. The tractor features a 3-cylinder diesel liquid-cooled engine paired with a four-wheel drive system and an 8-speed gearbox. Its listed operating weight is 2100 kg, and it is suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
55 hp
Weight
2100 kg
Catalogue coverage
Variants represented
2
Richest spec table
38 rows
Recorded power
55 hp
Recorded weight
2100 kg
Transmissions
8-speed
Production years
1990-1991
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerFordReference
Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Cab optionalReference
Engine
Ford 3.3L 3-cyl dieselReference
Fuel tank65.5 LReference
Engine47.0 kWReference
FordReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke112 x 112 mmReference
Power47.0 kWReference
Rated RPM2200Reference
Starter volts12Reference
Coolant capacity10.4 LReference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
Gears8 forward and reverseReference
PTO & Hydraulics
PTO (claimed)41.0 kWReference
Typeopen centerReference
Valves1Reference
Pump flow29.1 lpmReference
Rear TypeIIReference
Rear lift1397 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Engine RPM540@1450Reference
Dimensions
Wheelbase214 cmReference
Weight2100 kgReference
Front tire6.00-16Reference
Rear tire12.4-28Reference
Ag front6.00-16Reference
Ag rear12.4-28Reference
Length352 cmReference
Height234 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
