Tractor · 1992Unverified

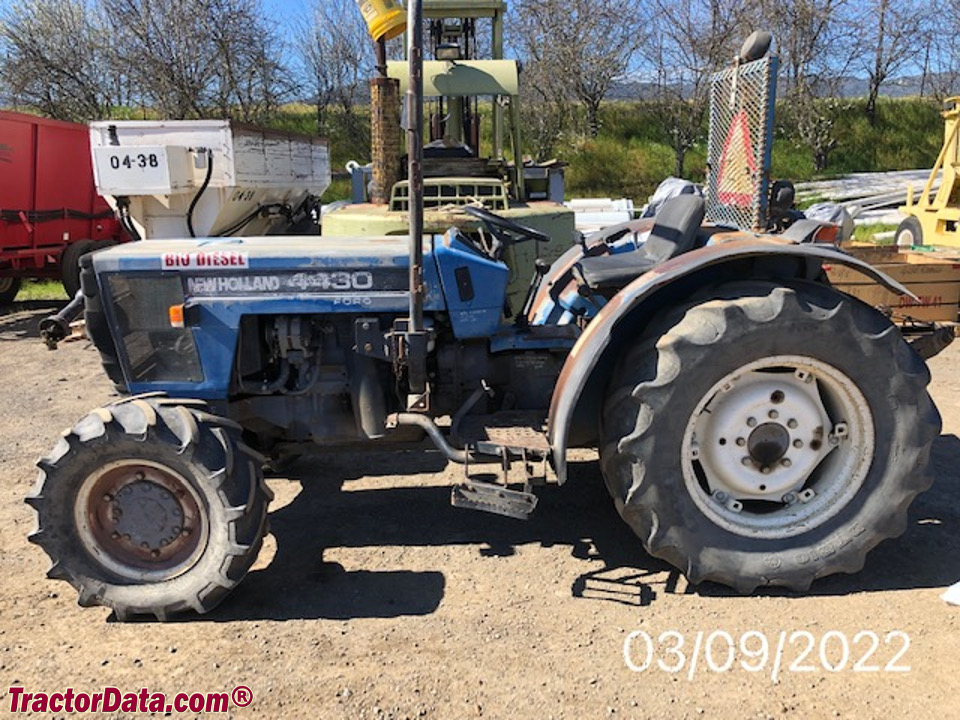

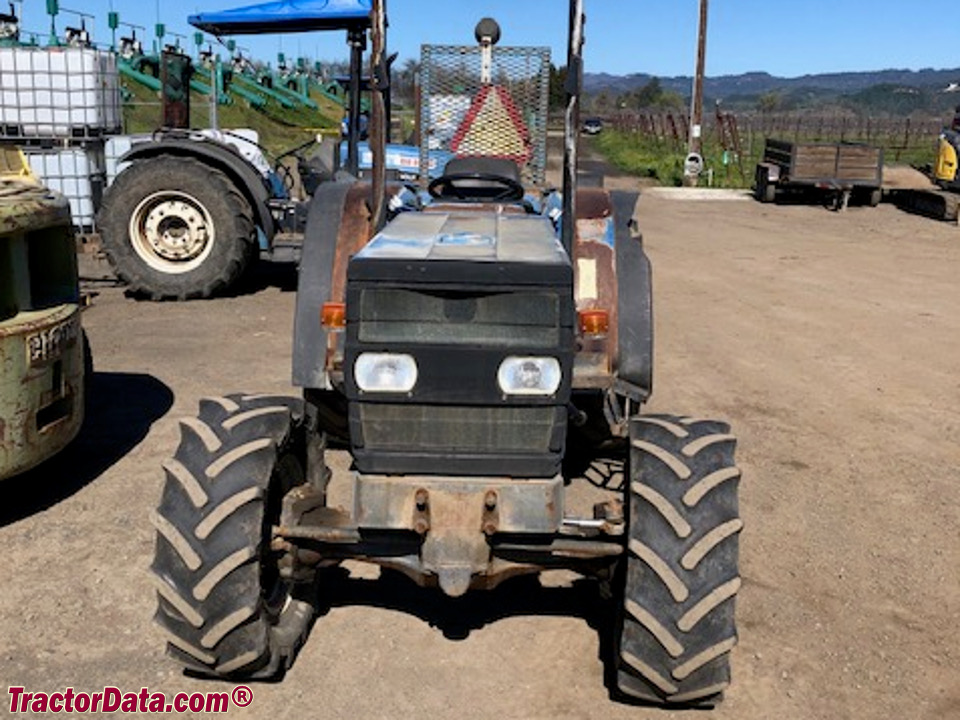

Ford 4430
Ford 4430 — Orchard/Vineyard tractor · 70 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
70 hp
Weight
2399 kg
Hover a source tag to verify
Overview
DistributorFordReference
ManufacturerFiatReference
Orchard/Vineyard tractorReference
Original price was $27,000 in 1998Reference
The Ford/New Holland 4430 is the same as the Fiat 82-86.Reference
Four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockmechanical rearReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post mid-mount ROPS. Cab optional with air-conditioning.Reference
Engine
Fiat 3.9L 4-cyl dieselReference
Fiat 8045.05Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke104 x 115 mmReference
Pre-heatingthermostartReference
Rated RPM2500Reference
Starter volts12Reference
Transmission
12-speed gearReference
12-speed shuttleReference
TypegearReference
Gears12 forward and 4 reverseReference
TypeshuttleReference
Gears12 forward and reverseReference
PTO & Hydraulics
PTO (claimed)52.2 kWReference
Hydraulic system42.8 LReference
Typeopen centerReference
Capacity42.8 LReference
Pressure188.9 barReference
Valves2 or 3Reference
Pump flow41.6 lpmReference
Steering flow30.7 lpmReference
Steering press.100.0 barReference
Rear TypeIIReference
Controlposition control and lower-link draft sensingReference
Rear lift2690 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Capacities
Fuel51.9 LReference
Dimensions
Wheelbase211 cmReference
Weight2399 kgReference
Front tire9.5x16Reference
Rear tire14.9x24Reference
Standard tires (ag)Front: 9.5x16. Rear: 14.9x24Reference
Length367 cmReference
Width148 cmReference
Clearance (front axle)39 cmReference
Front tread119 to 134 cmReference
Rear tread106 to 144 cmReference
Steering wheel138 cmReference
4430 Serial Numbers
1992F622950Reference
1993F659700Reference
1994F021000Reference
19951070257Reference
19961078242Reference
19971105905Reference
19981130047Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps33Reference
Cab Charging amps65Reference
Battery volts12Reference
Ford 4430 Height
Hood127 cmReference
ROPS215 cmReference
Speeds
With 14.9-24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
