Industrial Tractor · 1993Unverified

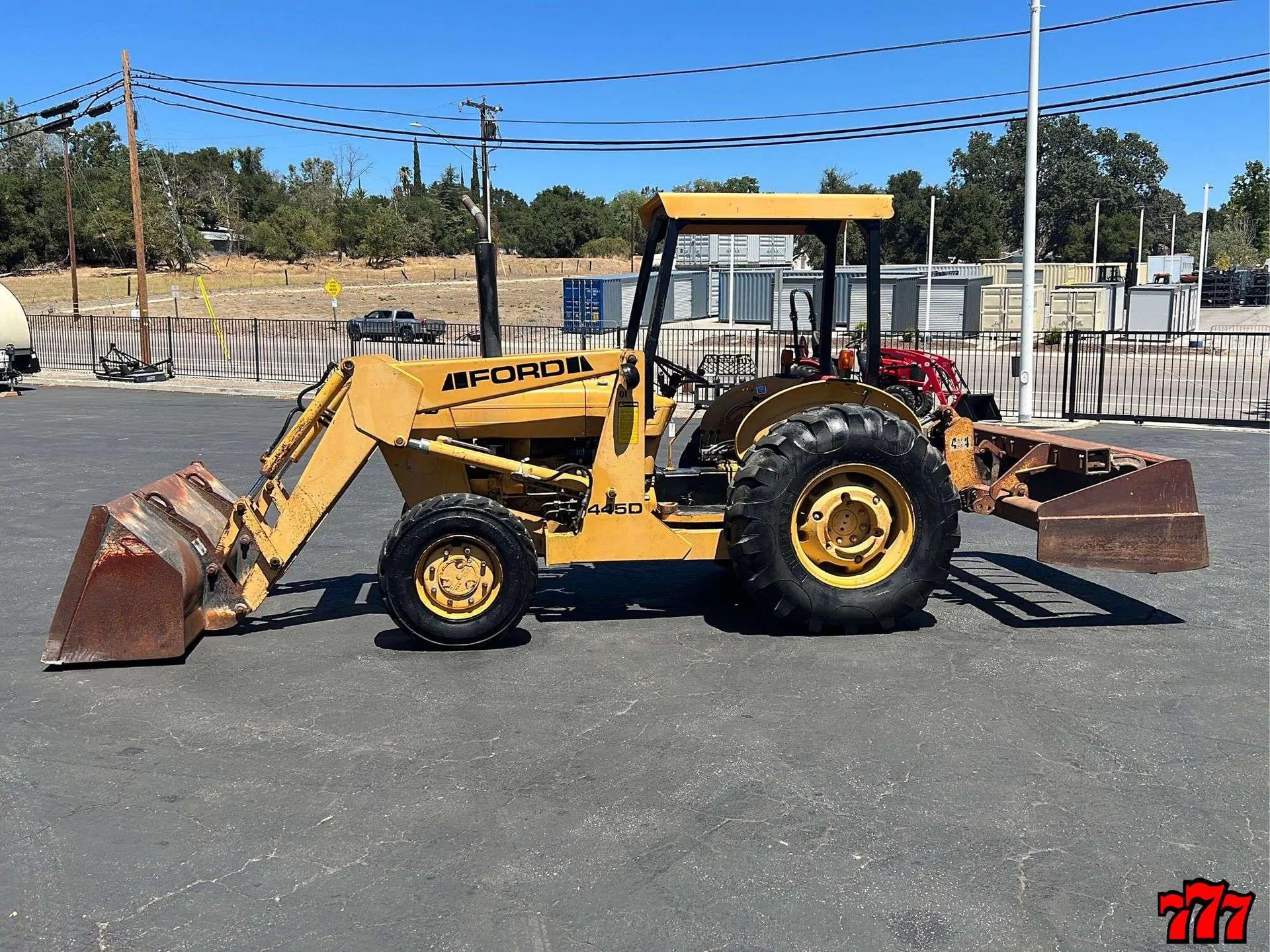

Ford 445D
Ford 445D — D Series · 62 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
62 hp
Weight
8610 to 9530 pounds
Hover a source tag to verify
Overview
ManufacturerFordReference
Industrial tractorReference
Built in Antwerp, BelgiumReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet multi-disc brakesReference
Two-post ROPS. Optional four-post ROPS. Optional two-door cab with heater.Reference
Engine
Ford 3.3L 3-cyl dieselReference
Fuel tank60.6 LReference
Engine (gross)46.2 kWReference
Engine (net)43.3 kWReference
FordReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke112 x 112 mmReference
Power (net)43.3 kWReference
Power (gross)46.2 kWReference
Compression16.3:1Reference
Rated RPM2200Reference
Oil capacity6.6 LReference
Coolant capacity10.4 LReference
Transmission
4-speed torque converterReference
8-speed torque converterReference
6-speed manual shuttleReference
Typetorque converterReference
Gears4 forward and reverseReference
Gears8 forward and reverseReference
Typemanual shuttleReference
Gears6 forward and 4 reverseReference
Clutch13-inch organicReference
PTO & Hydraulics
Shuttle PTO (claimed)34.3 kWReference
Gear PTO (claimed)38.0 kWReference
Typeopen centerReference
Pressure168.9 barReference
Pump flow98.4 lpmReference
Steering flow22.3 lpmReference
Rear TypeII/IReference
Controlposition control and top-link draft sensingReference
Rear lift1397 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1800Reference
Dimensions
Wheelbase205 cmReference
Weight8610 to 9530 poundsReference
Ag front7.50-16 (2WD)Reference
Ag front12.0-16.5 (4WD)Reference
Ag rear16.9-24Reference
Ag rear16.9-28Reference
Length490 cmReference
Width198 cmReference
Height (ROPS)238 cmReference
Height (cab)236 cmReference
2WD Clearance (front axle)35 cmReference
4WD Clearance (front axle)27 cmReference
2WD Front tread147 cmReference
4WD Front tread168 cmReference
Rear tread154 cmReference
3905 kgReference
4005 kgReference
4223 kgReference
4322 kgReference
2WD Max front axle4082 kgReference
4WD Max front axle6286 kgReference
Max rear axle5216 kgReference
Ford 445D attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Battery CCA675Reference
Battery volts12Reference
Battery AH128Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
