Backhoe Loader · 1989Unverified

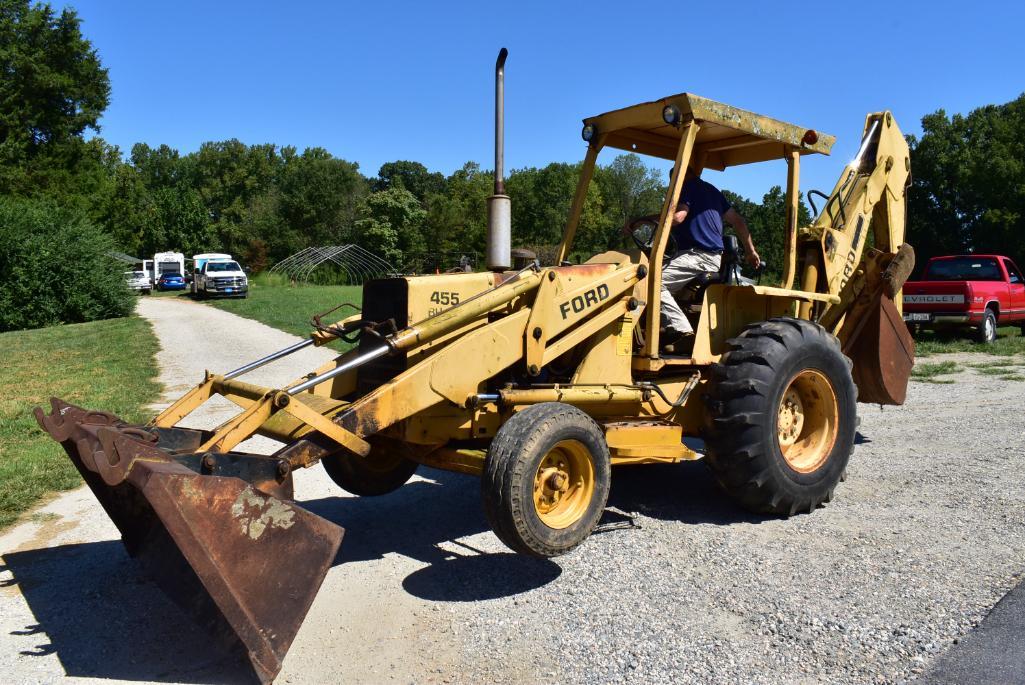

Ford 455C
Ford 455C — Backhoe loader tractor · 60 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
60 hp
Weight
12750 to 13800 pounds
Hover a source tag to verify
Overview
ManufacturerFordReference
Backhoe loader tractorReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Four-post ROPS/FOPS. Cab available with heater.Reference
Variants
455Cindustrial tractorReference
455C TLBbackhoe-loaderReference
Engine
Ford 3.3L 3-cyl dieselReference
Engine (gross)44.4 kWReference
Engine (net)41.0 kWReference
FordReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke112 x 112 mmReference
Power (net)41.0 kWReference
Power (gross)44.4 kWReference
Compression16.3:1Reference
Rated RPM2200Reference
Torque257.6 NmReference
Torque RPM1200Reference
StarterelectricReference
Starter volts12Reference
Oil capacity6.6 LReference
Coolant capacity10.4 LReference
Transmission
4-speed torque converterReference
8-speed torque converterReference
Typetorque converterReference
Gears4 forward and reverseReference
Gears8 forward and reverseReference
Capacities
Fuel90.8 LReference
PTO & Hydraulics
Hydraulic system79.5 LReference
Typeopen centerReference
Capacity79.5 LReference
Pressure168.9 barReference
Pump flow117.3 lpmReference
Steering flow22.3 lpmReference
Dimensions
Wheelbase208 cmReference
Weight12750 to 13800 poundsReference
Front tire11L-16Reference
Rear tire16.9-24Reference
2WD Industrial front11L-16Reference
4WD Industrial front12.0-16.5Reference
2WD Industrial rear16.9-24Reference
4WD Industrial rear18.4-24Reference
Length685 cmReference
Width217 cmReference
Height (ROPS)269 cmReference
Height (backhoe)355 cmReference
2WD Clearance (front axle)29 cmReference
4WD Clearance (front axle)27 cmReference
2WD Front tread157 cmReference
4WD Front tread173 cmReference
Rear tread172 cmReference
5783 kgReference
6259 kgReference
2WD Max front axle5443 kgReference
4WD Max front axle6286 kgReference
Max rear axle5216 kgReference
Backhoe & Loader
Dig depth436 cmReference
Dump angle127 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Battery CCA750Reference
Battery AH128Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Ford Backhoe
Backhoe typeFord BackhoeReference
Transport height355 cmReference
Digging depth436 cmReference
2-Foot flat digging depth431 cmReference
8-Foot flat digging depth396 cmReference
Reach from pivot538 cmReference
Loading height312 cmReference
Bucket Rotation205°Reference
Swing Arc180°Reference
Bucket force4681 kgReference
Dipperstick force3501 kgReference
Ford Xtra-Vator Backhoe
Backhoe typeFord Xtra-Vator BackhoeReference
Transport height355 cmReference
Digging depth (retracted stick)457 cmReference
Digging depth (extended stick)556 cmReference
2-Foot flat digging depth (retracted stick)452 cmReference
2-Foot flat digging depth (extended stick)553 cmReference
8-Foot flat digging depth (retracted stick)408 cmReference
8-Foot flat digging depth (extended stick)518 cmReference
Reach from pivot (retracted stick)553 cmReference
Reach from pivot (extended stick)647 cmReference
Loading height (retracted stick)320 cmReference
Loading height (extended stick)335 cmReference
Bucket Rotation199°Reference
Swing Arc180°Reference
Bucket force5248 kgReference
Dipperstick force (retracted stick)3456 kgReference
Dipperstick force (extended stick)2476 kgReference
Speeds
With 16.9-24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
