Tractor · 1975Unverified

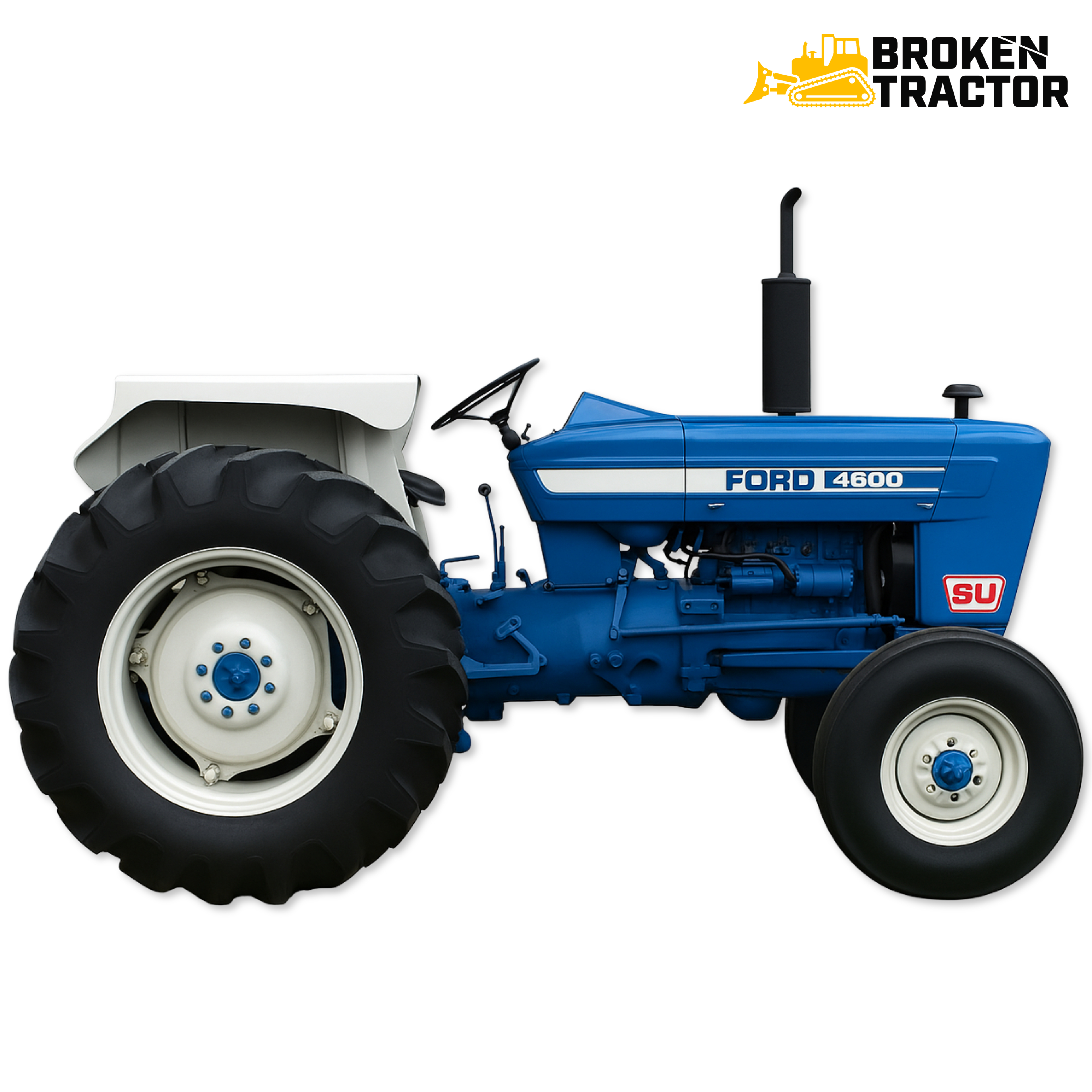

Ford 4600SU
Ford 4600SU — Utility tractor · 60 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
60 hp
Max power
33.4 kW
Weight
2667 kg
Hover a source tag to verify
Overview
ManufacturerFordReference
Utility tractorReference
Two-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Differential mechanical wet disc brakesReference
Open operator station. Cab optional.Reference
Variants
4600utility frameReference
4600SUsmall frameReference
Engine
Ford 3.3L 3-cyl dieselReference
Ford 3.3L 3-cyl gasolineReference
Engine (gross)44.7 kWReference
Engine (net)42.1 kWReference
Drawbar (tested)33.4 kWReference
FordReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke112 x 112 mmReference
Power (net)42.1 kWReference
Power (gross)44.4 kWReference
Air cleanerdryReference
Compression16.3:1Reference
Rated RPM2200Reference
Torque212.9 NmReference
Torque RPM1200Reference
Starter volts12Reference
Oil capacity6.6 LReference
Coolant capacity10.4 LReference
gasolineReference
Bore/Stroke112 x 112 mmReference
Power (net)41.8 kWReference
Power (gross)44.7 kWReference
Compression7.75:1Reference
Torque234.6 NmReference
Torque RPM1100Reference
Power at rated engine speed38.9 kWReference
Max power33.4 kWReference
Power at rated engine speed39.1 kWReference
Max power32.1 kWReference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
Clutch279mm dry discReference
Oil capacity12.0 LReference
PTO & Hydraulics
PTO (claimed)38.8 kWReference
PTO (tested)39.1 kWReference
Hydraulic system32.2 LReference
Capacity32.2 LReference
Rear TypeII/IReference
Rear lift1397 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Engine RPM540@1800Reference
Power at rated PTO speed35.2 kWReference
Power at rated PTO speed34.5 kWReference
Capacities
Fuel49.2 LReference
Dimensions
Wheelbase196 cmReference
Weight2667 kgReference
Front tire7.50-16Reference
Rear tire16.9-24Reference
Ag front7.50-16Reference
Ag rear16.9-24Reference
Length346 cmReference
Width179 cmReference
Operating weight2667 kgReference
Ballasted weight3728 kgReference
Ground clearance43 cmReference
Front tread132 to 203 cmReference
Rear tread142 to 203 cmReference
Rear tread142 to 228 cmReference
Ford 4600SU attachments
front-end loaderReference
4600SU Serial Numbers
Location:On top-right section of transmissionReference
1975C450700Reference
1976C490300Reference
1977C527300Reference
1978C560500Reference
1979C595800Reference
1980C635700Reference
1981C660700Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
Ford 730 loaderReference
Ford 772A loaderReference
Test results
NTTL 1001: gasoline 8-speed 2WDReference
NTTL 1223: diesel 8-speed 2WDReference
Gasoline 8-speed 2WDNovember 13 - 25, 1968Link: Nebraska Tractor Test 1001 fileReference
PTO performanceReference
Fuel use17.0 l/hourReference
Fuel use14.8 l/hourReference
Drawbar performanceReference
Fuel use17.4 l/hourReference
Gear 4 used for power test.Reference
Max pull2765 kgReference
Gear 2 used for pull test.Reference
Diesel 8-speed 2WDSeptember 20 - October 4, 1976Link: Nebraska Tractor Test 1223 fileReference
Fuel use14.0 l/hourReference
Fuel use12.1 l/hourReference
Fuel use13.6 l/hourReference
Max pull2876 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
