Tractor · 1981Unverified

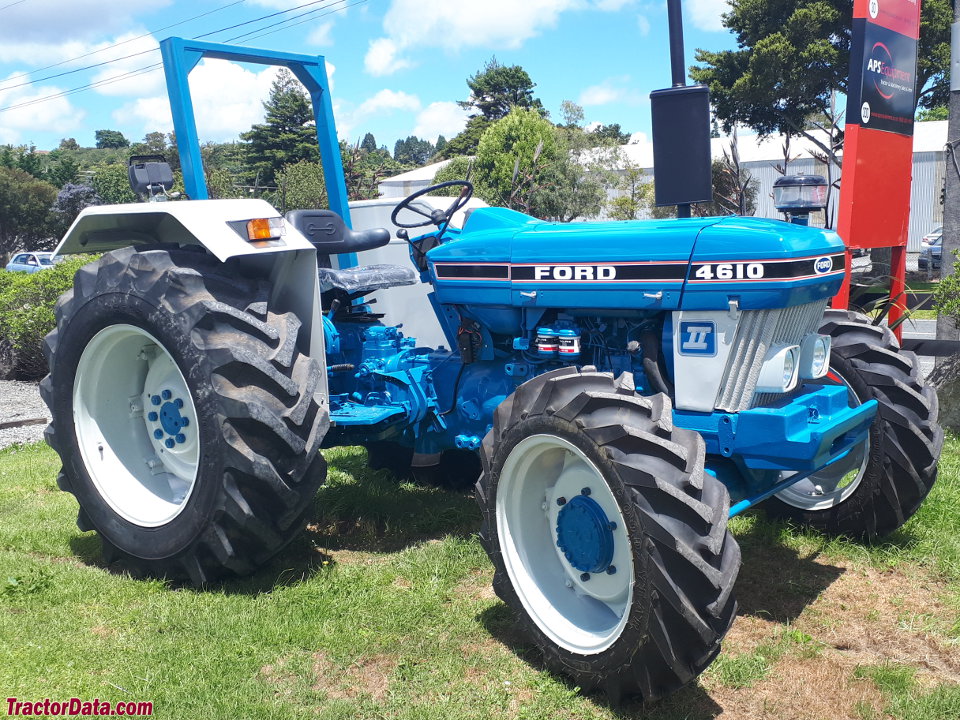

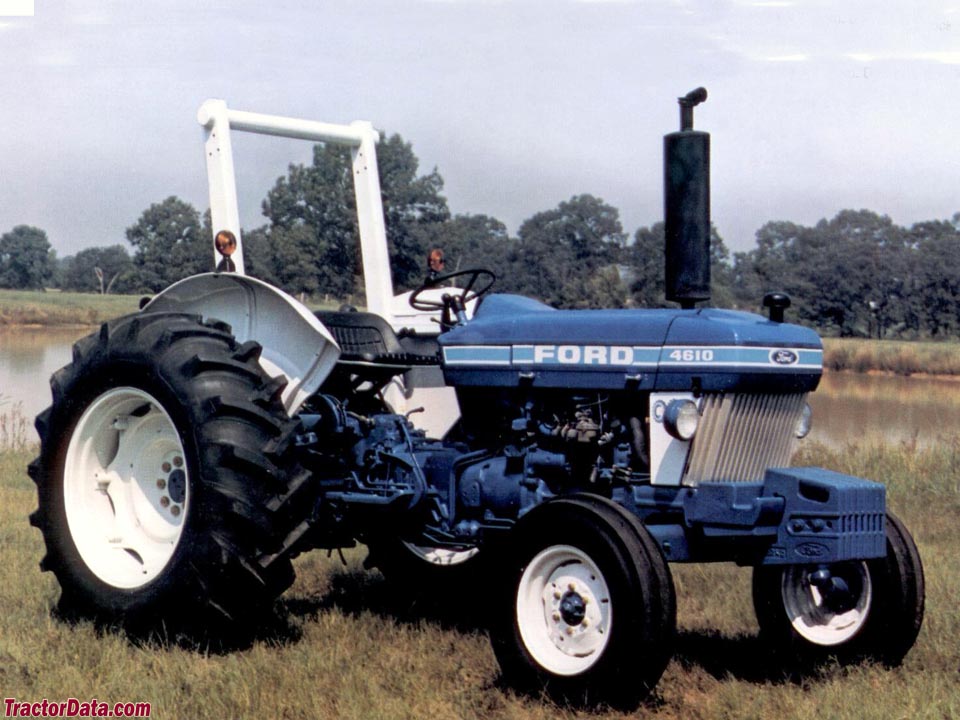

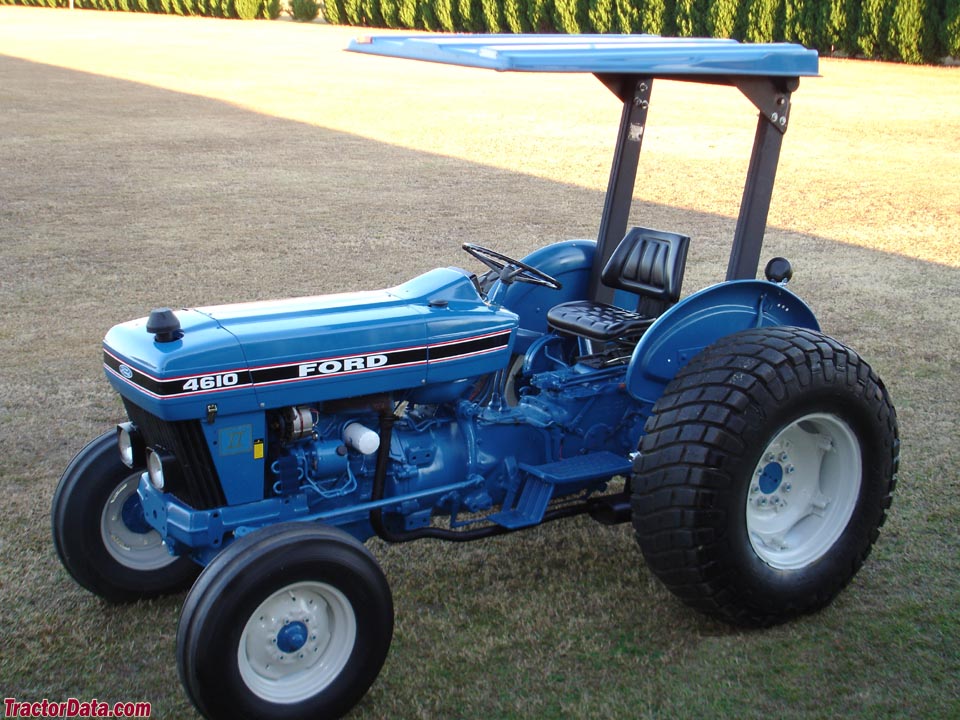

Ford 4610
Ford 4610 — 10 Utility Series · 63 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
63 hp
Max power
33.0 kW
Weight
2180 kg
Hover a source tag to verify
Overview
ManufacturerFordReference
Utility tractorReference
Original price was $18,200 in 1989Reference

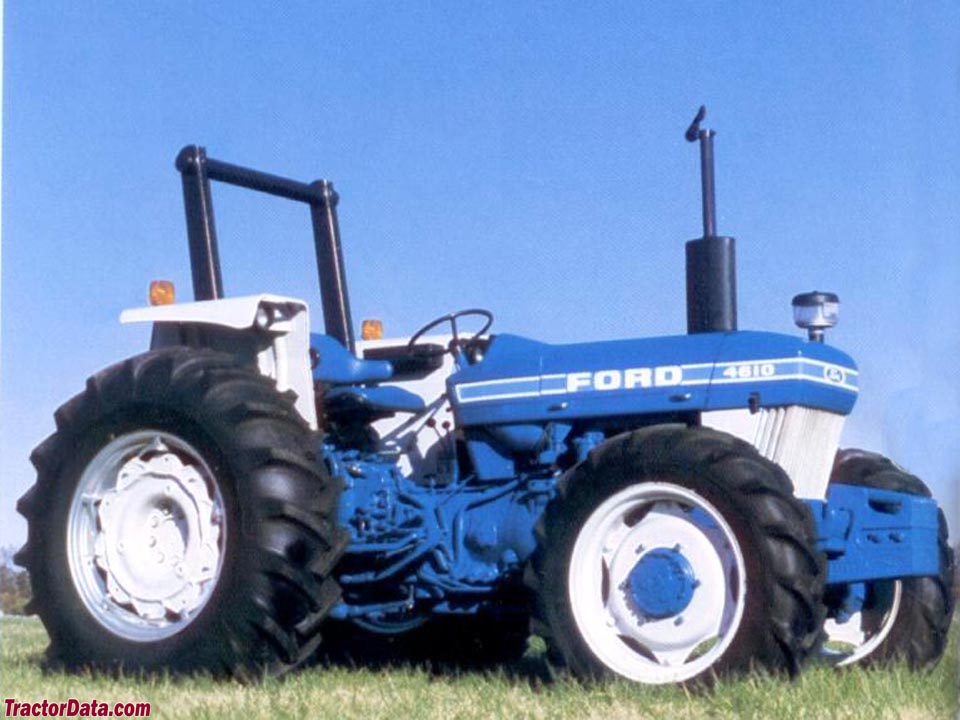

Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockmechanical rearReference
Power steeringReference
Differential wet disc brakesReference

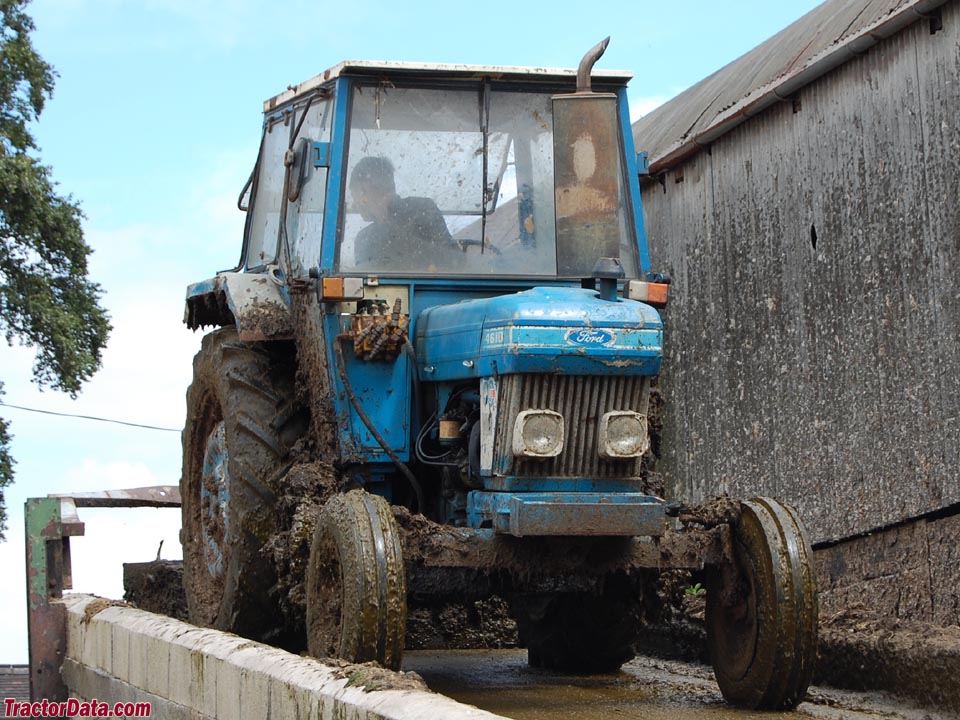

Two-post fixed ROPS. Cab optional.Reference
Variants
4610utility frameReference
4610SUsmall frameReference
4610HhighwayReference
4910 LCGmowing tractorReference
4610NnarrowReference
4610NOnarrow lowReference
4610Olow-profileReference
Engine
Ford 3.3L 3-cyl dieselReference
Ford 3.3L 3-cyl gasolineReference
Engine (gross)47.0 kWReference
Engine44.7 kWReference
Plows4Reference
Drawbar (tested)33.0 kWReference
FordReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke112 x 112 mmReference
Power44.7 kWReference
Power (gross)47.0 kWReference
Air cleanerdryReference
Pre-heatingthermostartReference
Compression15.3:1Reference
Rated RPM2200Reference
Torque228.5 NmReference
Torque RPM1400Reference
Starter volts12Reference
Oil capacity6.6 LReference
Coolant capacity10.4 LReference
gasolineReference
Power41.8 kWReference
Power (gross)44.7 kWReference
Compression7.75:1Reference
Torque234.6 NmReference
Torque RPM1100Reference
Power at rated engine speed39.2 kWReference
Max power33.0 kWReference
Power at rated engine speed39.0 kWReference
Max power32.2 kWReference
Transmission
8-speedReference
8-speed synchromeshReference
TransmissionDual RangeReference
Gears8 forward and 2 reverseReference
Oil capacity12.0 LReference
TypesynchromeshReference
Gears8 forward and 4 reverseReference
Oil capacity9.4 LReference
PTO & Hydraulics
PTO (claimed)38.8 kWReference
PTO (tested)39.2 kWReference
Hydraulic system45.8 LReference
Typeopen centerReference
Capacity45.8 LReference
Valves1Reference
Pump flow32.2 lpmReference
Pump flow53.4 lpmReference
Steering cap.3.4 LReference
Rear TypeII/IReference
Controlposition and top-link draft controlReference
Rear lift (at 24"/610mm)1397 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Engine RPM540@1800Reference
Power at rated PTO speed34.8 kWReference
Power at rated PTO speed35.3 kWReference
Capacities
Fuel60.6 LReference
Steering3.4 LReference
Dimensions
2WD Wheelbase214 cmReference
4WD Wheelbase213 cmReference
Weight2180 kgReference
Front tire7.50-16Reference
Rear tire14.9-28Reference
Ag front7.50-16 (2WD)Reference
Ag front8.3-24 (4WD)Reference
Ag rear14.9-28Reference
Ag front7.50-18 (2WD)Reference
Ag front9.5-24 (4WD)Reference
Ag front11.2-24 (4WD)Reference
Ag rear14.9-30Reference
Ag rear16.9-30Reference
Ag rear13.6-38Reference
Ag rear15.5-38Reference
Length352 cmReference
Width171 cmReference
2WD Shipping weight2180 kgReference
Ballasted weight3742 kgReference
2WD Clearance (front axle)49 cmReference
4WD Clearance (front axle)37 cmReference
Clearance (rear axle)43 cmReference
2WD Front tread132 to 203 cmReference
4WD Front tread142 to 182 cmReference
Rear tread142 to 203 cmReference
Steering wheel160 cmReference
Ford 4610 attachments
front-end loaderReference
4610 Serial Numbers
Location:Plate inside engine compartment and front-right transmission coverReference
1982C681910Reference
1983C695880Reference
1984C713459Reference
1985C737800Reference
1986C754100Reference
1987C768000Reference
1987BA80100Reference
1988BB06622Reference
1988BB31777Reference
1989BB80620Reference
1990BC26239Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Mk I Charging amps32Reference
Mk II Charging amps51Reference
Battery volts12Reference
Diesel Battery AH128Reference
Gas Battery AH77Reference
Attachment overview
Ford 776A loaderReference
Ford 776B loaderReference
Ford 7209 loaderReference
Ford 7210 loaderReference
Ford 4610 Height
Hood146 cmReference
ROPS240 cmReference
Exhaust215 cmReference
Test results
NTTL 1426: diesel 8x2 2WDReference
NTTL 1427: diesel 8x4 2WDReference
Diesel 8x2 2WDMarch 16 - April 1, 1982Link: Nebraska Tractor Test 1426 fileReference
PTO performanceReference
Fuel use12.5 l/hourReference
Fuel use3.8 l/hourReference
Drawbar performanceReference
Fuel use12.1 l/hourReference
Gear 5 used for power test.Reference
Max pull2903 kgReference
Gear 2 used for pull test.Reference
Diesel 8x4 2WDApril 24 - May 15, 1982Link: Nebraska Tractor Test 1427 fileReference
Fuel use10.6 l/hourReference
Max pull2963 kgReference
Speeds
With 16.9x30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
