Tractor · 1981Unverified

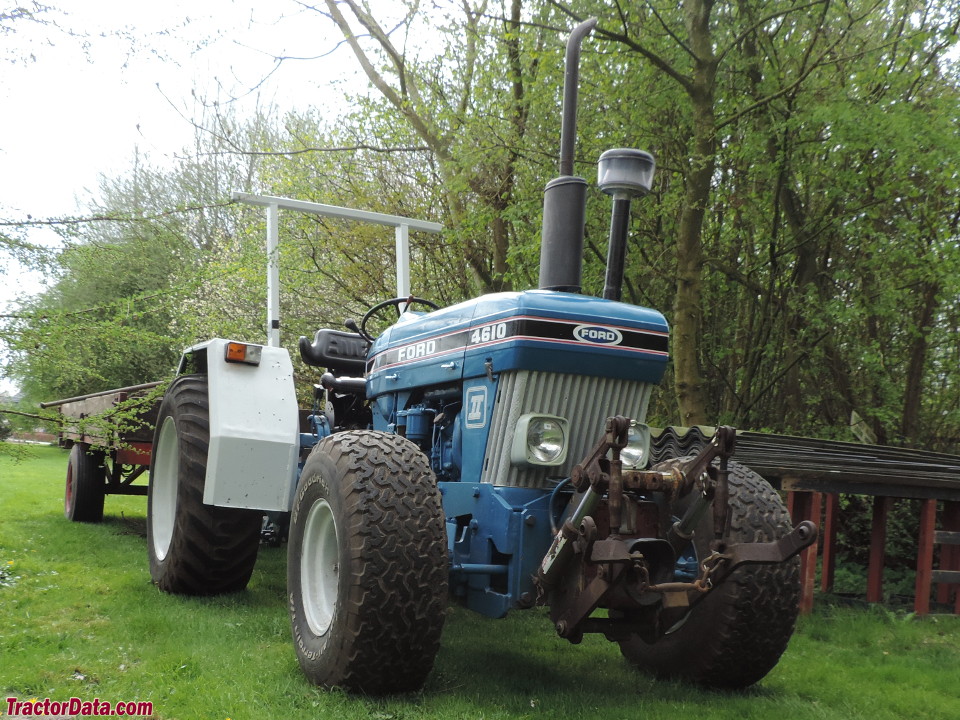

Ford 4610 Narrow

Name: Ford 4610 Narrow
Brand: Ford

Ford 4610 Narrow — 10 Series · 65 hp. Reference specifications; pending source verification.

The Ford 4610 Narrow is a tractor with a rated power output of 65 hp, placing it in the middle of its class in terms of power. Manufactured from 1981 to 1989, it features a 3-cylinder diesel liquid-cooled engine, coupled with a four-wheel drive system and an 8-speed gearbox. The listed weight of the tractor is 2180 kg, suitable for jobs requiring around 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

65 hp

Weight

2180 kg

Catalogue coverage

Variants represented

Richest spec table

75 rows

Recorded power

65 hp

Recorded weight

2180 kg

Transmissions

8-speed gear

Production years

1981-1989

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFordReference

Orchard/Vineyard tractorReference

Two- or four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Open operator station.Reference

Variants

4610utility frameReference

4610SUsmall frameReference

4610HhighwayReference

4910 LCGmowing tractorReference

4610NnarrowReference

4610NOnarrow lowReference

4610Olow-profileReference

Engine

Ford 3.3L 3-cyl dieselReference

Engine (gross)48.1 kWReference

FordReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement3.3 LReference

Bore/Stroke112 x 112 mmReference

Power (gross)48.1 kWReference

Fuel systemdirect injectionReference

Pre-heatingthermostartReference

Compression15.3:1Reference

Rated RPM2200Reference

StarterelectricReference

Starter volts12Reference

Oil capacity6.6 LReference

Coolant capacity10.4 LReference

Transmission

8-speed gearReference

TypegearReference

Gears8 forward and 2 reverseReference

Clutch330mm dry discReference

Oil capacity12.0 LReference

PTO & Hydraulics

PTO (claimed)38.8 kWReference

Hydraulic system45.8 LReference

Typeopen centerReference

Capacity45.8 LReference

Pressure144.8 barReference

Pump flow32.2 lpmReference

Steering flow13.6 lpmReference

Rear TypeIReference

Controlposition and draft controlReference

Rear lift (at 24"/610mm)1397 kgReference

Rear PTOindependentReference

Rear PTO Type540Reference

Engine RPM540@1800Reference

Capacities

Fuel60.6 LReference

Dimensions

2WD Wheelbase214 cmReference

4WD Wheelbase213 cmReference

Weight2180 kgReference

Front tire5.50x16Reference

2WD Rear tire13.6x28Reference

2WD Standard tires (ag)Front: 5.50x16. Rear: 13.6x28Reference

4WD Standard tires (ag)Front: 7.50x18. Rear: 13.6x28Reference

Length320 cmReference

Width134 cmReference

2WD Shipping weight2180 kgReference

2WD Clearance (front axle)49 cmReference

4WD Clearance (front axle)25 cmReference

Clearance (rear axle)32 cmReference

2WD Front tread117 to 158 cmReference

4WD Front tread113 to 154 cmReference

Rear tread99 to 161 cmReference

2WD Steering wheel155 cmReference

4WD Steering wheel77 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps46Reference

Battery volts12Reference

Battery AH128Reference

Ford 4610 Narrow Height

2WD ROPS225 cmReference

4WD ROPS237 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
