Tractor · 1981Unverified

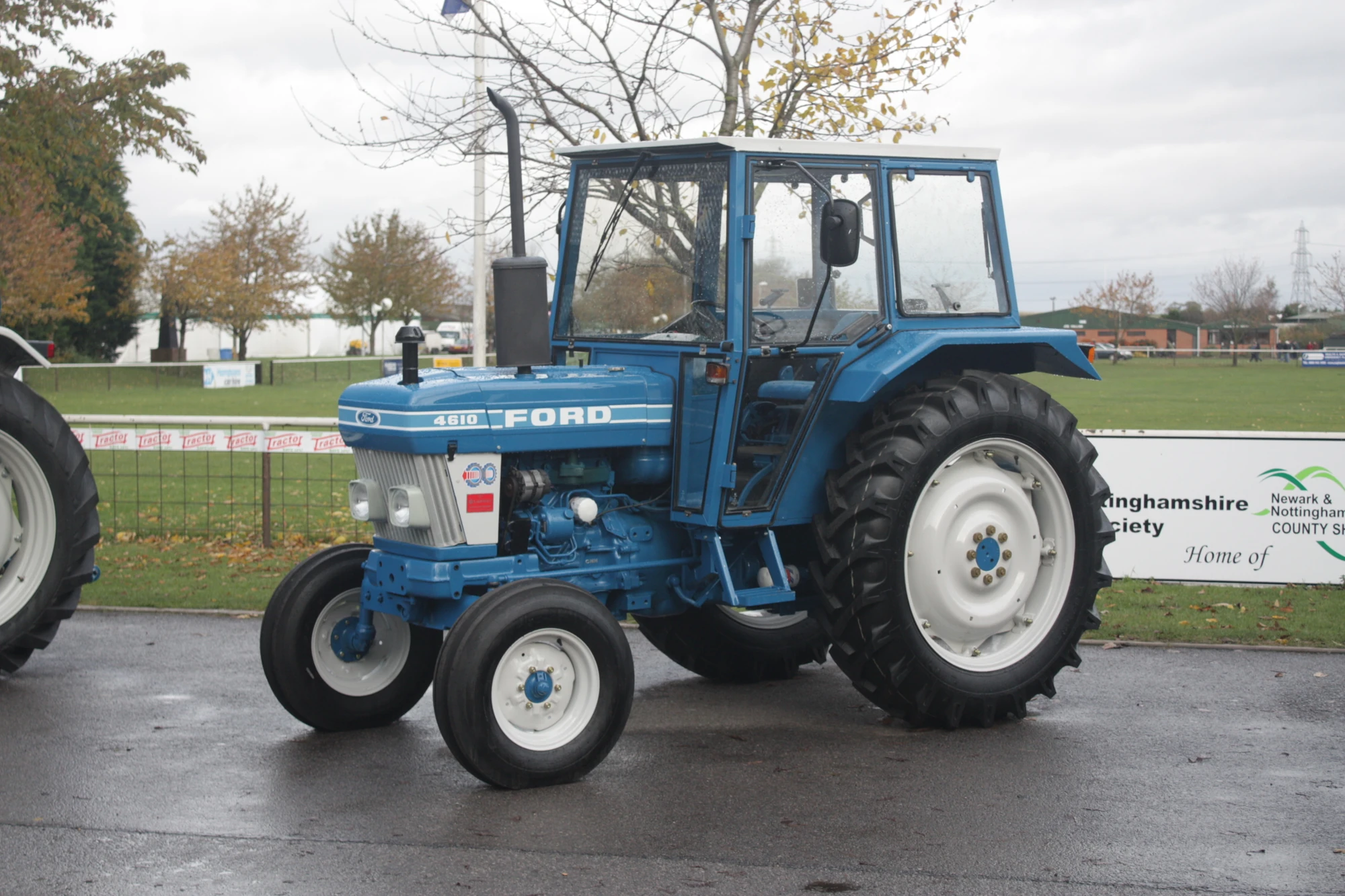

Ford 4610 Narrow Orchard
Ford 4610 Narrow Orchard — 10 Series · 65 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
65 hp
Weight
2189 kg
Hover a source tag to verify
Overview
ManufacturerFordReference
Orchard/Vineyard tractorReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Open operator station.Reference
Variants
4610utility frameReference
4610SUsmall frameReference
4610HhighwayReference
4910 LCGmowing tractorReference
4610NnarrowReference
4610NOnarrow lowReference
4610Olow-profileReference
Engine
Ford 3.3L 3-cyl dieselReference
Engine (gross)48.1 kWReference
FordReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke112 x 112 mmReference
Power (gross)48.1 kWReference
Fuel systemdirect injectionReference
Compression15.3:1Reference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Oil capacity6.6 LReference
Coolant capacity10.4 LReference
Transmission
8-speed gearReference
8-speed synchromeshReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutch330mm dry discReference
Oil capacity12.0 LReference
TypesynchromeshReference
Gears8 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)38.8 kWReference
Hydraulic system45.8 LReference
Typeopen centerReference
Capacity45.8 LReference
Pressure144.8 barReference
Pump flow32.2 lpmReference
Steering flow13.6 lpmReference
Rear TypeIReference
Controlposition and top-link draft controlReference
Rear lift (at 24"/610mm)1397 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Engine RPM540@1800Reference
Capacities
Fuel60.6 LReference
Dimensions
2WD Wheelbase214 cmReference
4WD Wheelbase213 cmReference
Weight2189 kgReference
Front tire9.00x10Reference
2WD Rear tire18.4x16Reference
2WD Standard tires (ag)Front: 9.00x10. Rear: 18.4x16Reference
4WD Standard tires (ag)Front: 7.50x16. Rear: 18.4x16Reference
Length307 cmReference
2WD Width168 cmReference
4WD Width168 cmReference
2WD Shipping weight2189 kgReference
2WD Clearance (front axle)33 cmReference
4WD Clearance (front axle)22 cmReference
Clearance (rear axle)20 cmReference
2WD Front tread132 to 203 cmReference
Rear tread121 to 129 cmReference
2WD Steering wheel143 cmReference
4WD Steering wheel144 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps46Reference
Battery volts12Reference
Battery AH128Reference
Ford 4610 Narrow Orchard Height
2WD ROPS212 cmReference
4WD ROPS226 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
