Tractor · 1981Unverified

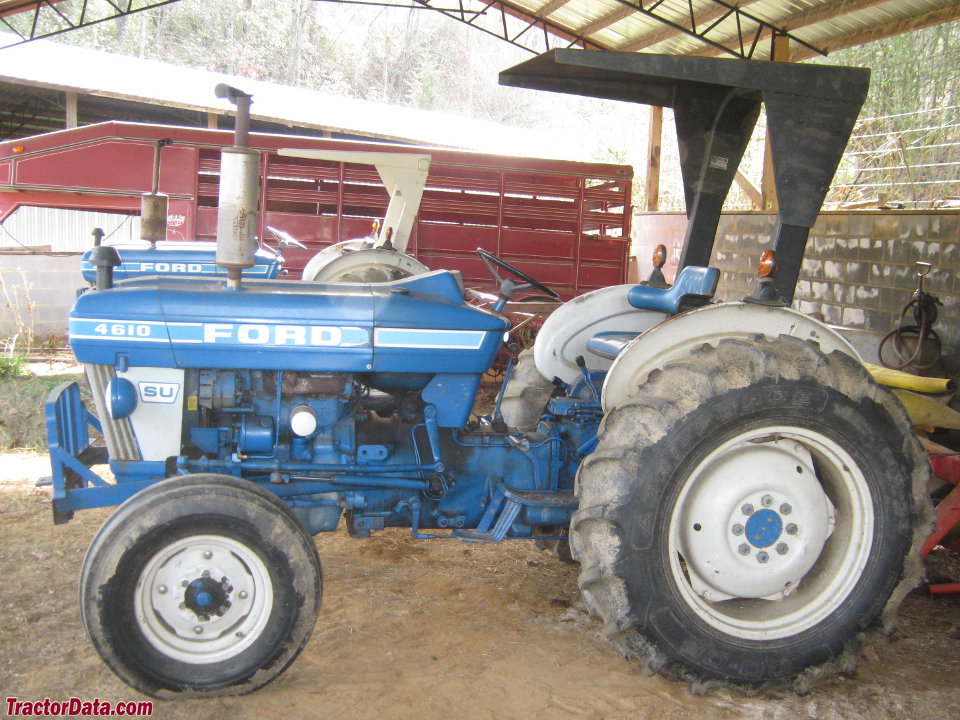

Ford 4610SU
Ford 4610SU — 10 Utility Series · 63 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
63 hp
Max power
33.0 kW
Weight
2084 kg
Hover a source tag to verify
Overview
ManufacturerFordReference
Utility tractorReference
The Ford 4610SU fitted the 4610 engine into a 3610 frame.Reference
Two-wheel driveReference
Final drivesinboard planetaryReference
Differential lockmechanical rearReference
Power steeringReference
Differential wet disc brakesReference
Two-post fixed ROPS.Reference
Variants
4610utility frameReference
4610SUsmall frameReference
4610HhighwayReference
4610 LCGmowing tractorReference
Engine
Ford 3.3L 3-cyl dieselReference
Ford 3.3L 3-cyl gasolineReference
Engine (gross)47.0 kWReference
Engine44.7 kWReference
Drawbar (tested)33.0 kWReference
FordReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke112 x 112 mmReference
Power44.7 kWReference
Power (gross)47.0 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Compression15.3:1Reference
Rated RPM2200Reference
Torque228.5 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Oil capacity6.6 LReference
Coolant capacity10.4 LReference
gasolineReference
Power41.8 kWReference
Power (gross)44.7 kWReference
Compression7.75:1Reference
Torque234.6 NmReference
Torque RPM1100Reference
Power at rated engine speed39.2 kWReference
Max power33.0 kWReference
Power at rated engine speed39.0 kWReference
Max power32.2 kWReference
Transmission
8-speedReference
8-speed synchromeshReference
TransmissionDual RangeReference
Gears8 forward and 2 reverseReference
Clutch330mm dry discReference
Oil capacity12.0 LReference
TypesynchromeshReference
Gears8 forward and 4 reverseReference
Oil capacity9.4 LReference
PTO & Hydraulics
PTO (claimed)38.8 kWReference
PTO (tested)39.2 kWReference
Hydraulic system45.8 LReference
Typeopen centerReference
Capacity45.8 LReference
Pressure172.4 barReference
Pump flow32.2 lpmReference
Steering cap.3.4 LReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift (at 24"/610mm)1397 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Engine RPM540@1800Reference
Power at rated PTO speed34.8 kWReference
Power at rated PTO speed35.3 kWReference
Capacities
Fuel49.2 LReference
Steering3.4 LReference
Dimensions
Wheelbase196 cmReference
Weight2084 kgReference
Front tire7.50-15Reference
Rear tire16.9-24Reference
Ag front7.50-15Reference
Ag rear16.9-24Reference
Ag front7.50-16Reference
Ag rear13.6-28Reference
Ag rear14.9-28Reference
Length341 cmReference
Width179 cmReference
Operating weight2084 kgReference
Ballasted weight3402 kgReference
Ground clearance43 cmReference
Front tread132 to 203 cmReference
Rear tread142 to 203 cmReference
Steering wheel149 cmReference
Ford 4610SU attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Mk I Charging amps32Reference
Mk II Charging amps51Reference
Battery volts12Reference
Diesel Battery AH128Reference
Gas Battery AH77Reference
Attachment overview
Ford 776A loaderReference
Ford 776B loaderReference
Ford 730 loaderReference
Ford 4610SU Height
Hood133 cmReference
ROPS237 cmReference
Exhaust206 cmReference
Test results
NTTL 1426: diesel 8x2 2WDReference
NTTL 1427: diesel 8x4 2WDReference
Diesel 8x2 2WDMarch 16 - April 1, 1982Link: Nebraska Tractor Test 1426 fileReference
PTO performanceReference
Fuel use12.5 l/hourReference
Fuel use3.8 l/hourReference
Drawbar performanceReference
Fuel use12.1 l/hourReference
Gear 5 used for power test.Reference
Max pull2903 kgReference
Gear 2 used for pull test.Reference
Diesel 8x4 2WDApril 24 - May 15, 1982Link: Nebraska Tractor Test 1427 fileReference
Fuel use10.6 l/hourReference
Max pull2963 kgReference
Speeds
With 14.9x28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
