Tractor · 1990Unverified

Ford 4630

Name: Ford 4630
Brand: Ford

Ford 4630 — 30 Utility Series · 55 hp. Reference specifications; pending source verification.

The Ford 4630 is a compact tractor, rated at 55 hp, and was manufactured from 1990 to 1993. It is equipped with a 3-cylinder turbocharged diesel liquid-cooled engine and features four-wheel drive with a powershift transmission. The tractor's listed weight is 5194 to 6062 pounds. It is designed for use on small to medium-sized plots of land, covering areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

55 hp

Max power

34.7 kW

Weight

5194 to 6062 pounds

Catalogue coverage

Variants represented

Richest spec table

120 rows

Recorded power

55 hp

Transmissions

8-speed gear

Production years

1990-1993

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFordReference

Utility tractorReference

Original price$26,200 (1999 2WD )Reference

Original price$31,700 (1999 4WD )Reference

Two- or four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Two-post ROPS. Cab optional.Reference

Engine

Ford 3.3L 3-cyl dieselReference

Ford 3.1L 3-cyl dieselReference

ROPS Fuel tank65.5 LReference

Cab Fuel tank95.8 LReference

Engine44.7 kWReference

Drawbar (tested)36.2 kWReference

FordReference

dieselReference

3-cylinderReference

liquid-cooledReference

Original, naturally-aspirated, engine used until 1995.Reference

Displacement3.3 LReference

Bore/Stroke112 x 112 mmReference

Power44.7 kWReference

Compression16.3:1Reference

Rated RPM2200Reference

Starter volts12Reference

Coolant capacity10.6 LReference

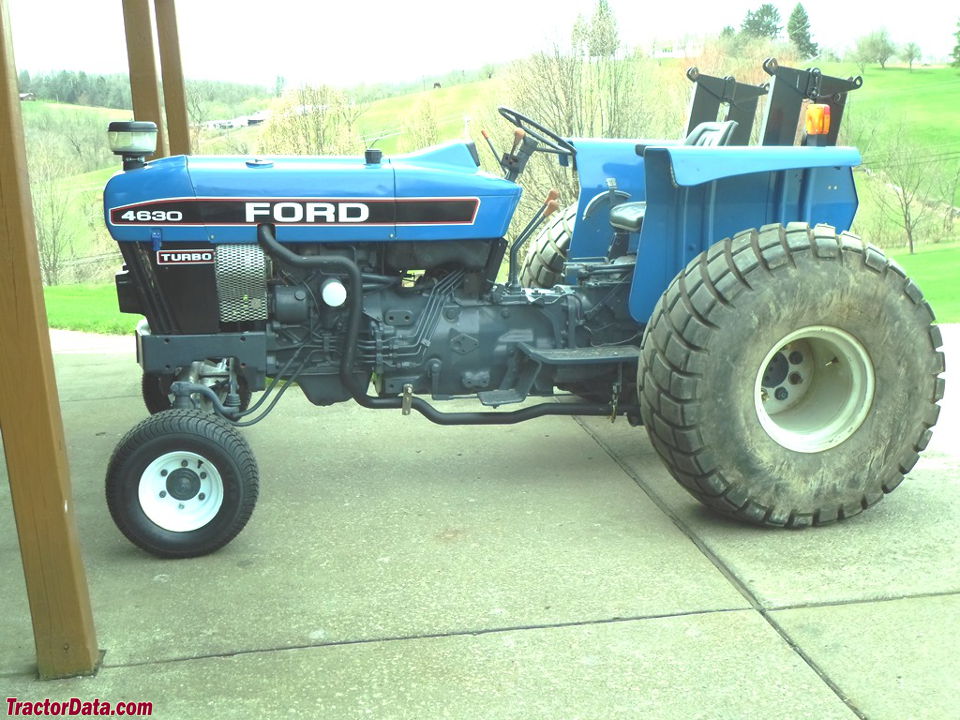

turbocharged dieselReference

Turbocharged engine introduced on the 4630 in 1995, tractor serial number BD81699.Reference

Displacement3.1 LReference

Bore/Stroke112 x 107 mmReference

Compression16.1:1Reference

Power at rated engine speed41.3 kWReference

Max power34.7 kWReference

Power at rated engine speed42.4 kWReference

Max power36.2 kWReference

Transmission

8-speed gearReference

8-speed synchronized shuttleReference

16-speed partial power shiftReference

TypegearReference

Gears8 forward and 2 reverseReference

Clutchdry discReference

Typesynchronized shuttleReference

Gears8 forward and reverseReference

TransmissionDual-PowerReference

Typepartial power shiftReference

Gears16 forward and 8 reverseReference

Dual-Power provides a push-button power shift between direct drive and a lower range.Reference

PTO & Hydraulics

PTO (claimed)41.0 kWReference

PTO (tested)42.4 kWReference

Typeopen centerReference

Typeclosed centerReference

Pressure172.4 barReference

Valves1 to 2 (Open center)Reference

Valves1 to 4 (closed center)Reference

Pump flow32.2 lpmReference

Pump flow53.4 lpmReference

Steering flow13.6 lpmReference

Rear TypeII/IReference

Controlposition control with top link draft sensingReference

Rear lift1397 kgReference

Rear PTOindependentReference

Rear PTO Type540Reference

Engine RPM540@1800Reference

Engine RPM540@1755 (shuttle)Reference

Power at rated PTO speed37.9 kWReference

Power at rated PTO speed39.6 kWReference

Dimensions

2WD Wheelbase214 cmReference

4WD Wheelbase213 cmReference

Weight5194 to 6062 poundsReference

Front tire7.50-15Reference

Rear tire13.6-28Reference

Ag front7.50-15Reference

Ag rear13.6-28Reference

Length353 cmReference

Width176 cmReference

Ground clearance34 cmReference

2WD ROPS Shipping2355 kgReference

4WD ROPS Shipping2749 kgReference

4WD ROPS Operating2576 kgReference

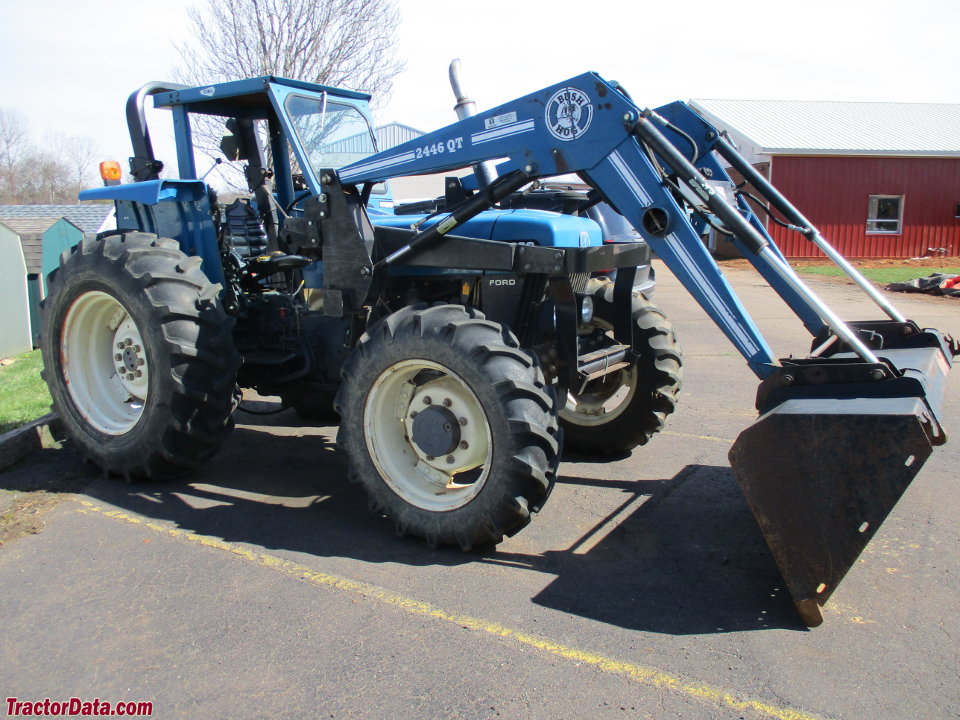

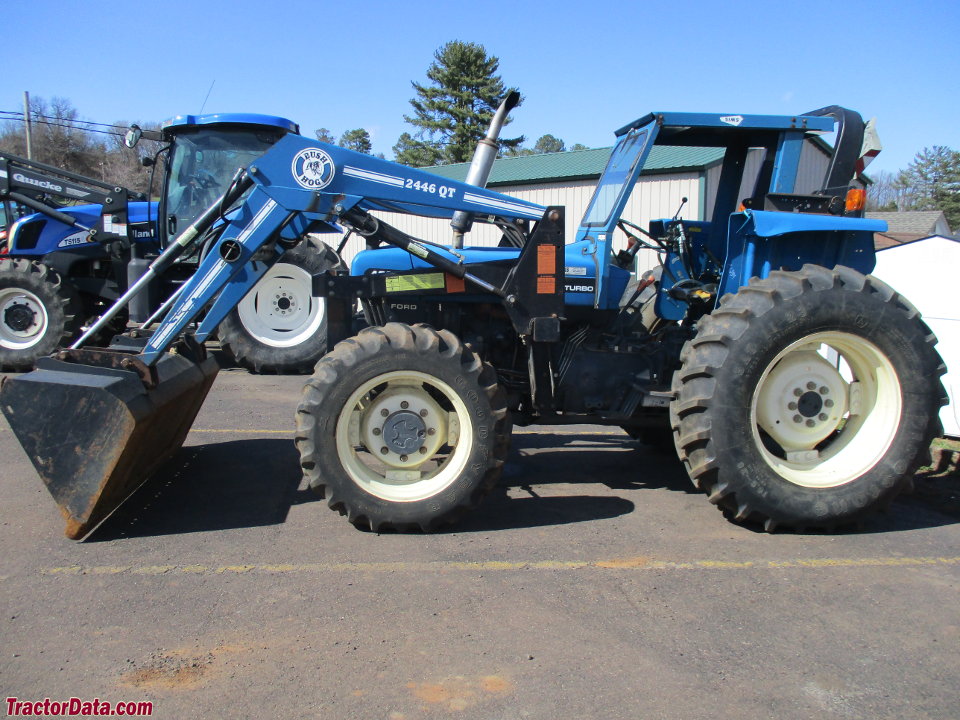

Ford 4630 attachments

front-end loaderReference

4630 Serial Numbers

Location:Serial number decal inside the hood panel.Reference

1990BC26239Reference

1991BC68791Reference

1992BD05270Reference

1993BD36800Reference

1994BD64162Reference

1995BD93484Reference

199602658BReference

1997056083BReference

1998083357BReference

1999111612BReference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

ROPS Charging amps55 (early)Reference

ROPS Charging amps45 (late)Reference

Cab Charging amps70Reference

Battery CCA800Reference

Battery volts12Reference

Attachment overview

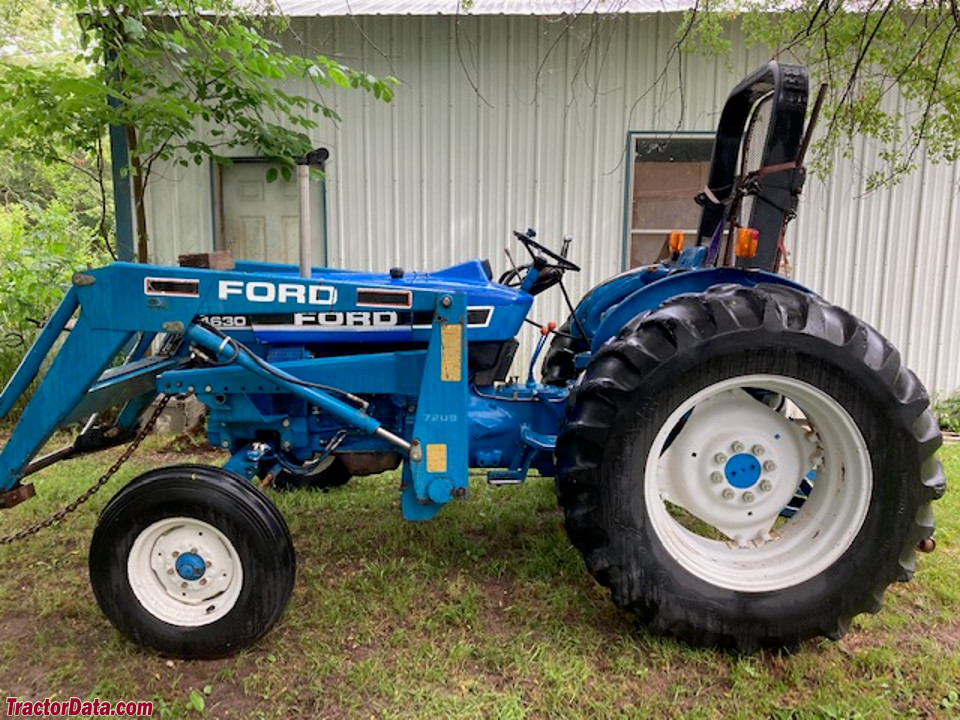

Ford 7209 loaderReference

Ford 7210 loaderReference

Ford 7310 loaderReference

Ford 7410 loaderReference

Ford 4630 Height

ROPS250 cmReference

Cab252 cmReference

Exhaust236 cmReference

Test results

OECD 1645: 3.3L diesel 8-speed 4WDReference

OECD 1703: 3.1L diesel 16-speed 4WDReference

3.3L diesel 8-speed 4WDApril 30 - May 3, 1991Link: OCED Tractor Test 1645 fileReference

PTO performanceReference

Fuel use14.0 l/hourReference

Fuel use12.1 l/hourReference

Drawbar performanceReference

Gear 2H used for power test.Reference

Max pull2192 kgReference

Gear 3L used for pull test.Reference

3.1L diesel 16-speed 4WDOctober 23 - 27, 1995Link: OCED Tractor Test 1703 fileReference

Gear 6L used for power test.Reference

Max pull2572 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
