Tractor · 1990Unverified

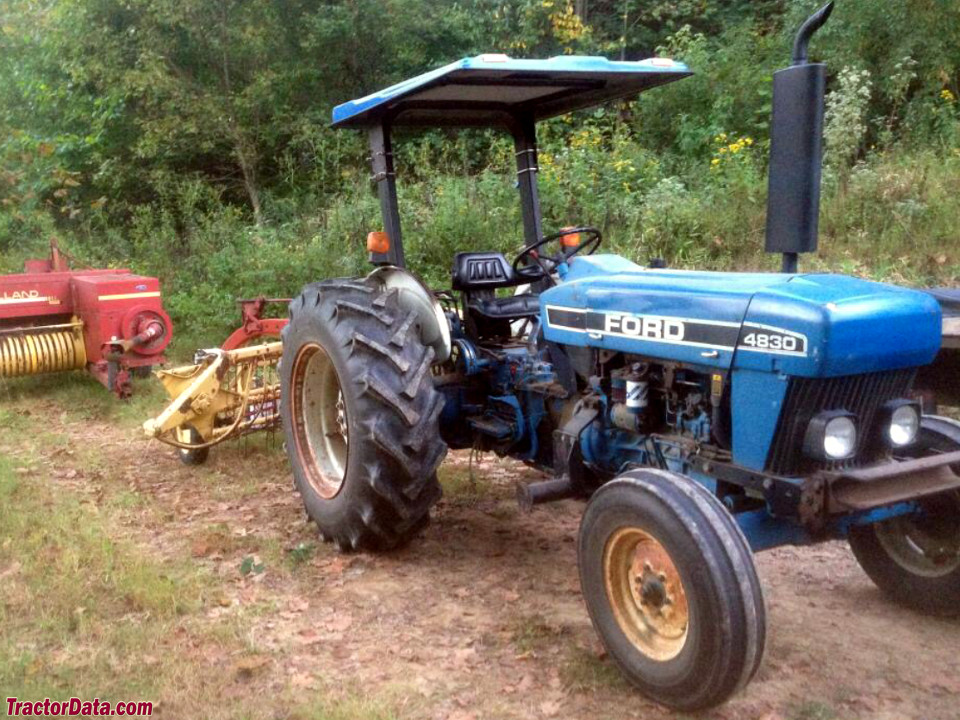

Ford 4830
Ford 4830 — 30 Utility Series · 65 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
65 hp
Weight
6527 to 7497 pounds
Hover a source tag to verify
Overview
ManufacturerFordReference
Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Two-post ROPS.Reference
Engine
Ford 4.2L 4-cyl dieselReference
Fuel tank65.1 LReference
Engine48.5 kWReference
FordReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke112 x 107 mmReference
Power48.5 kWReference
Rated RPM2200Reference
Torque79.2 NmReference
Torque RPM1200Reference
Starter volts12Reference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
Gears8 forward and reverseReference
PTO & Hydraulics
Total flow54.1 lpmReference
Rear lift2630 kgReference
Rear PTO Type540Reference
Dimensions
Wheelbase228 cmReference
Weight6527 to 7497 poundsReference
Front tire7.50-18Reference
Rear tire13.6R36Reference
Ag front7.50-18 (2WD)Reference
Ag front11.2R28 (4WD)Reference
Ag rear13.6R36Reference
Length382 cmReference
Height250 cmReference
2WD Weight2960 kgReference
4WD Weight3400 kgReference

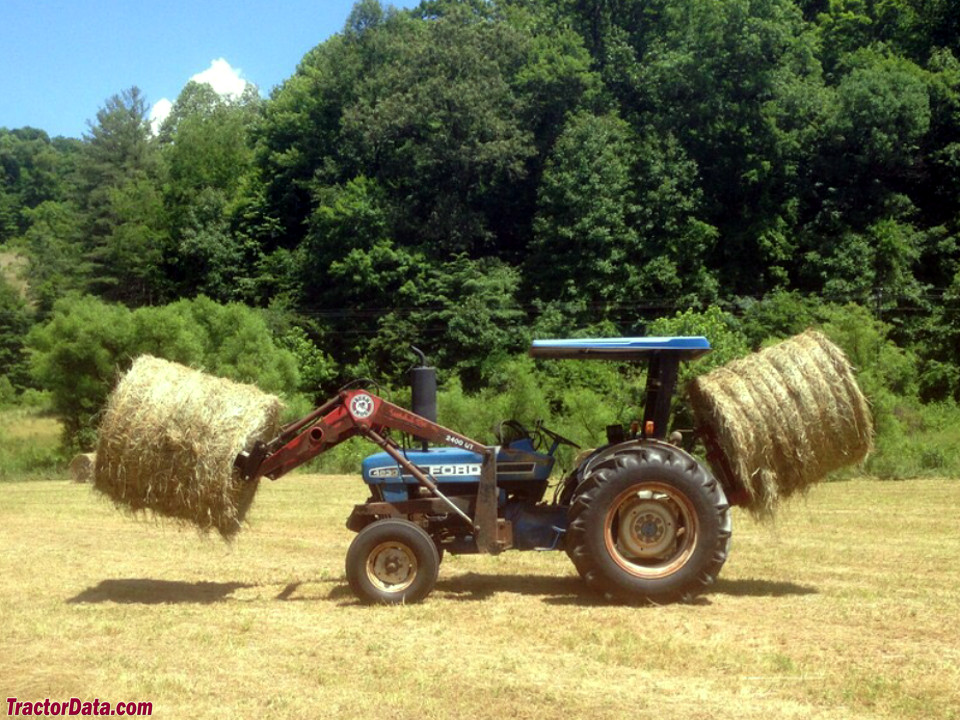

Ford 4830 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
Ford 7210 loaderReference
Ford 7310 loaderReference
Ford 7410 loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
