Tractor · 1965Unverified
Ford 5000
Ford 5000 — Model year 1965-19671968-1976 · 56 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
56 hp
Max power
35.5 kW
Weight
5740 to 6250 pounds
Hover a source tag to verify
Overview
ManufacturerFordReference
Row-Crop tractorReference
Built in Highland Park, Michigan, USAReference
Original price was $5,400 in 1967Reference
Two-wheel driveReference
Differential lockmechanical rearReference
GP Steeringpower assistReference
Row-crop Steeringhydrostatic powerReference
Differential mechanical wet disc brakesReference
Open operator station.Reference
Variants
5100general purposeReference
5200row-cropReference
Engine
Ford 3.8L 4-cyl gasolineReference
Ford 3.8L 4-cyl dieselReference
Engine51.5 kWReference
Drawbar (tested)37.9 kWReference
FordReference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement3.8 LReference
Bore/Stroke107 x 107 mmReference
Power51.5 kWReference
Compression8.0:1Reference
Rated RPM2100Reference
Firing order1-3-4-2Reference
Starter volts12Reference
Coolant capacity14.5 LReference
Intake valve clearance0.381 mmReference
Exhaust valve clearance0.457 mmReference
Oil capacity7.6 LReference
dieselReference
Compression16.5:1Reference
Power at rated engine speed41.7 kWReference
Max power35.5 kWReference
Power at rated engine speed40.4 kWReference
Max power33.8 kWReference
Power at rated engine speed45.0 kWReference
Max power37.9 kWReference
Power at rated engine speed43.6 kWReference
Max power36.9 kWReference
Transmission
8-speedReference
10-speed full power shiftReference
16-speed partial power shiftReference
Transmissionsliding gearReference
Gears8 forward and 2 reverseReference
Oil capacity10.2 LReference
Oil typeM-4864-AReference
Four-speed gear selector on left, high-low range select lever on right. Tractor must be stopped before shifting.Reference
TransmissionSelect-O-SpeedReference
Typefull power shiftReference
Gears10 forward and 2 reverseReference
Oil capacity11.2 LReference
Oil typeM2C41Reference
Transmission can shifted between gears while moving.Reference
TransmissionDual PowerReference
Typepartial power shiftReference
Gears16 forward and 4 reverseReference
Dual Power adds a power shift underdrive to the basic 8-speed transmission.Reference
PTO & Hydraulics
Diesel PTO (claimed)41.7 kWReference
Gas PTO (claimed)45.0 kWReference
PTO (tested)45.0 kWReference
Hydraulic system32.9 LReference
Typeopen centerReference
Capacity32.9 LReference
Pressure172.4 barReference
Pump flow22.7 lpmReference
Steering flow17.0 lpmReference
Steering press.72.4 barReference
Rear TypeII/IReference
Rear PTOindependentReference
Clutchwet discReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1900Reference
Engine RPM1000@2060Reference
Power at rated PTO speed39.7 kWReference
Power at rated PTO speed38.4 kWReference
Power at rated PTO speed42.5 kWReference
Power at rated PTO speed41.3 kWReference
Capacities
Fuel75.7 LReference
Dimensions
GP Wheelbase222 cmReference
Row-crop Wheelbase243 cmReference
Weight5740 to 6250 poundsReference
Front tire6.00-16Reference
Rear tire12.4-38Reference
Ag front6.00-16Reference
Ag rear12.4-38Reference
Ag front7.50-16Reference
Ag rear16.9-30Reference
Ag rear13.6-38Reference
Ag rear15.5-38Reference
GP Length359 cmReference
Row-crop Length378 cmReference
Width173 cmReference
Ground clearance36 cmReference
GP Front tread132 to 203 cmReference
Row-crop Front tread142 to 223 cmReference
Rear tread142 to 203 cmReference
Rear tread142 to 228 cmReference
GP Shipping2603 kgReference
Row-crop Shipping2835 kgReference
Operating2660 kgReference
Ballasted4399 kgReference
Steering wheel161 cmReference

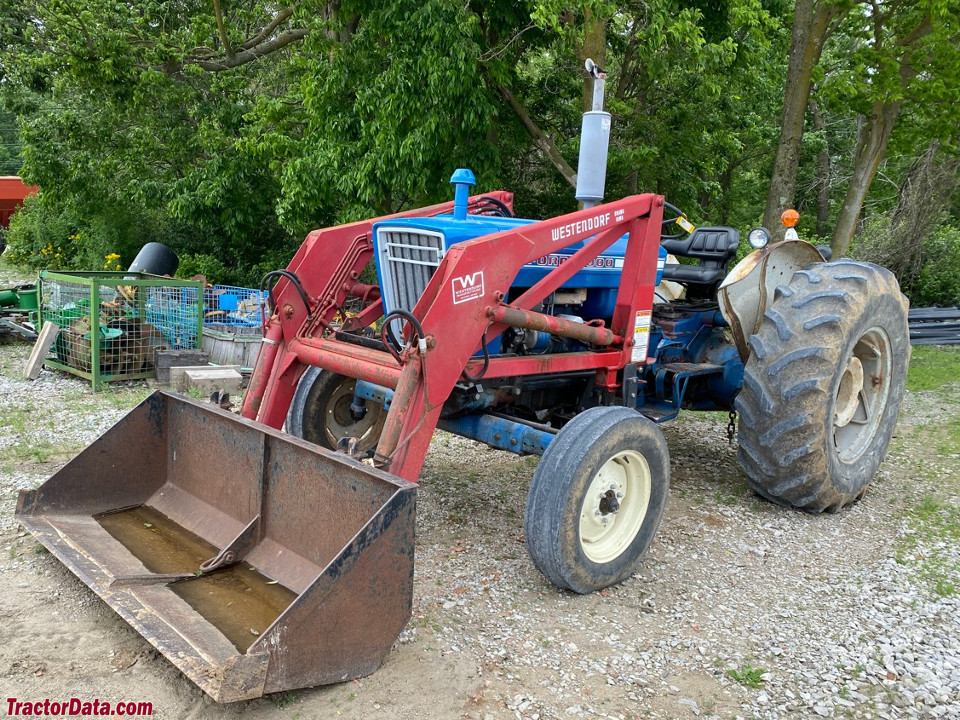

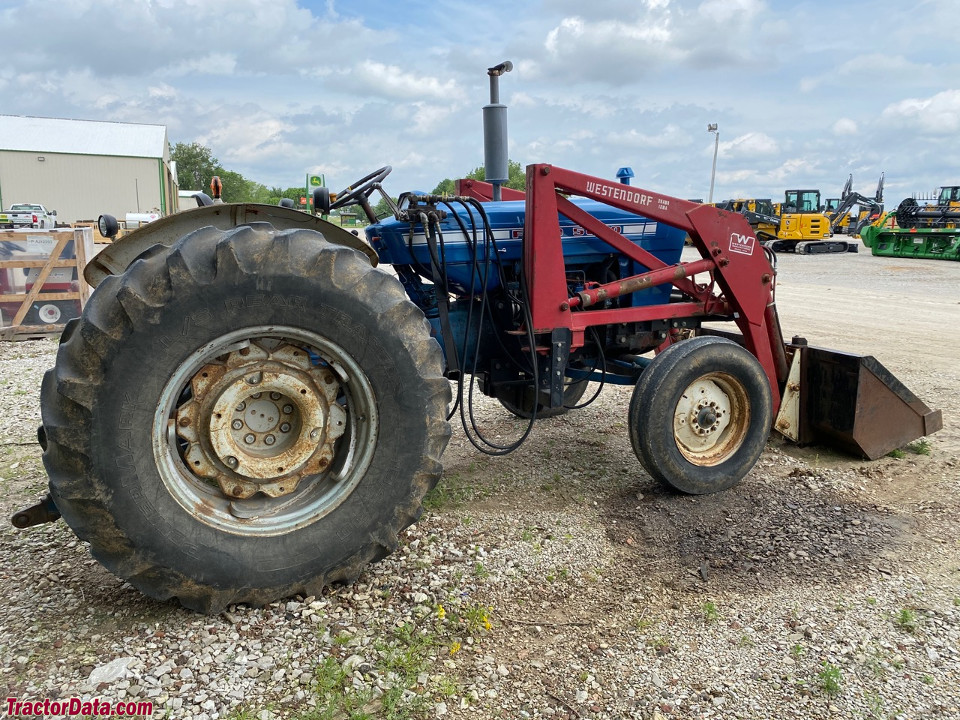

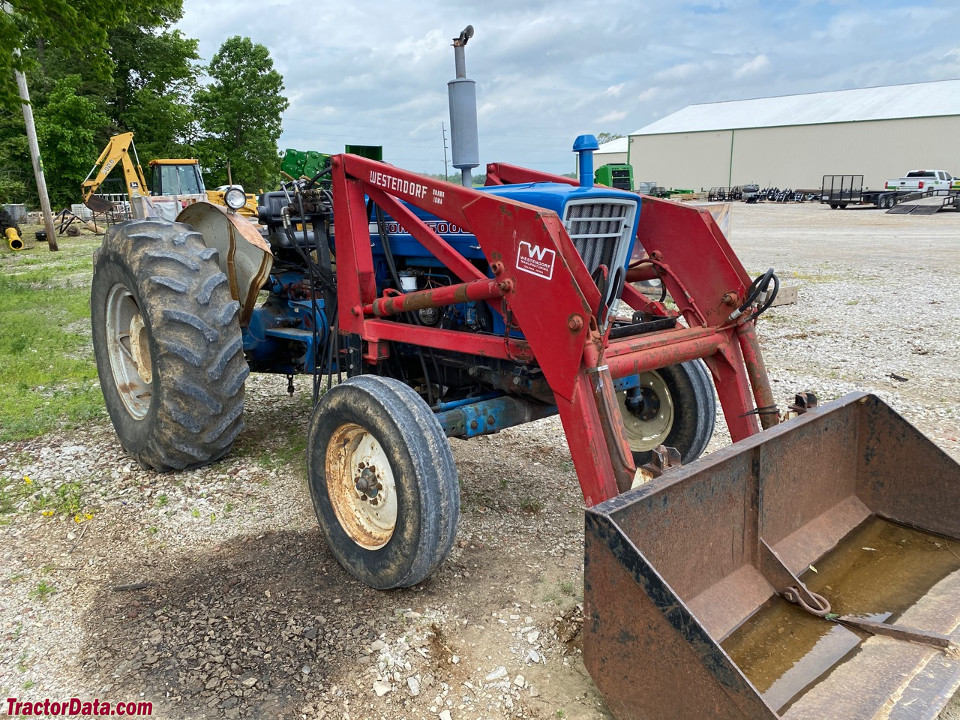

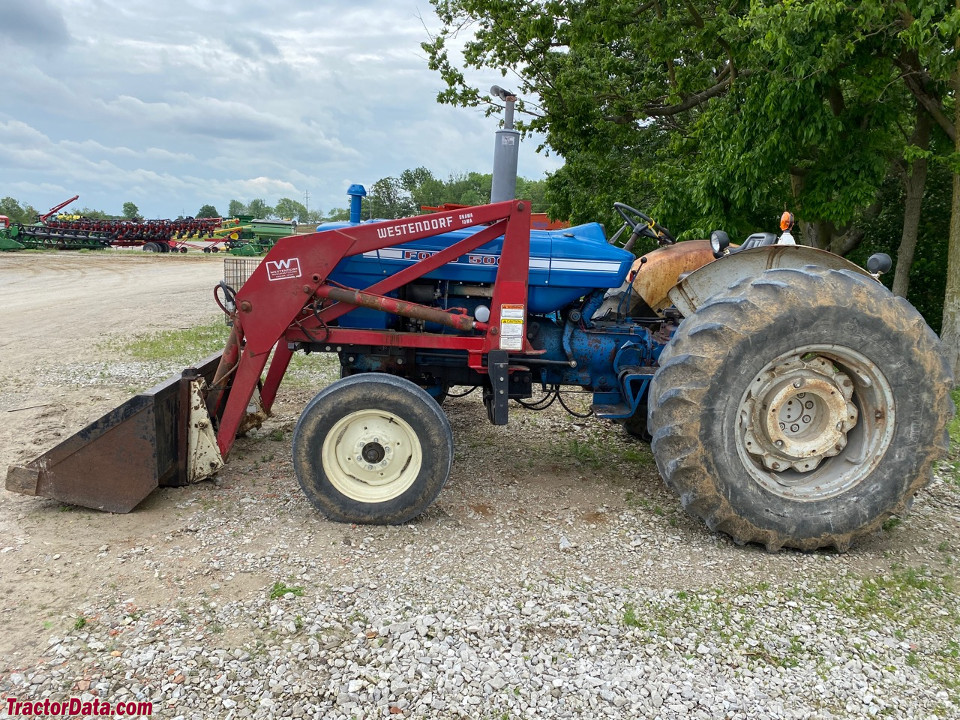

Ford 5000 attachments
front-end loaderReference
5000 Serial Number Location
Transmission, front upper-right corner, stamped into top of casting. Serial numbers for US-production Ford tractors shown.Reference
5000 Serial Numbers
1965C100000Reference
1966C124200Reference
1967C161300Reference
1968C190200Reference
1969C226000Reference
1970C257600Reference
1971C292100Reference
1972C327200Reference
1973C367300Reference
1974C405200Reference
1975C450700Reference
1976C490300Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemgeneratorReference
Charging amps22Reference
Battery volts12Reference
Gas Battery AH80Reference
Diesel Battery AH128Reference
Ford 5000 Height
GP Hood154 cmReference
Row-crop Hood172 cmReference
Exhaust219 cmReference
Test results
NTTL 879: diesel 8-speed 2WDReference
NTTL 880: diesel Select-O-Speed 2WDReference
NTTL 932: gasoline 8-speed 2WDReference
NTTL 933: gasoline Select-O-Speed 2WDReference
Diesel 8-speed 2WDMarch 16 - April 9, 1965Link: Nebraska Tractor Test 879 fileReference
PTO performanceReference
Fuel use13.6 l/hourReference
Fuel use12.1 l/hourReference
Drawbar performanceReference
Gear 4 used for power test.Reference
Max pull3171 kgReference
Gear 2 used for pull test.Reference
Diesel Select-O-Speed 2WDMarch 18 - April 10, 1965Link: Nebraska Tractor Test 880 fileReference
Fuel use13.2 l/hourReference
Gear 6 used for power test.Reference
Max pull3162 kgReference
Gear 4 used for pull test.Reference
Gasoline 8-speed 2WDApril 13 - 21, 1966Link: Nebraska Tractor Test 932 fileReference
Fuel use19.3 l/hourReference
Fuel use18.2 l/hourReference
Fuel use18.9 l/hourReference
Max pull3213 kgReference
Gasoline Select-O-Speed 2WDApril 13 - 22, 1966Link: Nebraska Tractor Test 933 fileReference
Fuel use17.8 l/hourReference
Max pull3208 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
