Tractor · 1962Unverified
Ford 5000 Diesel
Ford 5000 Diesel · 52 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
52 hp
Max power
30.0 kW
Weight
2519 kg
Hover a source tag to verify
Overview
ManufacturerFordReference
Built in Dagenham, EnglandReference

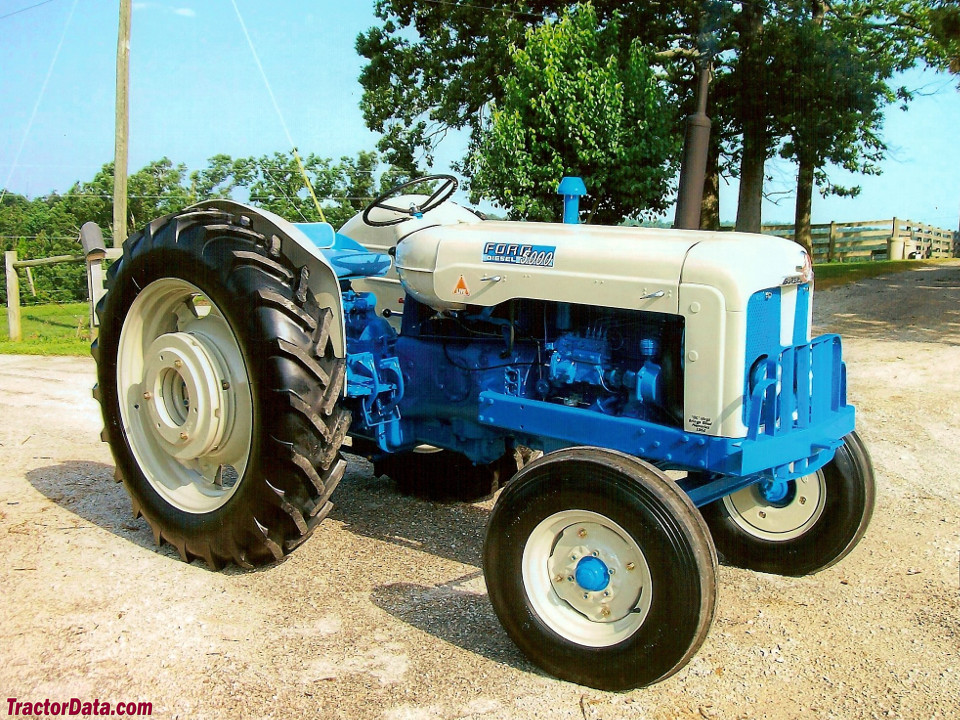

The Ford 5000 Diesel was the British-built Fordson Super Major with a different paint scheme. The 5000 Diesel was imported into the United States to provide a large diesel tractor to Ford dealers. The tractor had no relation, other than name, to the later Ford 5000 that followed it. The 5000 Diesel featured a blue and cream paint scheme, and new decals, although it retained the Super Major hood badge.Reference
Two-wheel driveReference

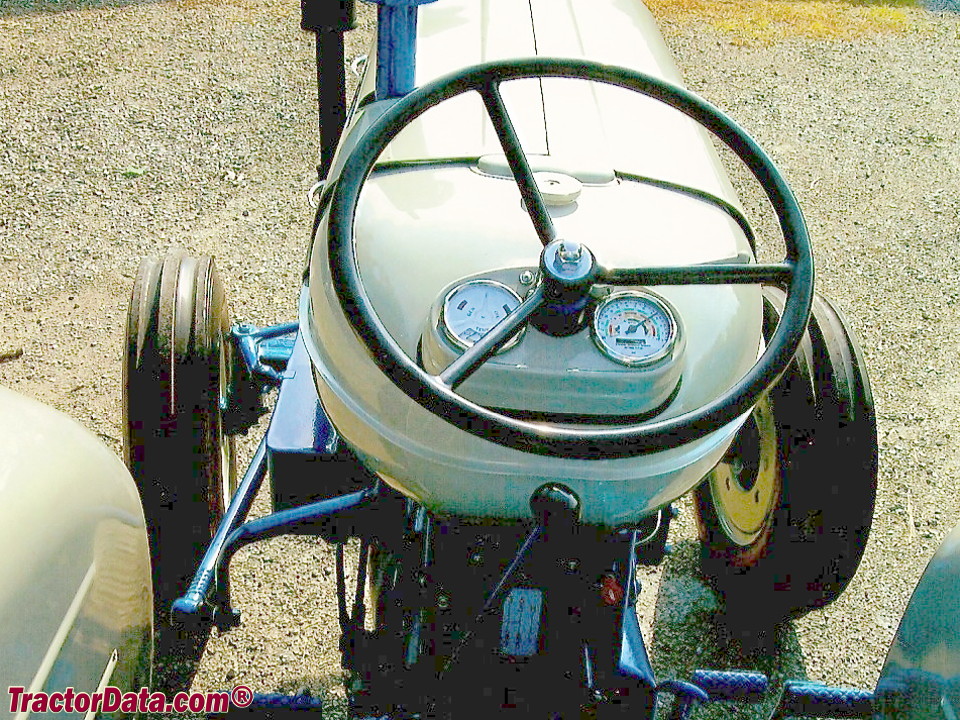

Steeringpower assistReference
Differential mechanical disc brakesReference
Open operator station.Reference
Variants
Super MajorBritish modelReference
Engine
Ford 3.6L 4-cyl dieselReference
Fuel tank68.1 LReference
Engine (gross)38.6 kWReference
Drawbar (claimed)32.8 kWReference
Belt (claimed)37.4 kWReference
Plows4Reference
Drawbar (tested)30.0 kWReference
FordReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.6 LReference
Bore/Stroke100 x 115 mmReference
Power (gross)38.6 kWReference
Air cleaneroil bathReference
Compression16:1Reference
Rated RPM1700Reference
Torque231.9 NmReference
Torque RPM1200Reference
StarterelectricReference
Starter volts12Reference
Oil capacity7.9 LReference
Coolant capacity13.6 LReference
Power at rated engine speed35.4 kWReference
Max power30.0 kWReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Three speeds, plus reverse, with high and low selector. Clutch must be used to shift gears or range.Reference
PTO & Hydraulics
PTO (tested)35.4 kWReference
Rear TypeII/IReference
Rear PTO Type540Reference
Power at rated PTO speed32.0 kWReference
Dimensions
Wheelbase203 cmReference
Weight2519 kgReference
Front tire7.50-15Reference
Rear tire16.9-30Reference
Weight1365 kgReference
Ag front7.50-15Reference
Ag rear16.9-30Reference
Length331 cmReference
Height (steering wheel)163 cmReference
Height (exhaust)198 cmReference
Operating weight2519 kgReference
Ballasted weight4919 kgReference
Ford 5000 Diesel attachments

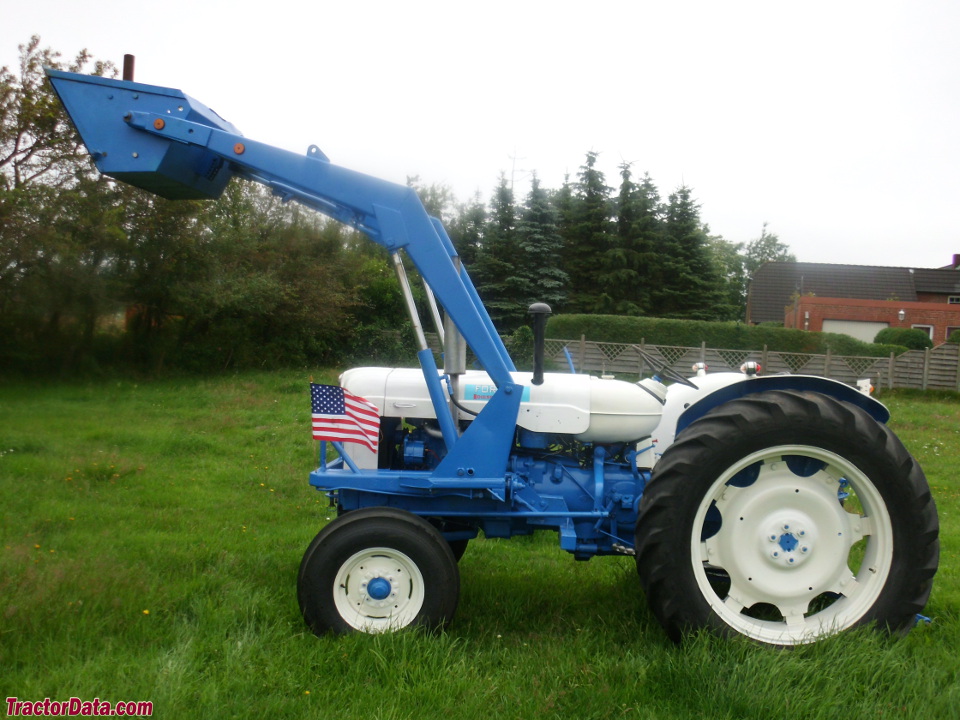

front-end loaderReference
backhoeReference
Capacities
Diameter21 cmReference
Width16 cmReference
RPM946 (low)Reference
RPM1,700 (high)Reference
Speed641.60 meters/minReference
Speed1153.06 meters/minReference
Electrical
Charging systemgeneratorReference
Batteries2Reference
Battery volts6Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Ford 723 19-301 Backhoe
Backhoe typeFord 723 19-301 BackhoeReference
Transport height378 cmReference
Digging depth426 cmReference
2-Foot flat digging depth411 cmReference
Reach from pivot525 cmReference
Loading height317 cmReference
Swing Arc185°Reference
Test results
Diesel 6-speed 2WDSeptember 3 - 7, 1963Link: Nebraska Tractor Test 845 fileReference
PTO performanceReference
Fuel use11.7 l/hourReference
Fuel use10.6 l/hourReference
Drawbar performanceReference
Fuel use11.4 l/hourReference
Gear 3 used for power test.Reference
Max pull3686 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
