Tractor · 1992Unverified

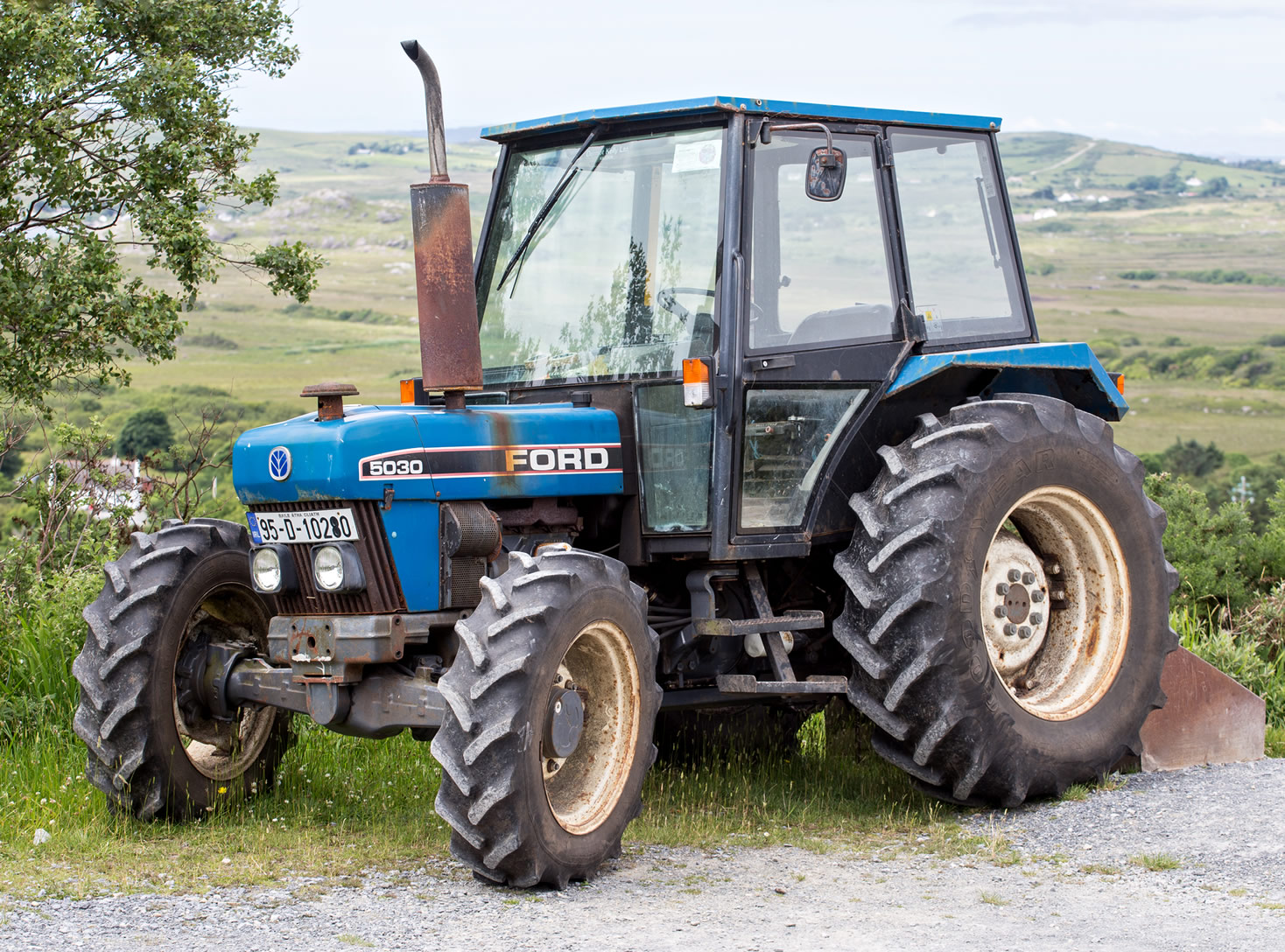

Ford 5030
Ford 5030 — 30 Utility Series · 64 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
64 hp
Max power
40.1 kW
Weight
5547 to 6415 pounds
Hover a source tag to verify
Overview
ManufacturerFordReference
Utility tractorReference
Built in Basildon, EnglandReference
Original price was $25,500 in 1998Reference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Differential wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Engine
Ford 4.2L 4-cyl dieselReference
Drawbar (tested)40.1 kWReference
FordReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke112 x 107 mmReference
Air cleanerdual paper elementsReference
Compression16.3:1Reference
Rated RPM2200Reference
Starter volts12Reference
Coolant capacity12.5 LReference
Power at rated engine speed47.4 kWReference
Max power40.1 kWReference
Transmission
8-speed gearReference
8-speed mechanical shuttleReference
16-speed two-speed power shiftReference
TypegearReference
Gears8 forward and 2 reverseReference
Typemechanical shuttleReference
Gears8 forward and reverseReference
Four gears in two ranges with left-hand shuttle.Reference
TransmissionDual PowerReference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
PTO (claimed)46.2 kWReference
PTO (tested)47.4 kWReference
Hydraulic system48.1 LReference
Typeopen centerReference
Typeclosed centerReference
Capacity48.1 LReference
Valves2 to 4Reference
Pump flow30.3 lpmReference
Pump flow54.5 lpmReference
Steering flow13.6 lpmReference
Rear TypeII/IReference
Controltop-link draft sensingReference
Rear lift1397 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1800Reference
Power at rated PTO speed41.9 kWReference
Capacities
ROPS Fuel65.5 LReference
Cab Fuel95.8 LReference
Dimensions
2WD Wheelbase227 cmReference
4WD Wheelbase226 cmReference
Weight5547 to 6415 poundsReference
Front tire7.50-16Reference
Rear tire13.6-36Reference
Ag front7.50-16Reference
Ag rear13.6-36Reference
2WD Length364 cmReference
4WD Length381 cmReference
Width176 cmReference
Ground clearance47 cmReference
2WD ROPS Shipping2516 kgReference
4WD ROPS Shipping2909 kgReference
Operating2716 kgReference
Ballasted3742 kgReference
Ford 5030 attachments
front-end loaderReference
5030 Serial Numbers
Location:Serial number decal inside the hood panel.Reference
1992BD08911Reference
1993BD29691Reference
1994BD64266Reference
1995BD87933Reference
1996021901BReference
1997056392BReference
1998083357BReference
1999111612BReference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps55 (early)Reference
ROPS Charging amps45 (late)Reference
Cab Charging amps70Reference
Battery CCA800Reference
Battery volts12Reference
Ford 5030 Height
ROPS251 cmReference
Cab251 cmReference
Exhaust258 cmReference
Test results
Diesel 16-speed 4WDOctober 4 - 25, 1995Link: OCED Tractor Test 1704 fileReference
PTO performanceReference
Fuel use15.9 l/hourReference
Fuel use13.6 l/hourReference
Drawbar performanceReference
Gear 6L used for power test.Reference
Max pull3520 kgReference
Gear 3L used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
