Tractor · 1988Unverified

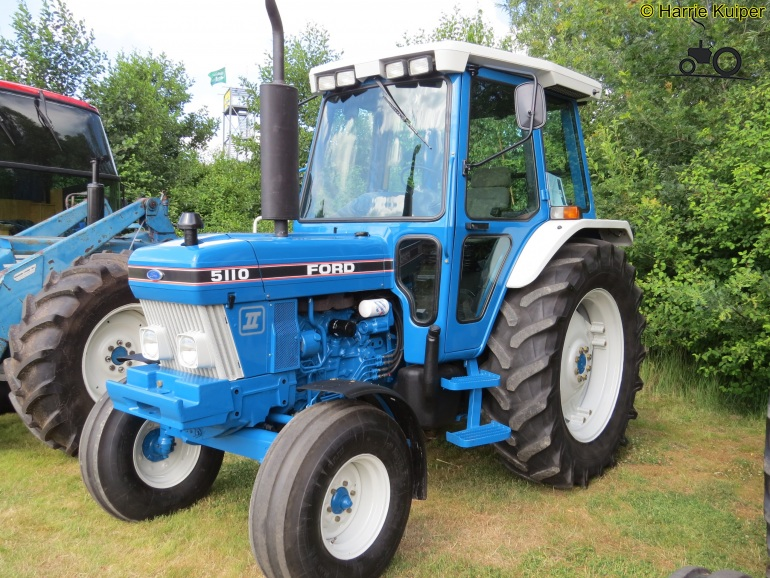

Ford 5110 Mark III
Ford 5110 Mark III — 10 Mark III Series · 65 hp. Reference specifications; pending source verification.
The Ford 5110 Mark III tractor is a 65 hp model, positioned in the middle of its class in terms of power output. It was produced from 1988 to 1991, featuring a 4-cylinder diesel liquid-cooled engine that powers a mechanical front-wheel drive system with a hydrostatic transmission. The tractor's weight is listed as 7738 to 8466 pounds. It is designed for use on plots of approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
65 hp
Weight
7738 to 8466 pounds
Catalogue coverage
Variants represented
2
Richest spec table
34 rows
Recorded power
65 hp
Recorded weight
3840 kg
Transmissions
8-speed
Production years
1988-1991
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerFordReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD optionalReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Engine
Ford 4.2L 4-cyl dieselReference
Fuel tank79.9 LReference
Engine48.5 kWReference
FordReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke112 x 107 mmReference
Power48.5 kWReference
Rated RPM2070Reference
Torque260.1 NmReference
Torque RPM1200Reference
Transmission
8-speedReference
Gears8 forward and 4 reverseReference
PTO & Hydraulics
Pump flow36.0 lpmReference
Rear lift2570 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase221 cmReference
Weight7738 to 8466 poundsReference
Front tire7.50-20Reference
Rear tire13.6-36Reference
Ag front7.50-20 (2WD)Reference
Ag front12.4-24 (4WD)Reference
Ag rear13.6-36Reference
Length293 cmReference
Height277 cmReference
Weight3840 kgReference
Weight3509 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
