Tractor · 1982Unverified

Ford 5610

Name: Ford 5610
Brand: Ford

Ford 5610 — 10 Series · 72 hp. Reference specifications; pending source verification.

The Ford 5610 is a tractor model with a power rating of 72 hp, positioning it within the middle range of its class. This model was in production from 1982 to 1993 and features a 4-cylinder diesel liquid-cooled engine. It is equipped with a powershift transmission and four-wheel drive, with a listed weight of 5695 to 6300 pounds. The tractor is suitable for a workload of around 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

72 hp

Max power

39.8 kW

Weight

5695 to 6300 pounds

Catalogue coverage

Variants represented

Richest spec table

142 rows

Recorded power

72 hp

Transmissions

8-speed

Production years

1982-1993

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFordReference

Utility tractorReference

Original price was $24,500 in 1993Reference

Two- or four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Differential mechanical wet disc brakesReference

Two-post fixed ROPS. Cab optional with air-conditioning.Reference

Variants

5610 II1986-1993Reference

5610Seconomy modelReference

Engine

Ford 4.2L 4-cyl dieselReference

Engine (gross)53.7 kWReference

Engine51.1 kWReference

Drawbar (tested)39.8 kWReference

FordReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement4.2 LReference

Bore/Stroke112 x 107 mmReference

Power51.1 kWReference

Power (gross)53.7 kWReference

Air cleanerdryReference

Compression16.3:1Reference

Rated RPM2100Reference

Torque260.4 NmReference

Starter volts12Reference

Oil capacity8.5 LReference

Coolant capacity12.8 LReference

Power at rated engine speed46.6 kWReference

Max power39.8 kWReference

Power at rated engine speed46.7 kWReference

Max power39.5 kWReference

Transmission

8-speedReference

8-speed synchromeshReference

16-speed partial power shiftReference

16-speed synchromesh partial power shiftReference

TransmissionDual-rangeReference

Gears8 forward and 2 reverseReference

Clutch305mm dry discReference

TypesynchromeshReference

Gears8 forward and 4 reverseReference

TransmissionDual PowerReference

Typepartial power shiftReference

Gears16 forward and 4 reverseReference

The Dual Power adds a shift-on-the-move to an under-speed on the basic 8/2 gear transmission.Reference

Typesynchromesh partial power shiftReference

Gears16 forward and 8 reverseReference

A shift-on-the-move under-speed added to the 8/4 synchromesh transmission.Reference

PTO & Hydraulics

PTO (claimed)46.2 kWReference

PTO (tested)46.7 kWReference

Hydraulic system56.8 LReference

Typeopen centerReference

Capacity56.8 LReference

Pressure172.4 barReference

Valves1Reference

Pump flow36.7 lpmReference

Pump flow68.9 lpmReference

Steering flow13.6 lpmReference

Rear TypeII/IReference

Controlposition and top-link draft controlReference

Rear lift (at 24"/610mm)1415 kgReference

Rear lift (at 24"/610mm)1832 kgReference

Rear PTOindependentReference

Rear PTO Type540Reference

Rear PTO Type540/1000Reference

Engine RPM540@1902Reference

Engine RPM1000@1902Reference

Power at rated PTO speed45.2 kWReference

Power at rated PTO speed44.7 kWReference

Capacities

Fuel79.5 LReference

Dimensions

2WD Wheelbase222 cmReference

4WD Wheelbase225 cmReference

Weight5695 to 6300 poundsReference

Front tire7.50-16Reference

Rear tire16.9-30Reference

Ag front7.50-16 (2WD)Reference

Ag front11.2-24 (4WD)Reference

Ag rear16.9-30Reference

Ag front7.50-18 (2WD)Reference

Ag front10.00-16 (2WD)Reference

Ag front12.4-24 (4WD)Reference

Ag front13.6-24 (4WD)Reference

Ag front14.9-24 (4WD)Reference

Ag rear18.4-30Reference

Ag rear16.9-34Reference

Ag rear18.4-34Reference

Ag rear15.5-38Reference

Ag rear16.9-38Reference

Length368 cmReference

Width174 cmReference

Height (ROPS)243 cmReference

Height (cab)270 cmReference

Ground clearance46 cmReference

Front tread132 to 204 cmReference

Rear tread152 to 203 cmReference

Rear tread142 to 228 cmReference

Shipping2583 kgReference

2WD ROPS Operating2857 kgReference

Ballasted4399 kgReference

Ford 5610 attachments

front-end loaderReference

5610 Serial Numbers

Location:Transmission, top rightReference

1982C682000Reference

1983C694500Reference

1984C707400Reference

1985C732600Reference

1986C750422Reference

1987C763288Reference

1988BB31777Reference

1989BB80620Reference

1990BC26239Reference

1991BC68791Reference

1992BD02482Reference

1993BD37479Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps32 (Series I)Reference

Charging amps51 (Series II ROPS)Reference

Charging amps75 (Series II Cab)Reference

Battery volts12Reference

Battery AH128Reference

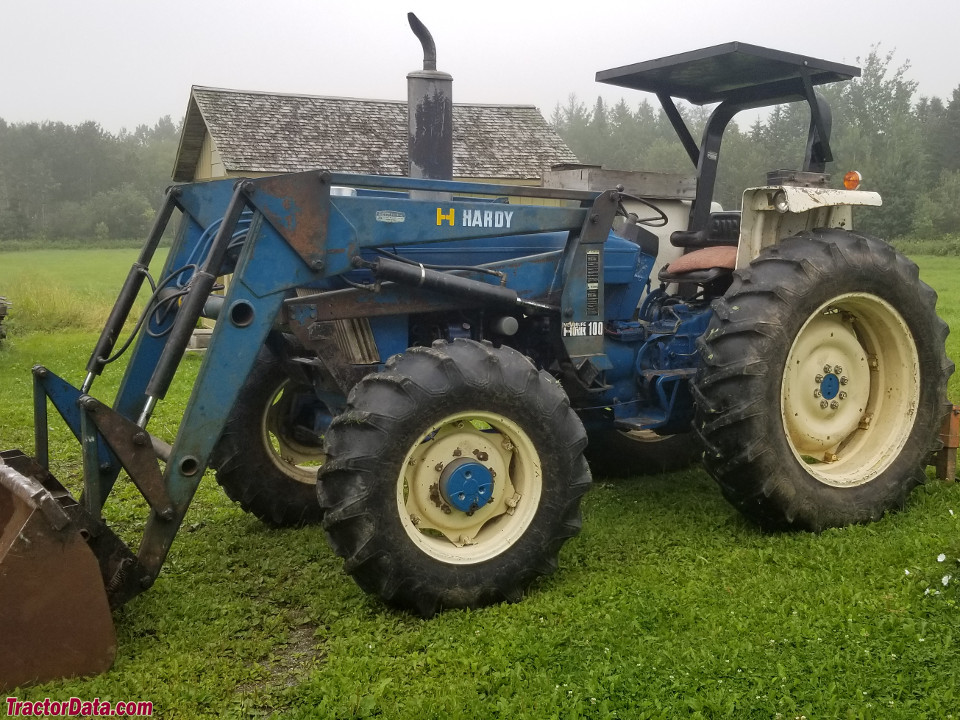

Attachment overview

Ford 777B loaderReference

Ford 777D loaderReference

Ford 777F loaderReference

Ford 7210 loaderReference

Three loaders were available. The 777B was available for two-wheel drive tractors. The 777D could be fitted to 2WD models with ROPS. The 777F loader fit four-wheel drive tractors with ROPS or cab.Reference

Test results

NTTL 1428: diesel 16x4 4WDReference

NTTL 1429: diesel 16x8 2WDReference

Diesel 16x4 4WDMarch 25 - April 19, 1982Link: Nebraska Tractor Test 1428 fileReference

PTO performanceReference

Fuel use15.9 l/hourReference

Fuel use14.8 l/hourReference

Drawbar performanceReference

Gear 6L used for power test.Reference

Max pull3360 kgReference

Gear 3L used for pull test.Reference

Diesel 16x8 2WDApril 5 - May 6, 1982Link: Nebraska Tractor Test 1429 fileReference

Fuel use15.5 l/hourReference

Max pull3437 kgReference

Gear 2H used for pull test.Reference

Speeds

With 18.4x34 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
