Tractor · 1992Unverified

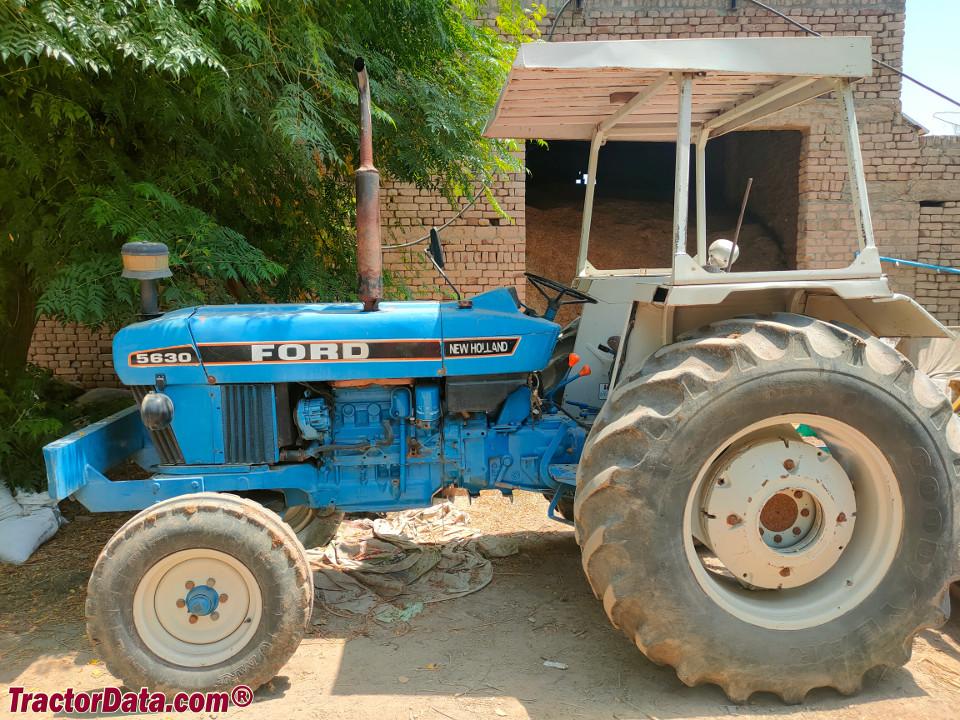

Ford 5630
Ford 5630 — 30 Superforça Series · 80 hp. Reference specifications; pending source verification.
The Ford 5630 is a tractor model with an 80 hp rated output, positioning it in the middle of its class for power. Manufactured from 1992 to 1997, this model features a 4-cylinder diesel liquid-cooled engine. The engine is coupled with a four-wheel drive system and an 8-speed gearbox. It is suited for tasks covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
80 hp
Catalogue coverage
Variants represented
2
Richest spec table
23 rows
Recorded power
80 hp
Transmissions
8-speed gear
Production years
1992-1997
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerFord (a part of New Holland)Reference
Utility tractorReference
Built in Curitiba, BrazilReference
Two- or four-wheel driveReference
Two-post ROPS.Reference
Engine
Ford 4.4L 4-cyl dieselReference
Engine59.7 kWReference
FordReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke112 x 112 mmReference
Power59.7 kWReference
Starter volts12Reference
Transmission
8-speed gearReference
TransmissionDual PowerReference
TypegearReference
Gears8 forward and 2 reverseReference
PTO & Hydraulics
Typeopen centerReference
Rear TypeIIReference
Rear PTOindependentReference
Rear PTO Type540Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
