Tractor · 1988Unverified

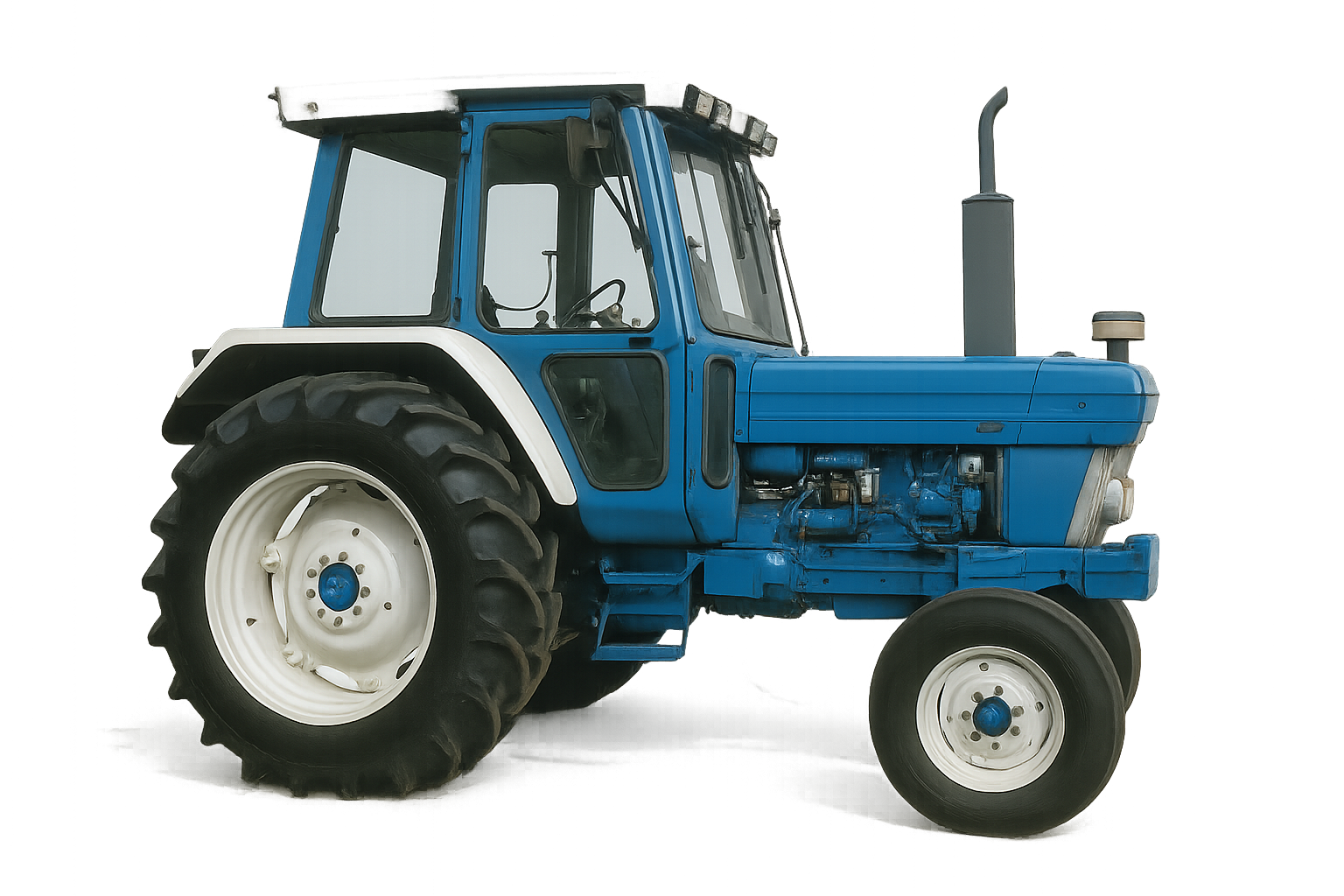

Ford 6410 Mark III
Ford 6410 Mark III — 10 Mark III Series · 80 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
80 hp
Weight
7540 to 8400 pounds
Hover a source tag to verify
Overview
ManufacturerFordReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Engine
Ford 4.4L 4-cyl dieselReference
Fuel tank106.0 LReference
Engine59.7 kWReference
FordReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke112 x 112 mmReference
Power59.7 kWReference
Rated RPM2070Reference
Torque295.1 NmReference
Torque RPM1200Reference
Starter volts12Reference
Transmission
16-speedReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
Pump flow68.9 lpmReference
Rear lift2570 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase221 cmReference
Weight7540 to 8400 poundsReference
Front tire10.00-16Reference
Rear tire16.9-34Reference
Ag front10.00-16 (2WD)Reference
Ag front13.6-24 (4WD)Reference
Ag rear16.9-34Reference
Length294 cmReference
Height270 cmReference
2WD Weight3420 kgReference
4WD Weight3810 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
