Tractor · 1992Unverified

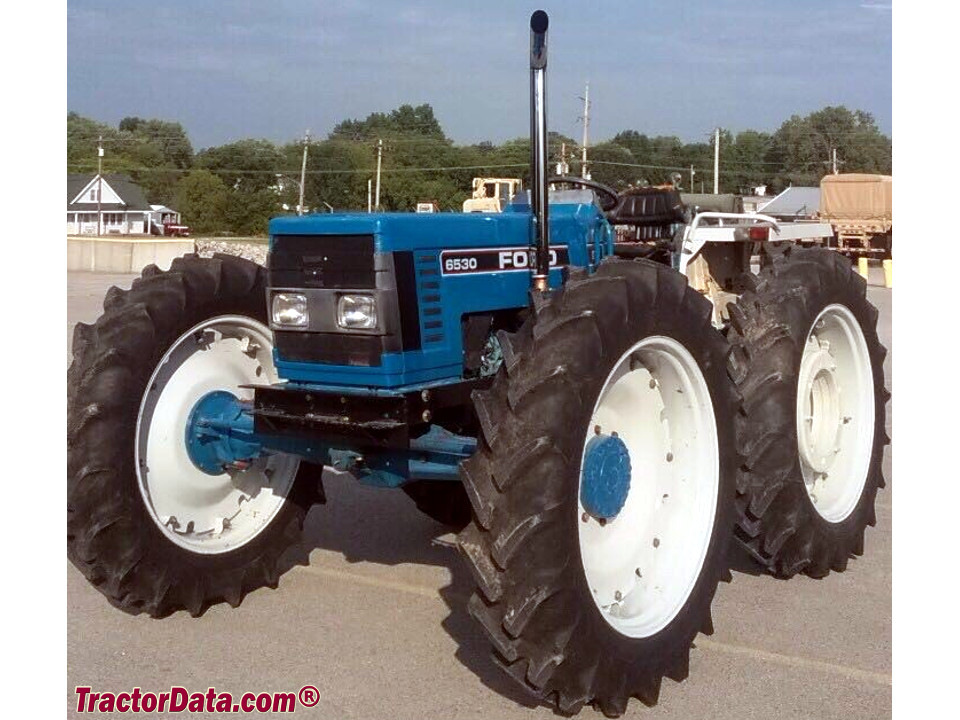

Ford 6530
Ford 6530 — High-Clearance tractor · 70 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
70 hp
Weight
5800 to 7400 pounds
Hover a source tag to verify
Overview
ManufacturerFordReference
High-Clearance tractorReference
Built in ItalyReference
Original price was $30,000 in 1997Reference
Two- or four-wheel driveReference
Disc brakesReference
Four-post ROPS.Reference
Engine
Fiat 3.9L 4-cyl dieselReference
Fuel tank73.1 LReference
Fiat 8045.05Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke104 x 115 mmReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Oil capacity11.4 LReference
Transmission
12-speed partially synchronizedReference
20-speed synchromeshReference
Typepartially synchronizedReference
Gears12 forward and reverseReference
Four gears in three ranges with mechanical shuttle.Reference
TypesynchromeshReference
Gears20 forward and 12 reverseReference
Optional transmission adds two creeper ranges.Reference
PTO & Hydraulics
PTO (claimed)52.2 kWReference
Typeopen centerReference
Valves1 to 3Reference
Pump flow41.6 lpmReference
Rear TypeIIReference
Rear lift2355 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
2WD Wheelbase210 cmReference
4WD Wheelbase204 cmReference
Weight5800 to 7400 poundsReference
Front tire7.50x18Reference
2WD Rear tire9.50x42Reference
2WD Standard tires (ag)Front: 7.50x18. Rear: 9.50x42Reference
4WD Standard tires (ag)Front: 13.6x38. Rear: 13.6x38Reference
2WD Length377 cmReference
4WD Length410 cmReference
Height (ROPS)276 cmReference
2WD Weight2630 kgReference
4WD Weight3356 kgReference
2WD Clearance (front axle)80 cmReference
4WD Clearance (front axle)63 cmReference
2WD Clearance (drawbar)63 cmReference
4WD Clearance (drawbar)65 cmReference
2WD Front tread154 to 205 cmReference
4WD Front tread167 to 218 cmReference
2WD Rear tread142 to 193 cmReference
4WD Rear tread142 to 187 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps33Reference
Battery volts12Reference
Speeds
With 13.6x38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
