Tractor · 1982Unverified
Ford 6610
Ford 6610 — 10 Series · 82 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
82 hp
Max power
45.5 kW
Weight
5695 to 7300 pounds
Hover a source tag to verify
Overview
ManufacturerFordReference
Utility tractorReference
Original price was $24,500 in 1993Reference

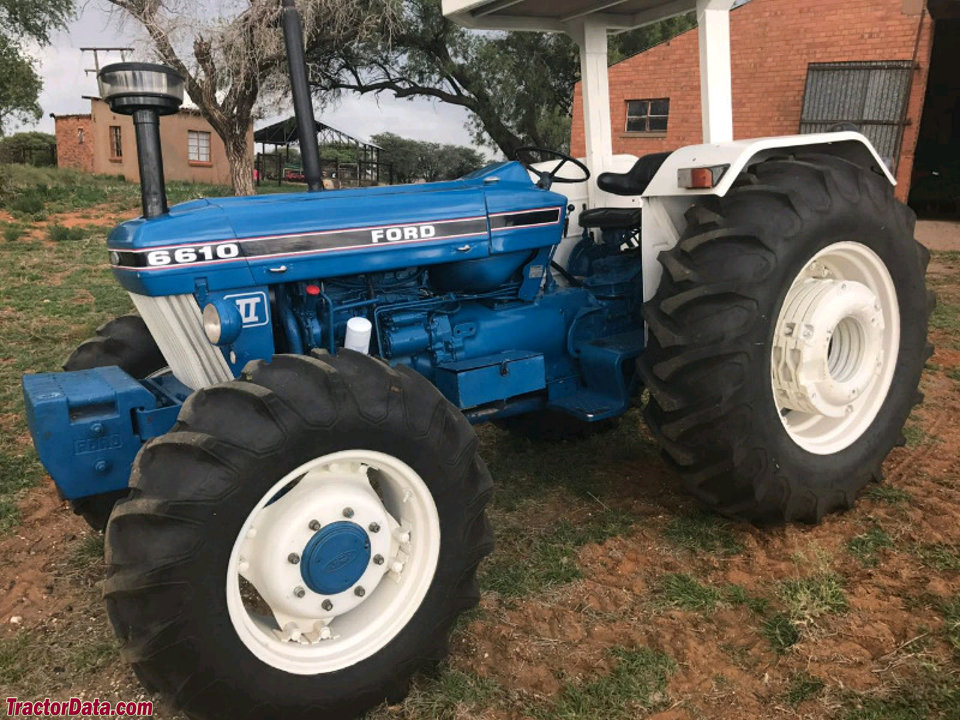

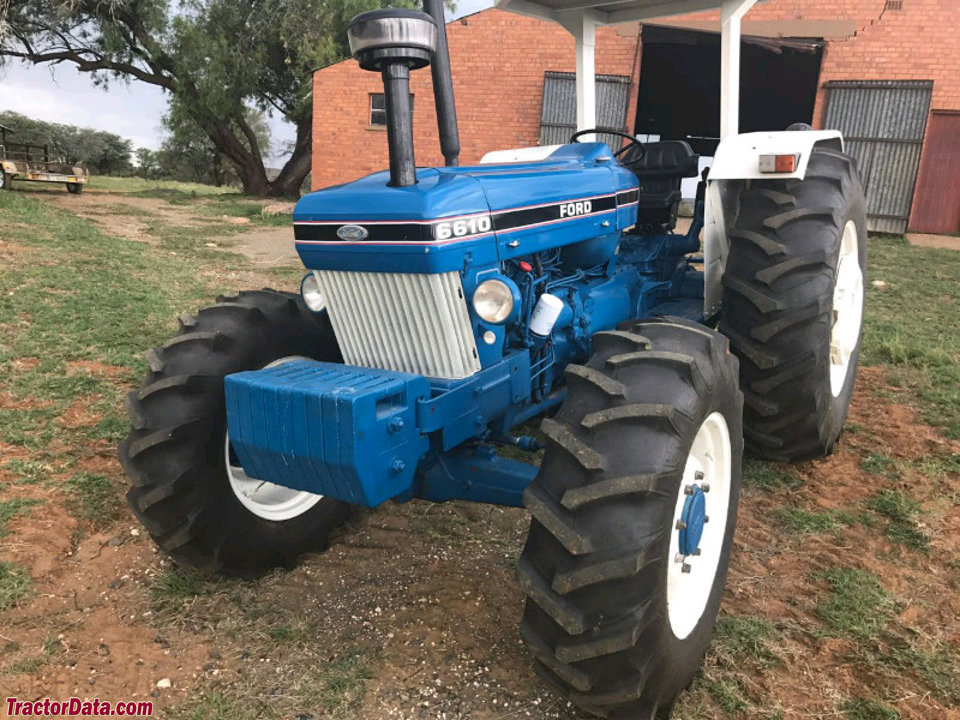

Ford 6610 tractors in the South African market were equipped with an ADE 236T diesel engine.Reference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Differential mechanical wet disc brakesReference

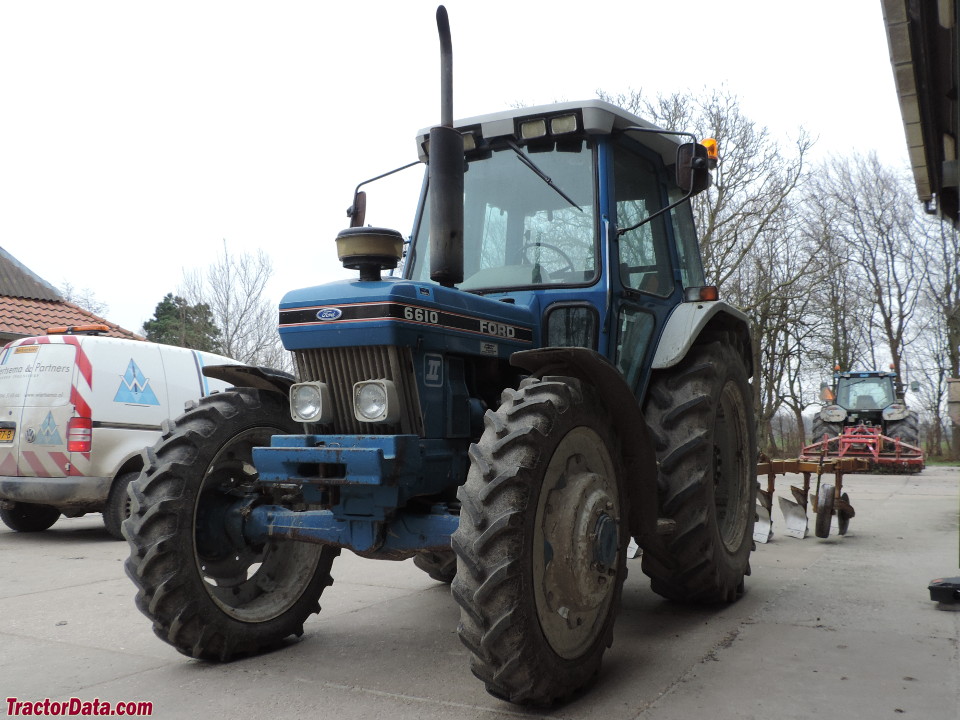

Two-post ROPS. Cab optional with air-conditioning.Reference
Variants
6610utilityReference
6610Olow-profileReference
6710row-cropReference
Engine
Ford 4.4L 4-cyl dieselReference
Engine (gross)61.1 kWReference
Engine58.5 kWReference
Drawbar (tested)45.8 kWReference
FordReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke112 x 112 mmReference
Power58.5 kWReference
Power (gross)61.1 kWReference
Air cleanerdual paper elementsReference
Compression16.3:1Reference
Rated RPM2100Reference
Torque297.0 NmReference
Starter volts12Reference
Oil capacity8.5 LReference
Coolant capacity12.8 LReference
Power at rated engine speed53.8 kWReference
Max power45.5 kWReference
Power at rated engine speed53.9 kWReference
Max power45.8 kWReference
Transmission
8-speedReference
8-speed synchromeshReference
16-speed partial power shiftReference
16-speed synchromesh partial power shiftReference
TransmissionDual-rangeReference
Gears8 forward and 2 reverseReference
Oil capacity53.0 LReference
TypesynchromeshReference
Gears8 forward and 4 reverseReference
TransmissionDual PowerReference
Typepartial power shiftReference
Gears16 forward and 4 reverseReference
The Dual Power adds a shift-on-the-move to an under-speed on the basic 8/2 gear transmission.Reference
Typesynchromesh partial power shiftReference
Gears16 forward and 8 reverseReference
A shift-on-the-move under-speed added to the 8/4 synchromesh transmission.Reference
PTO & Hydraulics
PTO (claimed)53.7 kWReference
PTO (tested)53.9 kWReference
Hydraulic system56.8 LReference
Typeopen centerReference
Capacity56.8 LReference
Pressure172.4 barReference
Valves1Reference
Pump flow36.7 lpmReference
Pump flow68.9 lpmReference
Steering flow13.6 lpmReference
Rear TypeIIReference
Rear lift (at 24"/610mm)1876 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Rear PTO Type540/1000Reference
Power at rated PTO speed50.9 kWReference
Power at rated PTO speed11.5 kWReference
Capacities
Fuel79.5 LReference
Dimensions
2WD Wheelbase222 cmReference
4WD Wheelbase225 cmReference
Weight5695 to 7300 poundsReference
Front tire7.50-16Reference
Rear tire16.9-30Reference
Ag front7.50-16 (2WD)Reference
Ag front11.2-24 (4WD)Reference
Ag rear16.9-30Reference
Ag front7.50-18 (2WD)Reference
Ag front10.00-16 (2WD)Reference
Ag front12.4-24 (4WD)Reference
Ag front13.6-24 (4WD)Reference
Ag front14.9-24 (4WD)Reference
Ag rear18.4-30Reference
Ag rear16.9-34Reference
Ag rear18.4-34Reference
Ag rear15.5-38Reference
Ag rear16.9-38Reference
2WD Length368 cmReference
4WD Length388 cmReference
Width174 cmReference
2WD Clearance (front axle)46 cmReference
4WD Clearance (front axle)45 cmReference
Clearance (rear axle)61 cmReference
2WD Front tread132 to 204 cmReference
4WD Front tread152 to 203 cmReference
Rear tread152 to 203 cmReference
Rear tread142 to 228 cmReference
Shipping2583 kgReference
2WD ROPS Operating3084 kgReference
4WD ROPS Operating3311 kgReference
Ballasted4399 kgReference
Steering wheel173 cmReference
Ford 6610 attachments
front-end loaderReference
6610 Serial Numbers
Location:On plate inside engine compartment and on right-front of transmission.Reference
1982C682000Reference
1983C694500Reference
1984C707400Reference
1985C732600Reference
1986C750422Reference
1987C763228Reference
1988BB31777Reference
1989BB80620Reference
1990BC26239Reference
1991BC77283Reference
1992BD05700Reference
1993BD37000Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps32 (Series I)Reference
Charging amps51 (Series II ROPS)Reference
Charging amps75 (Series II Cab)Reference
Battery volts12Reference
Battery AH128Reference
Attachment overview
Ford 777B loaderReference
Ford 777D loaderReference
Ford 777F loaderReference
Ford 7210 loaderReference
Three loaders were available. The 777B was available for two-wheel drive tractors. The 777D could be fitted to 2WD models with ROPS. The 777F loader fit four-wheel drive tractors with ROPS or cab.Reference
Ford 6610 Height
ROPS243 cmReference
Cab270 cmReference
Exhaust243 cmReference
Test results
NTTL 1430: diesel 16x4 4WDReference
NTTL 1431: diesel 16x8 2WDReference
Diesel 16x4 4WDApril 1 - 21, 1982Link: Nebraska Tractor Test 1430 fileReference
PTO performanceReference
Fuel use17.8 l/hourReference
Fuel use16.7 l/hourReference
Drawbar performanceReference
Fuel use17.0 l/hourReference
Gear 6L used for power test.Reference
Max pull3577 kgReference
Gear 3L used for pull test.Reference
Diesel 16x8 2WDApril 13 - May 4, 1982Link: Nebraska Tractor Test 1431 fileReference
Fuel use18.2 l/hourReference
Fuel use3.8 l/hourReference
Max pull3605 kgReference
Speeds
With 18.4x34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
