Tractor · 1982Unverified

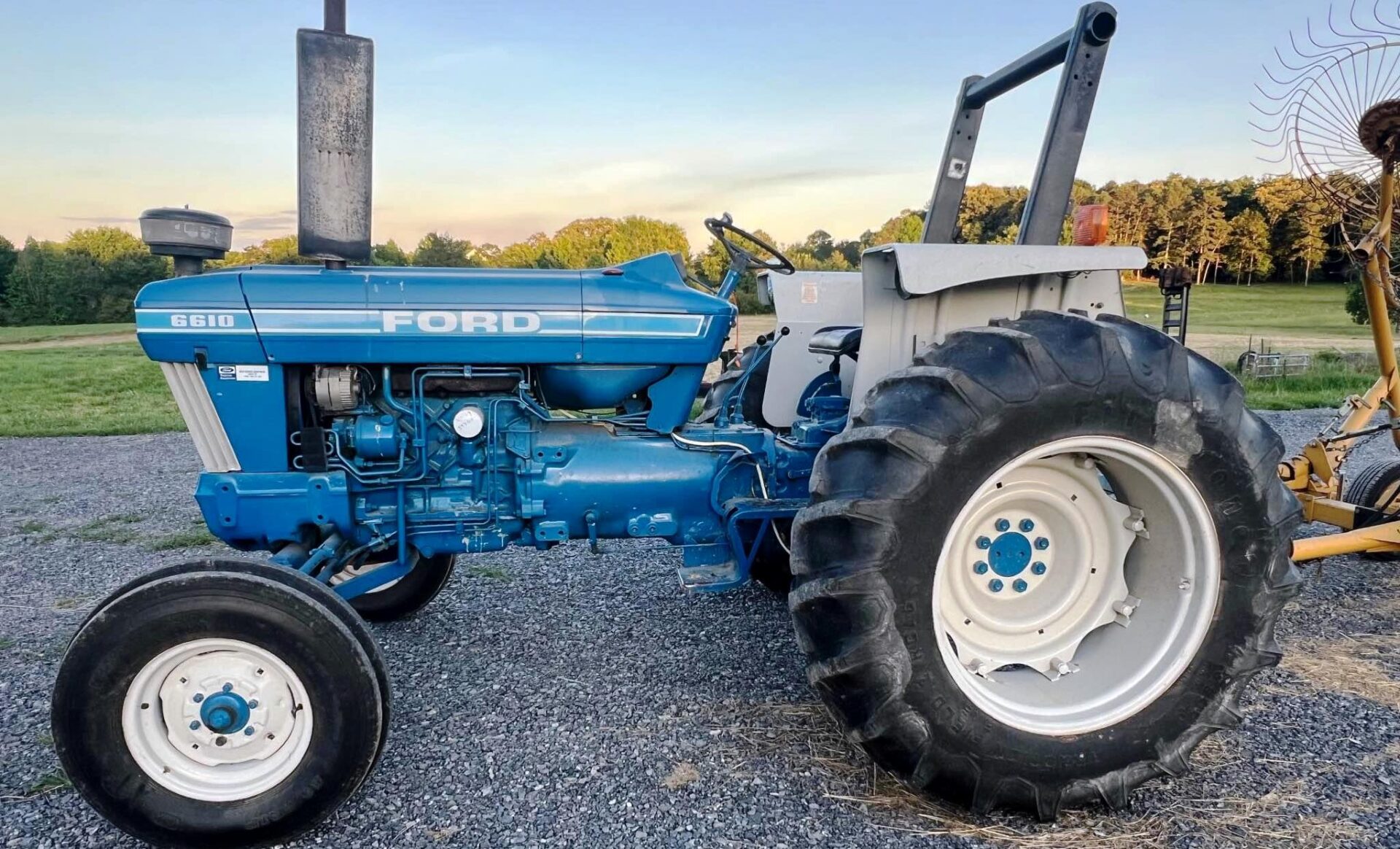

Ford 6610 Orchard
Ford 6610 Orchard — 10 Series · 84 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
84 hp
Weight
2674 kg
Hover a source tag to verify
Overview
ManufacturerFordReference
Orchard/Vineyard tractorReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Open operator station.Reference
Variants
6610utilityReference
6610Olow-profileReference
Engine
Ford 4.4L 4-cyl dieselReference
Engine (gross)62.6 kWReference
FordReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke112 x 112 mmReference
Power (gross)62.6 kWReference
Fuel systemdirect injectionReference
Pre-heatingthermostartReference
Compression16.3:1Reference
StarterelectricReference
Starter volts12Reference
Oil capacity8.5 LReference
Coolant capacity12.8 LReference
Transmission
8-speed gearReference
8-speed synchromeshReference
16-speed two-speed power shiftReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutch305mm dry discReference
Oil capacity53.0 LReference
TypesynchromeshReference
Gears8 forward and 4 reverseReference
TransmissionDual PowerReference
Typetwo-speed power shiftReference
Gears16 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)53.7 kWReference
Hydraulic system53.0 LReference
Typeopen centerReference
Capacity53.0 LReference
Pressure144.8 barReference
Pump flow68.9 lpmReference
Steering flow13.6 lpmReference
Rear TypeII/IReference
Controlposition and top-link draft controlReference
Rear lift (at 24"/610mm)1832 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Engine RPM540@1902Reference
Capacities
Fuel79.5 LReference
Dimensions
Wheelbase221 cmReference
Weight2674 kgReference
Front tire7.50x16Reference
Rear tire16.9x24Reference
Standard tires (ag)Front: 7.50x16. Rear: 16.9x24Reference
Length328 cmReference
Width179 cmReference
Height (steering wheel)167 cmReference
Height (hood)238 cmReference
Shipping weight2674 kgReference
Clearance (front axle)38 cmReference
Clearance (rear axle)26 cmReference
Front tread132 to 203 cmReference
Rear tread137 to 198 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps52Reference
Battery volts12Reference
Battery AH128Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
