Tractor · 1994Unverified

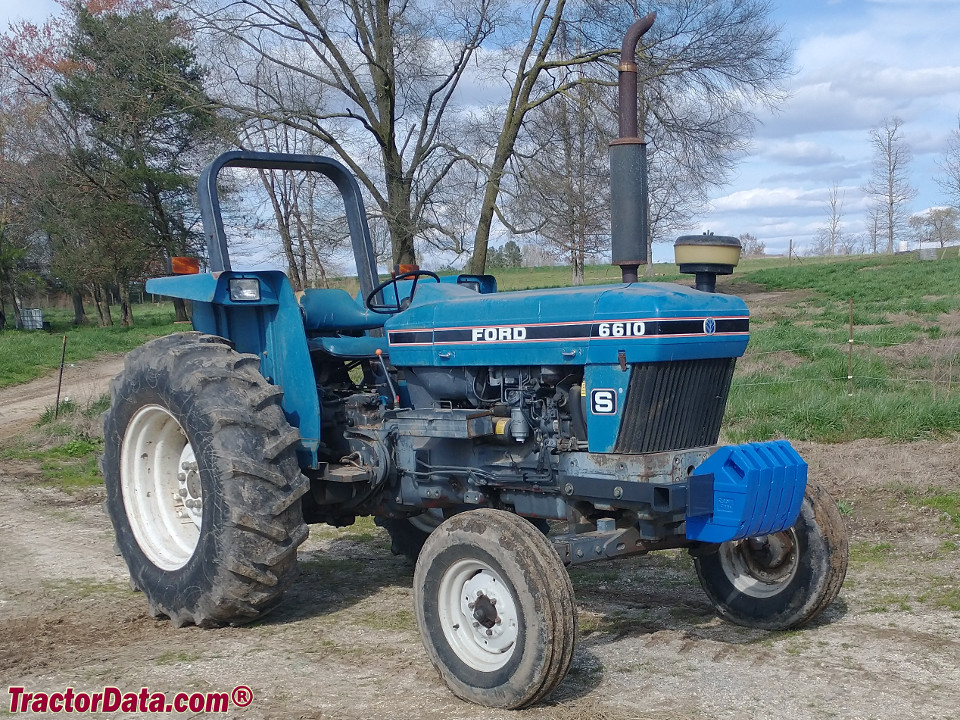

Ford 6610S

Name: Ford 6610S
Brand: Ford

Ford 6610S — 10S Series · 76 hp. Reference specifications; pending source verification.

The Ford 6610S is a tractor model rated at approximately 76 hp, falling within the mid-range of its class. Produced between 1994 and 2003, it features a 4-cylinder diesel liquid-cooled engine and four-wheel drive with an 8-speed gearbox. The operating weight ranges from 5695 to 6335 pounds, and it is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

76 hp

Weight

5695 to 6335 pounds

Catalogue coverage

Variants represented

Richest spec table

77 rows

Recorded power

76 hp

Recorded weight

2583 kg

Transmissions

8-speed unsynchronized gear

Production years

1994-2003

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerFordReference

Utility tractorReference

Built in Queretaro, MexicoReference

Original price was $28,500 in 2000Reference

Two- or four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post ROPS.Reference

Engine

Ford 5.0L 4-cyl dieselReference

Engine63.4 kWReference

FordReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement5.0 LReference

Bore/Stroke112 x 127 mmReference

Power63.4 kWReference

Compression17.5:1Reference

Rated RPM2200Reference

Firing order1-3-4-2Reference

Starter volts12Reference

Oil capacity11.4 LReference

Coolant capacity13.0 LReference

Intake valve clearance0.406 mmReference

Exhaust valve clearance0.483 mmReference

Transmission

8-speed unsynchronized gearReference

Typeunsynchronized gearReference

Gears8 forward and 2 reverseReference

Four gears, plus reverse, in two ranges. Tractor must be stopped, and clutch used, before shifting gear or range.Reference

PTO & Hydraulics

PTO (claimed)56.7 kWReference

Typegear pumpReference

Pressure172.4 barReference

Valves2Reference

Pump flow36.7 lpmReference

Steering flow36.3 lpmReference

Steering cap.2.2 LReference

Rear TypeIIReference

Controlposition control with top-link draft sensingReference

Rear lift1832 kgReference

Rear PTOindependentReference

Rear PTO Type540Reference

Engine RPM540@1900Reference

Capacities

Fuel81.4 LReference

Fuel50.0 LReference

Steering2.2 LReference

Dimensions

2WD Wheelbase222 cmReference

4WD Wheelbase225 cmReference

Weight5695 to 6335 poundsReference

Front tire7.50-16Reference

Rear tire16.9-30Reference

Ag front7.50-16 (2WD)Reference

Ag front14.9x24 (4WD)Reference

Ag rear16.9-30Reference

2WD Length368 cmReference

4WD Length388 cmReference

Height (ROPS)243 cmReference

2WD Weight2583 kgReference

4WD Weight2873 kgReference

2WD Ground clearance46 cmReference

4WD Ground clearance45 cmReference

6610S Serial Numbers

Location:Serial number decal inside the hood panel.Reference

1994ZX35000Reference

1995351863MReference

1996353483MReference

1997354758MReference

1998358416MReference

1999361105MReference

2000363210MReference

2001365619MReference

2002368034MReference

2003371020MReference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps55Reference

Charging volts12Reference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
