Tractor · 1977Unverified

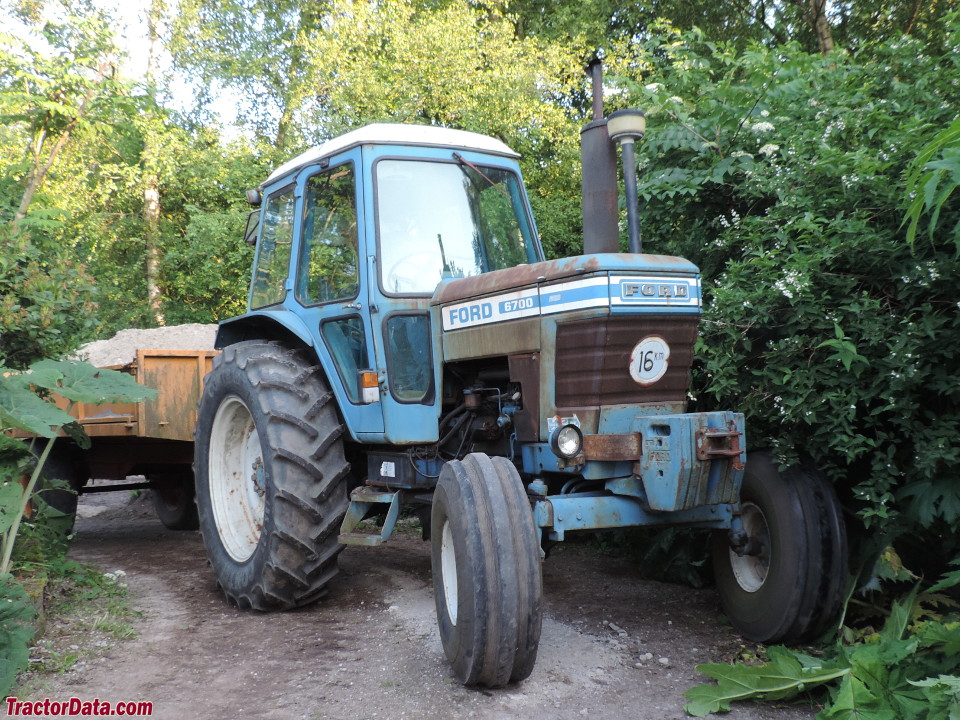

Ford 6700
Ford 6700 — Row-Crop tractor · 76 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
76 hp
Max power
41.5 kW
Weight
6900 to 8510 pounds
Hover a source tag to verify
Overview
ManufacturerFordReference
Row-Crop tractorReference
Original price was $22,000 in 1981Reference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockmechanical rearReference
Power steeringReference
Open operator station. Cab optional with available heater and air-conditioning.Reference
Variants
6600utility chassisReference
6700row-crop chassisReference
Engine
Ford 4.2L 4-cyl dieselReference
Ford 4.4L 4-cyl dieselReference
Fuel tank106.0 LReference
Fuel tank177.9 LReference
Engine (gross)56.3 kWReference
Engine (net)54.1 kWReference
Drawbar (tested)41.9 kWReference
FordReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke112 x 107 mmReference
Power (net)54.1 kWReference
Power (gross)56.3 kWReference
Air cleaneroil bathReference
Compression16.3:1Reference
Rated RPM2100Reference
Torque271.2 NmReference
Torque RPM1400Reference
Starter volts12Reference
Oil capacity8.5 LReference
Coolant capacity13.7 LReference
Coolant capacity19.4 LReference
liquid-cooled inlineReference
The larger Ford Blue Power Special was available in 1981 only. Advertised power performance was the same as the 4.2L.Reference
Displacement4.4 LReference
Bore/Stroke112 x 112 mmReference
Power at rated engine speed52.6 kWReference
Max power41.5 kWReference
Power at rated engine speed51.4 kWReference
Max power41.9 kWReference
Transmission
8-speed gearReference
16-speed two-speed power shiftReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutch305mm dry discReference
TransmissionDual-PowerReference
Typetwo-speed power shiftReference
Gears16 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)52.2 kWReference
PTO (tested)52.6 kWReference
Typeopen centerReference
Pressure144.8 barReference
Valves1 or 2Reference
Pump flow36.7 lpmReference
Rear TypeIIReference
Controltop-link draft sensingReference
Rear lift1832 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM1000@2060Reference
Power at rated PTO speed52.3 kWReference
Power at rated PTO speed51.2 kWReference
Dimensions
Wheelbase258 cmReference
Wheelbase217 cmReference
Weight6900 to 8510 poundsReference
Front tire7.50-16Reference
Rear tire16.9-38Reference
Ag front7.50-16Reference
Ag rear16.9-38Reference
Length386 cmReference
Clearance (front axle)50 cmReference
Clearance (front axle)60 cmReference
Front tread148 to 219 cmReference
Front tread132 to 203 cmReference
Rear tread142 to 203 cmReference
Rear tread142 to 228 cmReference
Shipping3129 kgReference
Operating3860 kgReference
Ballasted4395 kgReference

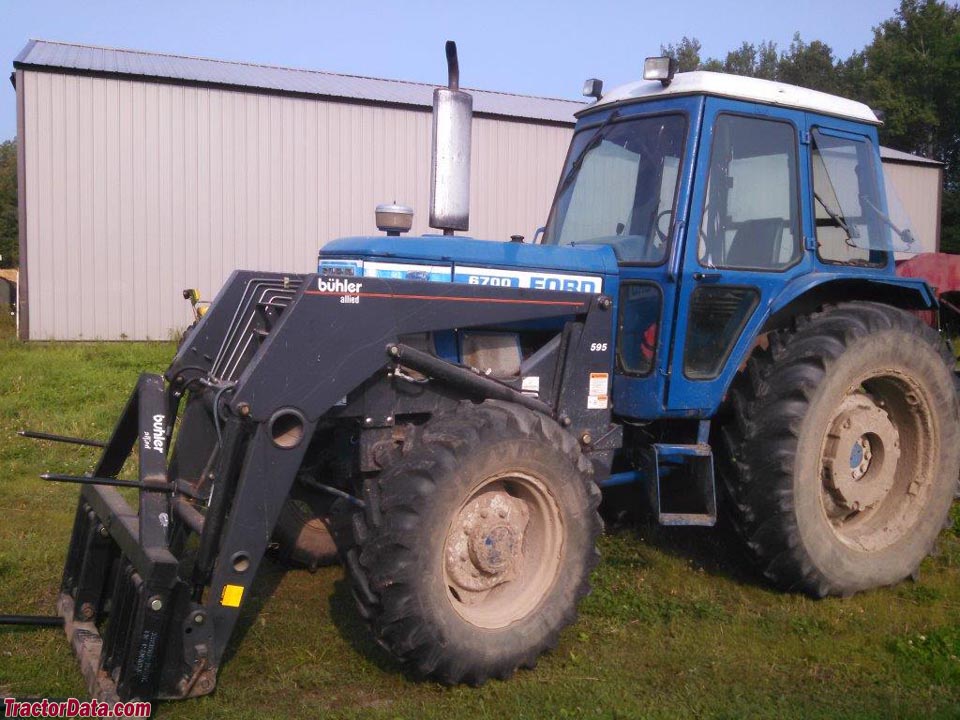

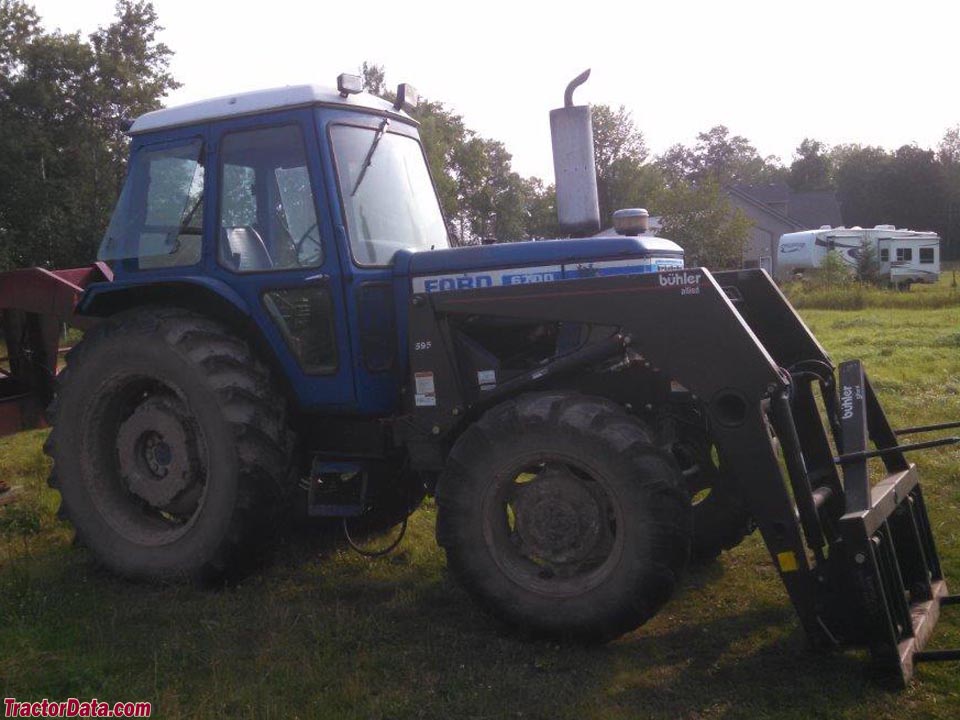

Ford 6700 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps32Reference
Charging amps51Reference
Battery volts12Reference
Battery AH128Reference
Attachment overview
Ford 772 loaderReference
Ford 774 loaderReference
Ford 772QT loaderReference
Ford 6700 Height
Hood197 cmReference
Cab288 cmReference
Exhaust299 cmReference
Test results
NTTL 1217: diesel 8-speed 2WDReference
NTTL 1244: diesel 16-speed 2WDReference
Diesel 8-speed 2WDJune 14 - 23, 1976Link: Nebraska Tractor Test 1217 fileReference
PTO performanceReference
Fuel use17.4 l/hourReference
Fuel use17.0 l/hourReference
Drawbar performanceReference
Gear 4 used for power test.Reference
Max pull3234 kgReference
Gear 2 used for pull test.Reference
Diesel 16-speed 2WDJune 20 - 24, 1977Link: Nebraska Tractor Test 1244 fileReference
Fuel use19.3 l/hourReference
Fuel use18.9 l/hourReference
Gear 8 used for power test.Reference
Max pull3078 kgReference
Gear 5 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
