Tractor · 1982Unverified

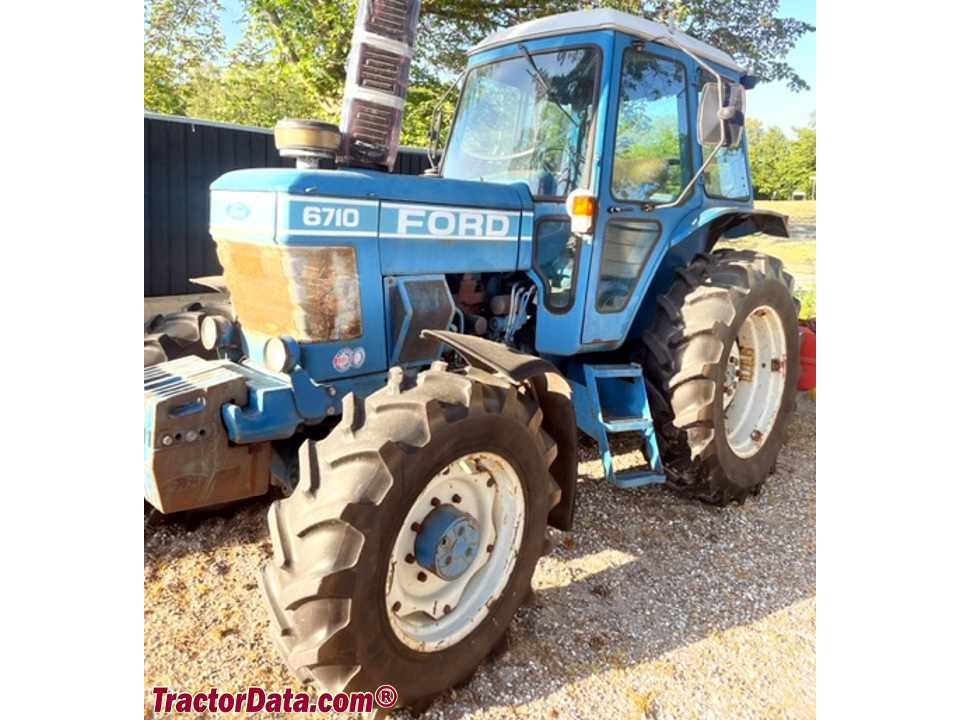

Ford 6710
Ford 6710 — 10 Series · 82 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
82 hp
Max power
45.5 kW
Weight
2877 kg
Hover a source tag to verify
Overview
ManufacturerFordReference
Row-Crop tractorReference
Two- or four-wheel driveReference
Power steeringReference
Differential mechanical wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Variants
6610utilityReference
6710row-cropReference
Engine
Ford 4.4L 4-cyl dieselReference
Engine (gross)61.1 kWReference
Engine58.5 kWReference
Drawbar (tested)45.8 kWReference
FordReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.4 LReference
Bore/Stroke112 x 112 mmReference
Power58.5 kWReference
Power (gross)61.1 kWReference
Compression16.3:1Reference
Rated RPM2100Reference
Torque297.0 NmReference
Starter volts12Reference
Oil capacity8.5 LReference
Coolant capacity13.7 LReference
Power at rated engine speed53.8 kWReference
Max power45.5 kWReference
Power at rated engine speed53.9 kWReference
Max power45.8 kWReference
Transmission
16-speed partial power shiftReference
16-speed synchromesh partial power shiftReference
TransmissionDual PowerReference
Typepartial power shiftReference
Gears16 forward and 4 reverseReference
The Dual Power adds a shift-on-the-move to an under-speed on the basic 8/2 gear transmission.Reference
Typesynchromesh partial power shiftReference
Gears16 forward and 8 reverseReference
A shift-on-the-move under-speed added to the 8/4 synchromesh transmission.Reference
PTO & Hydraulics
PTO (claimed)53.7 kWReference
PTO (tested)53.9 kWReference
Hydraulic system56.8 LReference
Typeopen centerReference
Capacity56.8 LReference
Valves1Reference
Pump flow36.7 lpmReference
Steering flow13.6 lpmReference
Steering press.172.4 barReference
Rear TypeIIReference
Rear lift (at 24"/610mm)1876 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Rear PTO Type540/1000 (optional)Reference
Power at rated PTO speed50.9 kWReference
Power at rated PTO speed11.5 kWReference
Capacities
Fuel106.0 LReference
Dimensions
Wheelbase258 cmReference
Weight2877 kgReference
Front tire7.50-16Reference
Rear tire15.5-38Reference
Ag front7.50-16 (2WD)Reference
Ag front11.2-24 (4WD)Reference
Ag rear15.5-38Reference
Ag front7.50-15 (2WD)Reference
Ag front7.50-18 (2WD)Reference
Ag front10.00-16 (2WD)Reference
Ag front13.6-24 (4WD)Reference
Ag front14.9-24 (4WD)Reference
Ag rear18.4-30Reference
Ag rear16.9-34Reference
Ag rear18.4-34Reference
Ag rear16.9-38Reference
Length387 cmReference
Width195 cmReference
Height (ROPS)281 cmReference
Height (cab)291 cmReference
Shipping weight2877 kgReference
Ballasted weight4399 kgReference
Ground clearance52 cmReference
Ground clearance62 cmReference
Front tread148 to 219 cmReference
Rear tread152 to 203 cmReference
Rear tread142 to 228 cmReference
Ford 6710 attachments
front-end loaderReference
6710 Serial Numbers
Location:On plate inside engine compartment and one right-front of transmission.Reference
1982C681910Reference
1983C695880Reference
1984C713459Reference
1985C737800Reference
1986C754100Reference
1986BA80100Reference
1987C768000Reference
1987BB06622Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps32Reference
Battery volts12Reference
Battery AH128Reference
Attachment overview
Ford 777B loaderReference
Ford 777D loaderReference
Ford 777F loaderReference
Three loaders were available. The 777B was available for two-wheel drive tractors. The 777D could be fitted to 2WD models with ROPS. The 777F loader fit four-wheel drive tractors with ROPS or cab.Reference
Test results
NTTL 1430: diesel 16x4 4WDReference
NTTL 1431: diesel 16x8 2WDReference
Diesel 16x4 4WDApril 1 - 21, 1982Link: Nebraska Tractor Test 1430 fileReference
PTO performanceReference
Fuel use17.8 l/hourReference
Fuel use16.7 l/hourReference
Drawbar performanceReference
Fuel use17.0 l/hourReference
Gear 6L used for power test.Reference
Max pull3577 kgReference
Gear 3L used for pull test.Reference
Diesel 16x8 2WDApril 13 - May 4, 1982Link: Nebraska Tractor Test 1431 fileReference
Fuel use18.2 l/hourReference
Fuel use3.8 l/hourReference
Max pull3605 kgReference
Speeds
With 18.4x34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
